Product: Single mode Gigabit SFP fiber converter
Gigabit Ethernet optical Media Converter is used for optical transmission via high-speed Ethernet.The SFP media converter are capable of converting 1000 Base-Tx to 1000Base-FX,extend network distance.
The SFP ethernet media converter allows flexible network configuration by using SFP transceiver modules.The SFP slot supports single-mode, multi-mode and WDM small-form factory type transceiver modules for various applications.

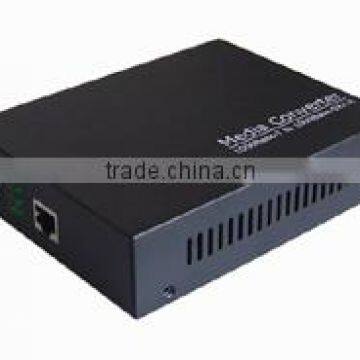

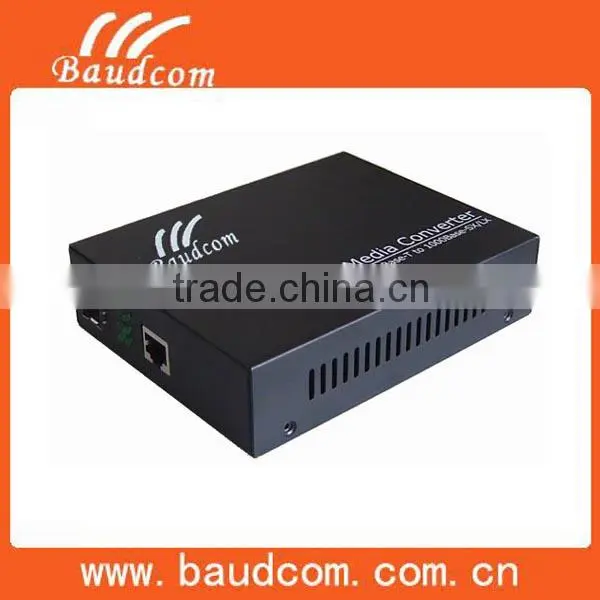

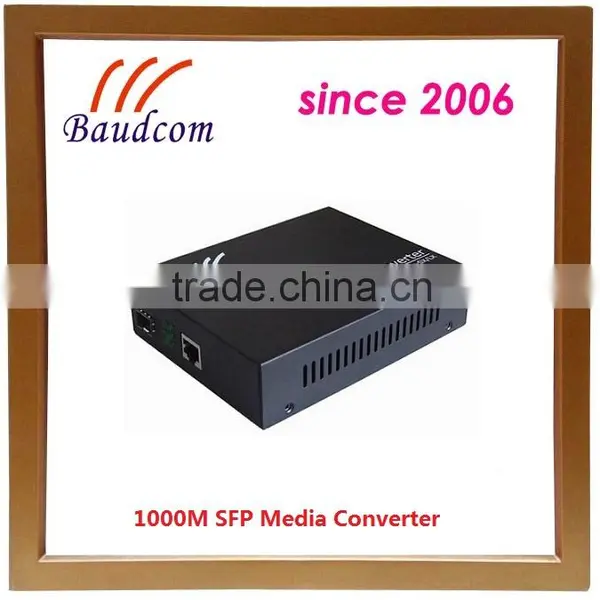

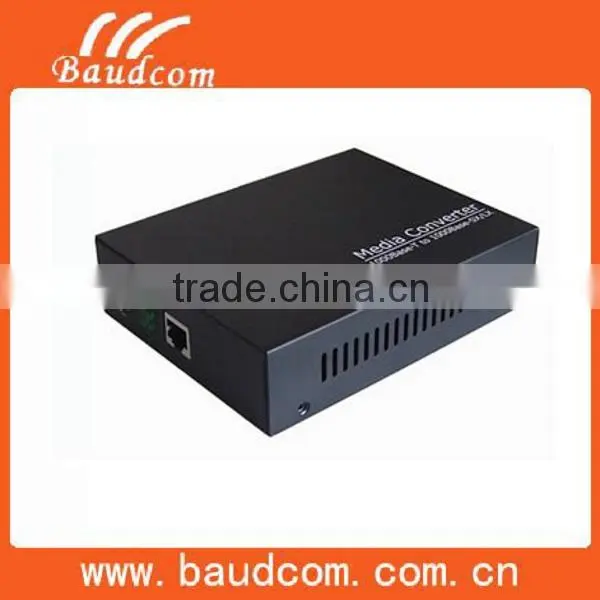

SFP 1000M Media Converter picture:
- conforms to IEEE802.3, IEEE802.3u (10Base-T, 100Base-TX, 100BaseT-FX) international standard;
- brings 1M buffer, supports 2KMAC address;
- isolates network conflict and broadcasting package effectively, has the function of preventing broadcasting storm;
- supports 802.1Q and 16 groups of VLAN;
- multi- mode connection: transmitting range can reach 550 meters as farthest;
- single-mode connection: transmitting range can reach 80 kilometers.
Product characteristic:
international standard: IEEE802.3z, 1000Base-SX/LX
IEEE802.3ab 1000Base-T;
Ethernet 10/100/1000M auto-adaptable;
Interface: 10/100/1000Base-T: RJ45
1000Base-T: EIA/TIA-568 Cat5, 100 meters;
1000Base-LX: 62.5/125?m multi-mode fiber, can reach 550 meters
9/125?m single-mode fiber, can reach 10-80Km
environment condition Dimension
Operating temperature: 0C~+50 C 118(W) × 70 (L) x 27(H) mm
Storage temperature: -20 C~+70 C
Relative temperature:95% (uncondensed)
Power supply
working voltage range wide, good
anti-disturb and Isolation, work stable
option I - DC-48V,range DC-36V~DC-72C
option I - AC220,range AC160V~AC240V
Application Field:
For intranet prepared for expansion from 100M to 1000M
For integrated data network for multimedia such as image, voice and etc.
For point-to-point computer data transmission
For computer data transmission network in a wide range of business application
For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks
order information:
| BD-1000M-GSFP/AC | SFP Gigabit Ethernet media converter,10/100/1000Mbps,one SFP slot,power AC 220V |
| BD-1000M-GSFP/DC | SFP Gigabit Ethernet media converter,10/100/1000Mbps,one SFP slot,power DC 48V |
| SFP module | BDTRP413L1SN-20,1.25G/1000M,duale fiber,single mode,20KM |
| SFP module | single fiber (WDM),single mode,20km |
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certification
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
