Product: single mode 100M SFP optical converter
Overview:
The Baudcom BD-100M-SFP is a 2Port SFP Media Converter which supports conversion between 10 / 100Base-TX and 100Base-FX network.The SFP media converter extend the distance of the existing network by converter the copper ethernet over fiber transmission.
The SFP ethernet media converter allows flexible network configuration by using SFP transceiver modules.The SFP slot supports single-mode, multi-mode and WDM small-form factory type transceiver modules for various applications. The BD-100M-SFP media converter can extend the distance up to 2km, 20km or longer which depends on the 100Base-FX SFP transceiver modules.
Features:
- complies with IEEE 802.3, IEEE 802.3u 10 / 100Base-TX and 100Base-FX
- one 100Base-FX SFP Slot
- One 10 / 100Base-TX Copper ethernet
- High performance data transmission;
- Wide dynamic range of IP data packet;
- Comprehensive LED support;
- Standard Single fiber, transmission distance up to 80Km;
- Auto Half/Full Duplex data mode;
- Auto MDI/MDIX provides automatic cross
-
Product parameter:
Optical interface: SFP
Ethernet interface: RJ-45 (coaxial twisted pair)
Support IEEE802.3 10 Base-T, IEEE802.3u 100Base-TX and 100Base-FX
Ethernet connector:
10/100Base-TX: UTP RJ45 connector
100Base-FX:LC connector or SC connector
Cable type: non-shielded 5 class cable Cat.5UTP, can transmit 100 meters
Optical fiber category:
single-mode 8.3/125, 8.7/125, 9/125, 10/125um,transmit distance20km~120km
multi-mode 50/125, 62.5/125, 100/140um, transmit distance 0~2km
environment condition Dimension
Operating temperature: 0C~+50 C 118(W) × 70 (L) x 27(H) mm
Storage temperature: -20 C~+70 C
Relative temperature:95% (uncondensed)
Power supply
working voltage range wide, good
anti-disturb and Isolation, work stable
option I - DC-48V,range DC-36V~DC-72C
option I - AC220,range AC160V~AC240V
Orderinformation:
| BD-100M-SFP | SFP media converter,10/100M ethernet,one SFP slot,AC 220V or DC-48V |

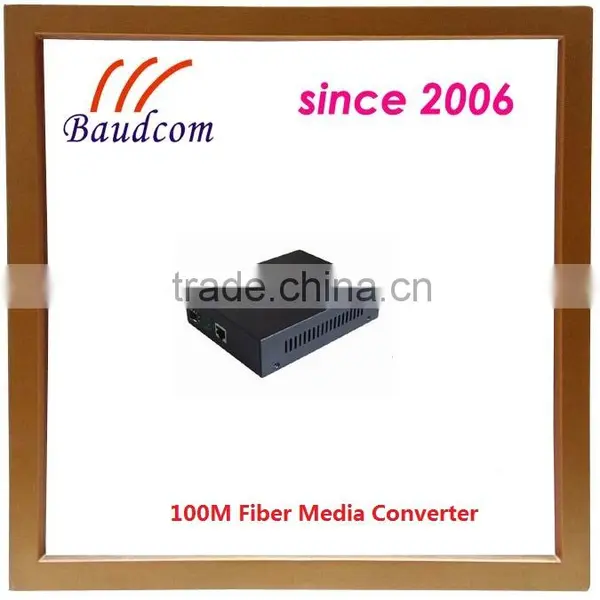

100M SFP Media Converter Picture:
100M SFP Media Converter Application Diagram:
Certifications
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
