Product: 24-port SFP Switch
Overview:
The 24-port SFP Switch provides 24 optical fibers ports and 2 Gigabit TP/SFP ports.It is one of the best optical access solution for fiber to building and Home,which is based on cost-effective and stable performance.base on cost-effective and stable performance. The 24-port SFP Switch is equipped with web interface and can be programmed for basic switch management functions such as port configuration, VLAN, port mirroring, Qos, bandwidth control, IGMP snooping and misc configuration.
Features:
2.1 Physical ports
- 24ports 100Base-FX optical fibers
- 2ports Gigabit TP Combo SFP
2.2 Management Features
- Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3z and IEEE 802.3ab Gigabit Ethernet standard
- Each Gigabit TP ports support auto-negotiation-10/20, 100/200, 1000/2000Mbps supported, Auto-MDI/MDI-X detection on each RJ-45 port
- Prevents packet loss with back pressure (Half-Duplex) and 802.3x
- PAUSE frame Flow Control (Full-Duplex)
- High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth 4K MAC address table, automatic source address learning and ageing
- Port-Based VLAN and IEEE 802.1Q Tagged VLAN
- Static Port Trunk
- IGMP snooping v1 and v2 for Multi-media application
- Broadcast storm filter
- Port mirroring allows monitoring of the traffic across any port in real time
2.3 Quality of Service (QoS)
- Supports QoS and bandwidth control on each port
- IEEE 802.1p class of service ; support Strict and
- TCP/UDP Port Based QoS
2.4 Security
- MAC Address Filter
- IP Address Filter
- TCP/UDP Filter
2.5 Management
- Web interface for Switch basic management and
- LED indicators for easy network diagnose
- Firmware upgrade by HTTP file transfer protocol through Ethernet network
- Reset Button for system reset and reset to factory default
- EMI standards comply with FCC, CE class A
Specification:
| Dimension | 19" width,1U high, Rack mountable | |
| Enviornment Requirement | Working Temperature | 0C ~ 50C |
| Store Temperature | -30C ~ 70C | |
| Relative Humidity | 95%(without coagulation) | |
| Power | Adapting module power, voltage range can be wide, with strong ant-jamming function | |
| With good insulation, stable working status is available | ||
| Power Option I | -48V type, input voltage: -36V~-72V | |
| Power Option II | 220V type, input voltage: 165V~265V | |

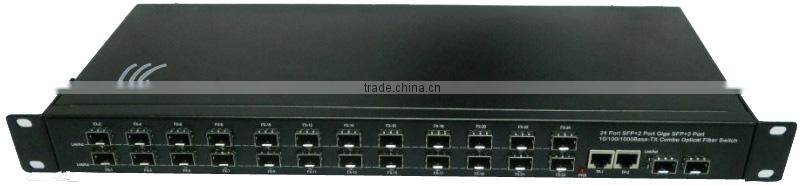

24-port SFP Switch Picture:
