8port POE Switch

8port POE Switch thumbnail-1
8port POE Switch photo-1
US$ 190 - 310 MOQ: 1 Unit
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≤ 8
Transmission Rate:
10/100Mbps
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
8port POE Switch will be shipped to Shanghai harbor
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, ≤ 8
Transmission Rate 10/100Mbps
Function LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode Other, Full-Duplex & Half-Duplex
Certification CE/ ROHs/ FCC
Switch Capacity 8Gbps
Brand Name Baudcom
Model Number BD-S2108POE
Place of Origin Shanghai, China

Product: 8port POE Switch



Overview:

The 8port POE Switch is a modularized hi-performance workgroup-level or enterprise-scale switch, with 8 Fast Ethernet ports and 1 port 10/100/1000M TX/Gigabit SFP for Gigabit connections. 8port POE Switch can connect all (Fast) Ethernet devices so that your investment is protected. The hi-speed connection it provides among workgroups can boost the capability of server clusters, and solves the bottleneck caused by increasing users and limited bandwidth, making network resources more readily available to you. More importantly, all of the advantages are brought to you by BAUDCOM at low costs and with easy maintenance.



Application:

  • Hi-performance inter-workgroup or enterprise-edge switching

Features:

Performance

  • 8Gbps switch fabric, non-congestion design, all wire-speed forwarding
  • 80-km transfer by Gigabit optical fiber, direct connection to WAN

Security and reliability

  • Quota system for connected hosts per port
  • IEEE 802.1x port-based user authentication
  • Port trunking adds to bandwidth and redundancy
  • Confirm to FCC class A,CE standard

Easy maintenance

  • Automatic recognition for straight-through or cross-over cables
  • Stackable physically and through cluster technology. Central management with unified IP address saves IP addresses
  • Management via CONSOLE port, Web, SNMP, Telnet, etc.
  • Software and BootRom upgrade through TFTP

Traffic and broadcast control

  • Auto-detection and restraining of broadcast storm, IGMP snooping, effectively restrict broadcast flooding
  • Full- and half- duplex traffic control
  • Ethernet port rate limiting with 64 K step size(1 M step size for rate over 1.8 M)
  • Advanced buffer management, 802.1p support. 4 dispatching queues per port, mapping the 8 priority queues in 802.1p
  • QoS support



Specification:



BD-S2108POE

Port & Slot

8 * 10/100M POE TX

1 * GSFP/TX Combo

1 * Console Port

Switch Fabric

8Gbps

Forwarding Rate

All wire-speed forwarding and filtering

Switching Mode

Store-and-forward

MAC Address Table Size

4K

Queuing Buffer

32 MB

Dimensions (L*W*H) (mm)

340*200*44

Power Input

AC 100~240 V, 47 ~ 63 Hz, 1A/230V

LED Indicators

Power, system, link, activity, 10/100M

Temperature

Operating: 0 ~ 50°C, non-operating: -40 ~ 70°C

Humidity

0 ~ 90% (no condensing)

Functions:

Spanning Tree

IEEE 802.1D STP, link path backup, IEEE 802.1w RSTP, IEEE802.1s MSTP

VLAN

Port-based VLAN, 802.1Q tag VLAN, GVRP, port isolation at per VLAN, QinQ

VLAN Number

4K, partition at will

Traffic Control

Back pressure at half-duplex, 802.3x at full-duplex, port rate limiting: 64 K step size

Storm Control

Stop sending at threshold to restrict broadcast/multicast/unicast storms

Multicast Control

IGMP snooping

Port Trunking

Up to 3 groups with up to 8 ports per group, dynamic LACP or static aggregation

Clustering

Up to 256, manageable through single IP

Security

IEEE 802.1x port-based user authentication

Remote authentication through RADIUS

Port Security

MAC filtering

Port+MAC binding

QoS

4 dispatching queues per port, mapping the 8 priority queues in 802.1p

Network Management

SNMP, RMON, Telnet, Command Line Interface (CLI)

Support BAUDCOM network management tools suite: Broad Director, and other general network management software

Software Upgrade

TFTP for 8port POE Switch

Configuration Upload/download

TFTP for 8port POE Switch

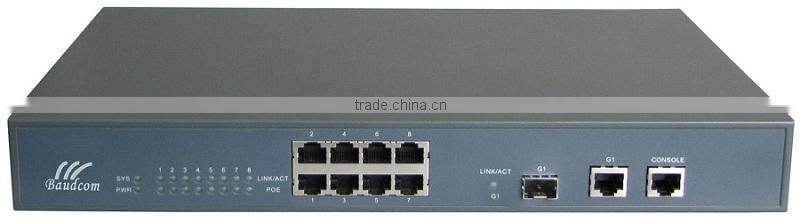

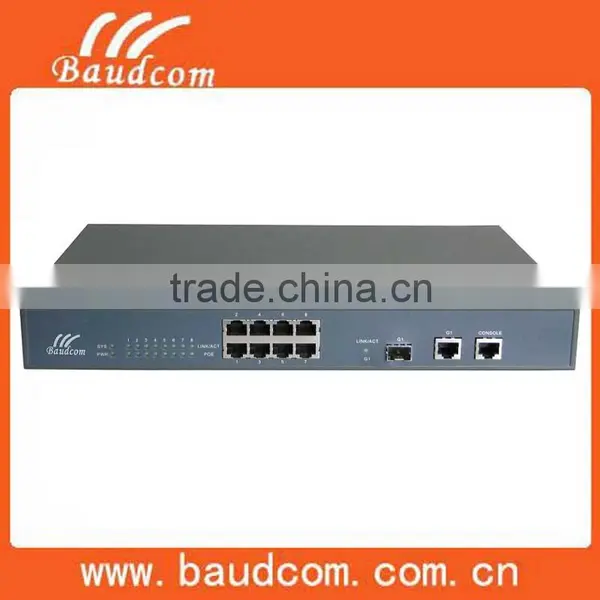

8port POE Switch Picture:

8port POE Switch





1.How can i get a sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice  for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a  ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

5.what's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.



  Packaging & Shipping

 The devices will be well packaged by carton with Foam or other shock proof materials.





Certifications





Factory production





Product testing





After-Sales Service



The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.

Your any questions will be responsed within 12hours!
