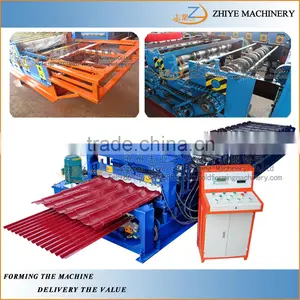

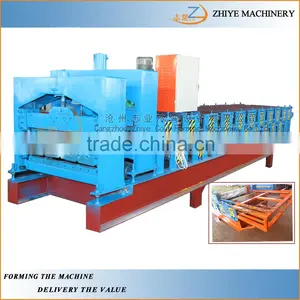

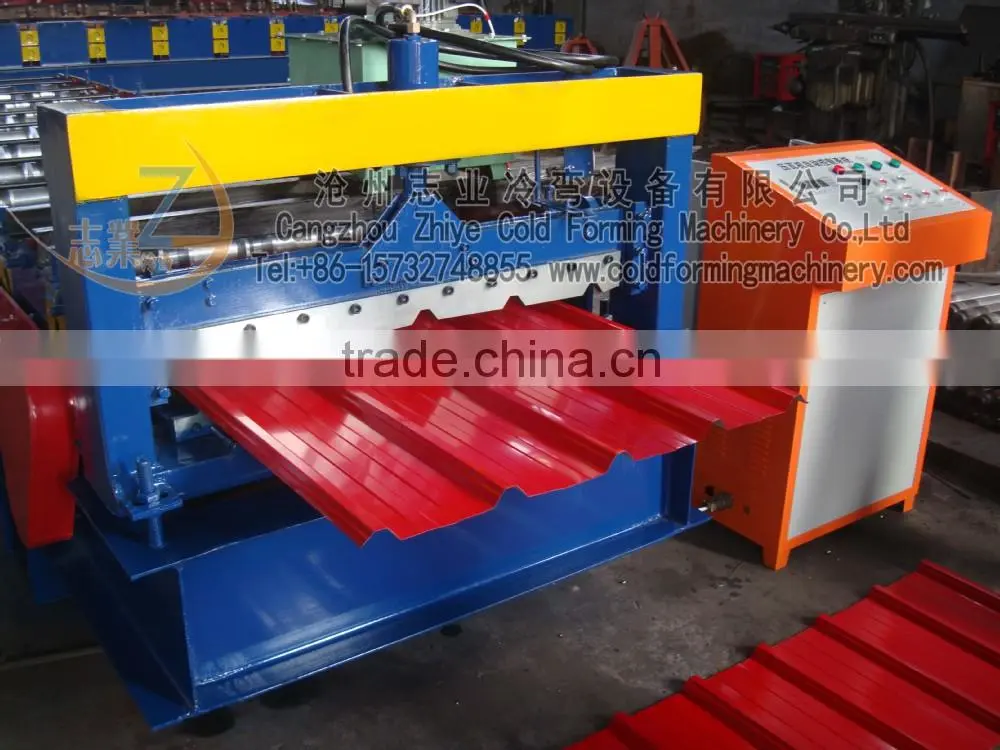

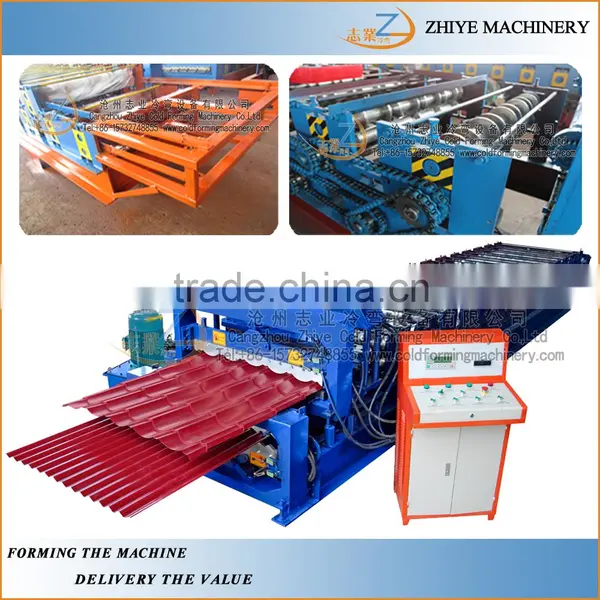

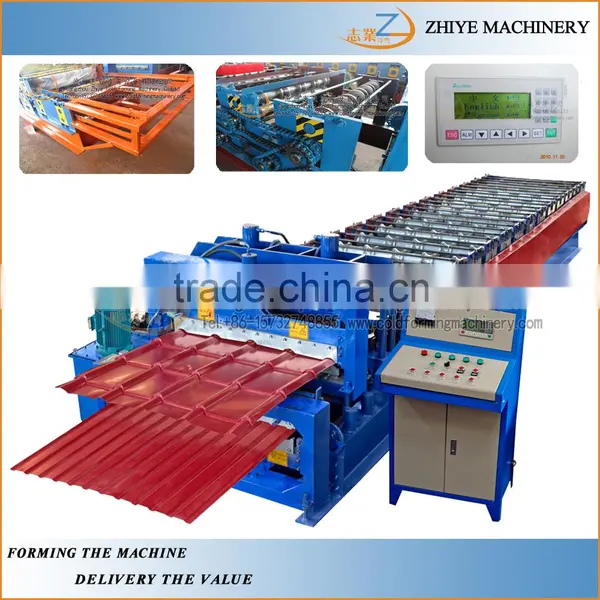

Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line
Automatic Machine for the Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line
The tiles produced by this machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.
Detailed components introduction for the Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line
1.. Manual Decoiler of the Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line
1):coil inner diameter: 450-550mm
2):coil max width: 1250mm
3):max carrying capacity: 5000kg
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Hydraulic fully automatic style is optional
2.. Coil feeding part of the Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line
Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.

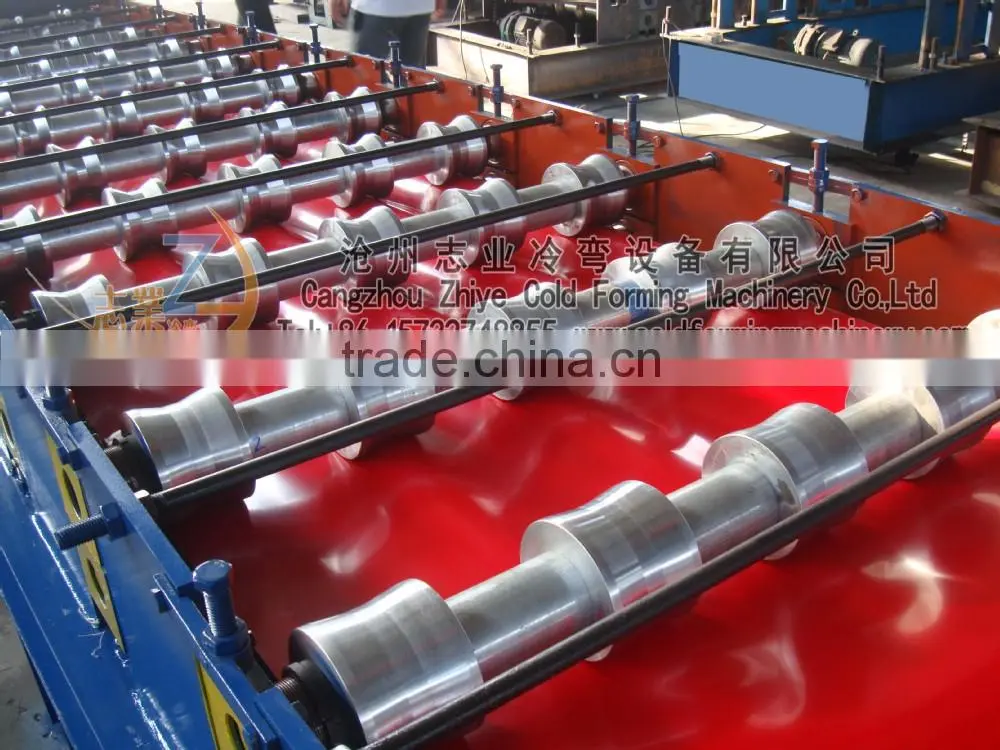

3.. Main roll forming machine part of the Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line
1).roller material: 45# steel with hot treatment at 52-68 degrees, hot chormed on the surface to make sure its hardness.
shaft material: solid shaft(not hollow style), around 70kg/pc, to make sure the strength of it.and final profile shape are perfect in this way.
shaft diameter: normally is 72mm.
2).power: normally 7kw in total
3).transmission model: gear and chain
4).controlling model: PLC controlling system, fully automatic.
5).Forming speed: 0-17m/min
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor
reducer drive, chain transmission,roller was chromed which can keep the molding plate surface
smooth and not easy to be marked when it is working

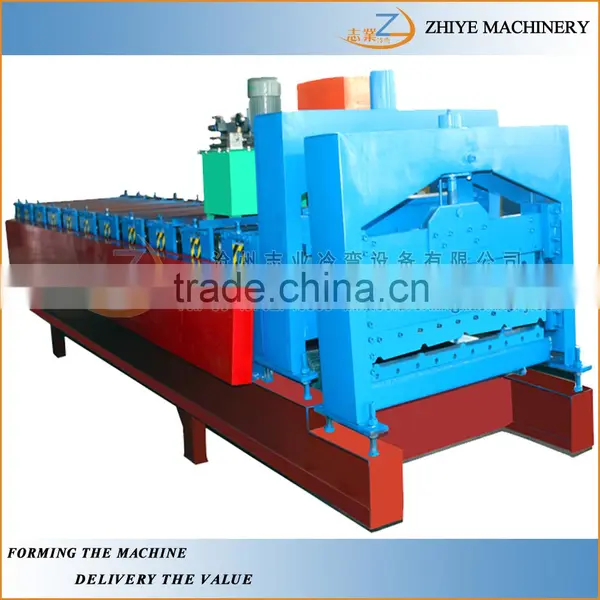

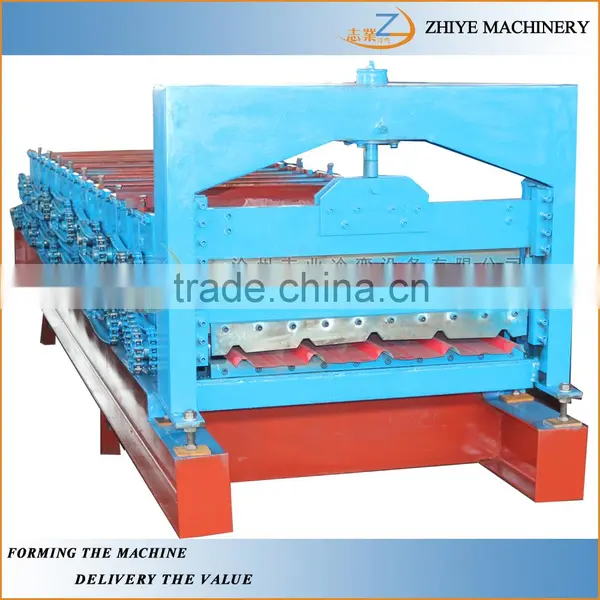

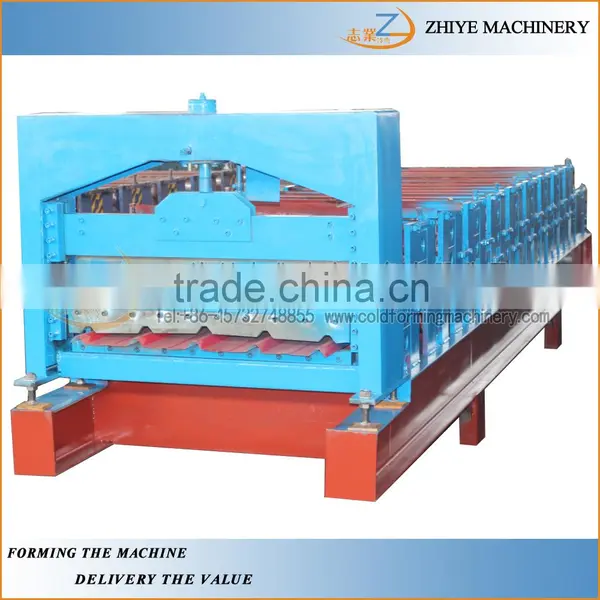

4.. Automatic cuttting system of the Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line
1).Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62
2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or
wasting, high level safety factor.
It adopts the hydraulic drive and automatic encoder to cut the accurate length you set on the computer.The tolerance is within 10m±1mm
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine
5.. Computer controlling part of the Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line
1).PLC brand: Normally, it is Delta. Mistubishi, Panasonic, Siemens are optional.
2).working model: fully automatic and manaul
3).working language: normally are English, Chinese,Russia. Can be set as per your requirements.↑
6. Hydraulic station of the Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line
1).including one motor,one oil tank,one magnetic valve,one pressure gage, hydraulic oil tube
2).3kw,4kw,5.5kw,will be adopted as per your profile sheet.
The assembling production flow of the Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line
↓
↓
↓
↓
↓
Steel Sheet Roof Panel Double Decker Roll Forming Machine/corrugated roof tile and wall sheets double layer making Line can be packed into one 20 feet or 40 feet container. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.
Service:
Technology R&D
We have R&D centers and innovative designing teams for different kinds of production lines.
Quality Control
We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.
After Sale Service
Warranty period 2 years , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
Inspection
Inspected by the Sellers
After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
Inspected by the Buyers
After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
Cangzhou Zhiye Cold Forming Machinery Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.
James LEE
SKYPE: rollformingmachines
Mob: +86 157 3274 8855
Whats App: +86 157 3274 8855
Sincerely wish to estabilish win-win business relationship with you!
