dc dc Converter Input 10-36V Output 12V5A With CE FCC ROHS

dc dc Converter Input 10-36V Output 12V5A With CE FCC ROHS thumbnail-1
dc dc Converter Input 10-36V Output 12V5A With CE FCC ROHS thumbnail-2
dc dc Converter Input 10-36V Output 12V5A With CE FCC ROHS photo-1

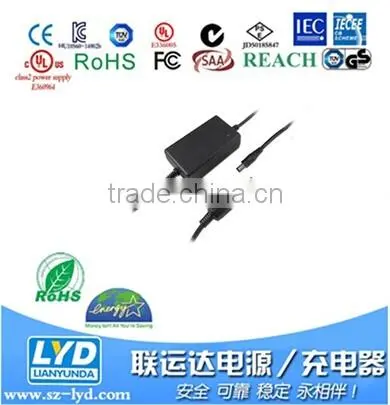

dc dc Converter Input 10-36V Output 12V5A With CE FCC ROHS photo-2
US$ 1 - 99 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LYD
Model Number:
LYD1205000
Contact Supplier Request Quote Chat Now
Shenzhen Lianyunda Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LYD
Model Number LYD1205000
Output Power Other, 60W
Output Type Other
Size 74*74*32mm
Weight 0.6KG
Input Voltage 10-36V
Output Voltage 12V DC
Type DC/DC Converters
Output Frequency 50Hz/60Hz
Output Current 5A DC

     Why Choose Us---our Advantages



1.We are Chinese Leading power adapter Manufacturer;



2.Alibaba Assessed Gold supplier;



3.Our Certifications are the most comprehensive ;



4.100%QC inspection Before Shippment;



5.Best Quality&Best Service with Factory Price;



6.Anti-interference, reliable.



7.High efficiency and energy saving



8.Raw materials imported from TDK STON,Toshiba,Rubycon,IR,fuji, AUK...



9.Input voltage 90-264V,with the standards of global use.



10.Withstand voltage 3750V



11.Protection function of short circuit, over-voltage and over temperature.



12.100% of ageing test.



13.Without or not exceed the prescribed content of Cadmium, Chromium, Lead, Mercury, PBB and PBDE.



14. Certificated by UL (America),CUL/CSA(Canada),TUV/GS/CE(Europ),BS(United Kingdom),SAA(Australia),KC(Korea),PSE(Japan),ROHS,LVD,CEC,EMC,FCC,CB.









Factory Pictures





dc dc converter input 10-36V output 12V5A with CE FCC ROHSdc dc converter input 10-36V output 12V5A with CE FCC ROHS

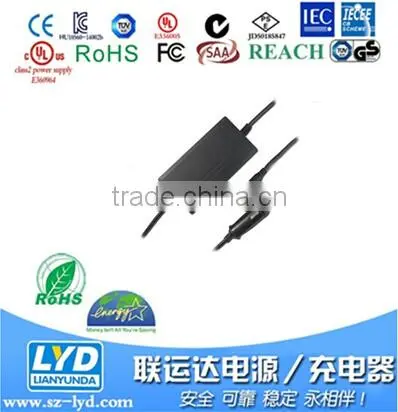

Product Picture

 dc dc converter input 10-36V output 12V5A with CE FCC ROHS

  dc dc converter input 10-36V output 12V5A with CE FCC ROHS



   Details



  1) input voltage: dc 10-36v

  2) output Power:60W

  3) output voltage:12V

  4) output currency:5A



  Safety Approvals



  CE  Rohs  FCC  Certifications



  Protections



  1)over voltage protection: 120%min
  2)over current protection: 120%min
  3)over protection

  4Short-circuit protection: automatic recovery ­

  5Load regulation: ±5%



 Environmental requirement



 1)operating temperature: 0-40
 2)storage temperature: -20-85
 3)opera ting relative humidity:595%RH





 Brand name: LYD



Product  Features



 1.  dC input power suitable for the world

 2.  Soft-start current can reduce the dC input impact efficiency

 3.  With short-circuit and overload protection

 4.  Compact size ,light weight

 5.  100%full-load burning test

 6.   Installed with EMI filter ,minimum wave



Output Power Range

12V,0-5A(also have those models for selection)

Input Rated Voltage

10Vac~36Vac

Input Frequency Range

50Hz~60Hz

Input Current

less than 0.5A

Input Inrush Current

less than 50A

Efficiency

90%(MIN)at Rated Voltage

Leakage Current

less than 5mA

Standby power

less than 0.5w

Ripple and Noise

less than 120Mv at full road with 20MHz bandwidth

Turn On Delay Time

less than 3S  (AC:110V and full load)

Dielectric Voltage

A IEC320 three pin input---output(FG)3000Vac one minute

Safety protection

output voltage protection (150%-180% rated output current)

output current protection (150%-180% rated output current)

short current protection

Operating Temperature

-10°C - +45°C

Storage Temperature

 -20°C - +40°C

Safety Standard

EN60950-1 UL60950-1  ESD (EN61000 3-3)

CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B

ISO 9001: 2008
