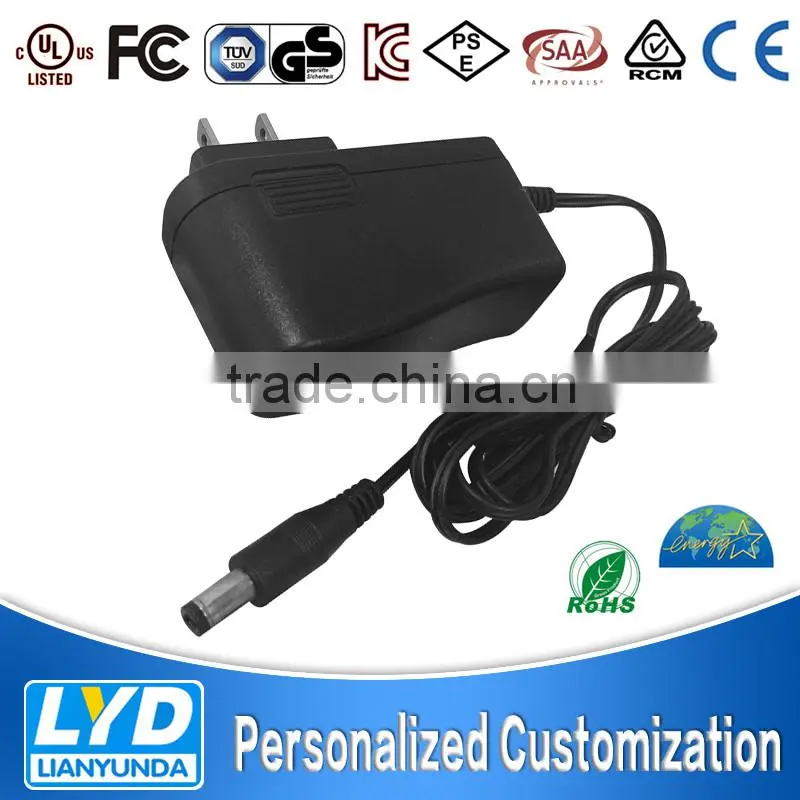

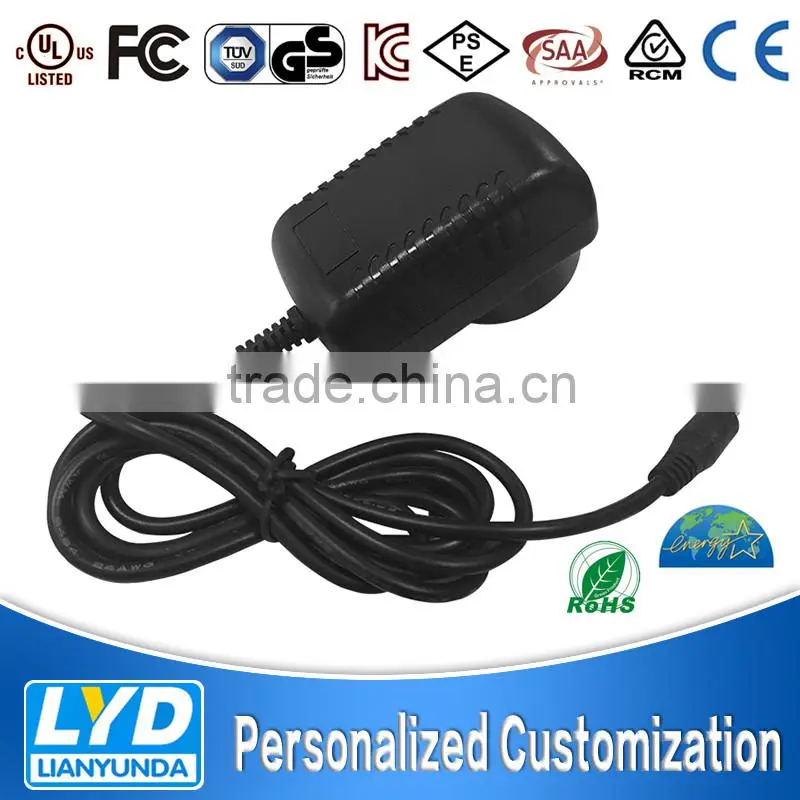

DOE LEVEL VI Wall plug 12W ac dc adapter 6v 2a power supply 6 volt 2 amp switch adaptor
Oupt power range |
5.6V2A 5V2.5A 6V2A 6V1.5A (also have those models for selection) |
The adapter size |
74*26*38mm |
The adapter weight |
360g/pcs |
Input Rated Voltage |
100Vac~240Vac |
Input Frequency Range |
50Hz~60Hz |
Input Current |
less than 0.5A |
Input Inrush Current |
less than 50A |
Efficiency |
80%(MIN)at Rated Voltage |
DC Output Voltage |
6V± 5% (option) |
DC Output Current |
2A (option) |
DC Output Power |
12w (optional) |
Leakage Current |
less than 5mA |
Standby power |
less than 0.5w |
DC connector |
5.5*2.1*10mm (optional) |
DC cable |
1.5m 2464UL 20AWG cable (optional) |
Ripple and Noise |
less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time |
less than 3S (AC:110V and full load) |
Certificates |
CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310 |
Dielectric Voltage |
A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection |
output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature |
-10°C - +45°C |
Storage Temperature |
-20°C - +40°C |
Safety Standard |
EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
1. Used TDK, ST, ON, Rubycon, IR, Toshiba imported materials.
2. 100% of full load burn-in test through the long period of time, effectively guarantee the stability of product quality.
3. Product has overvoltage, overcurrent, overload, under voltage, over temperature protection function.
4. Strong R&D team.
5. The stability of the international quality.
6. The one and only design.
7. All products have passed the UL, cUL, TUV/GS, PSE, SAA, C-Tick, CE, FCC, CB, KC, RoHS certification; the factory passed ISO9001 quality system certification, and has dozens of patents.
1. Any inquiries will be replied within 24 hours;
2. Professional manufacturer , welcome to visit our website;
3. OEM/ODM available:
a) Print logo on our products
b) Customized specification
c) Customized color package box
d) Any your idea on our products,we can help you to design and put it into production
4. High qulity,fashion design,reasonable&competitive price,fast lead time
5. After-sale service:
a) All products will have been strictly quality checked in test house before packing
b) All products will be well packed before shipping
c) All products have 1 year warranty, and we sure the products will be free from maintenance within warranty period
6. Faster delivery:
Sample order in stock, and 7-10 days for bulk production
7. Payment term:
T/T & paypal
Q1. What are the main products in your company?
A1: Our main products include switching power supply, power adapters, battery chargers.
Q2. Can you supply OEM or ODM service?
A2: We can supply OEM/ODM service of any charger or power adapter absolutely!
Q3. Which shipment available?
A3: Normally, we ship goods by sea,air and express. Special requirement also acceptable.
Q4. Do you inspect the finished products?
A4: Yes. Each product is 200% tested and inspected before package.
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you, to find the best solution for you.
