800/1900mhz cdma evdo Rev B modem

FOB Price

USD $21 - $24 / Piece

1000 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Wireless
Application	Soho	Function	Firewall, Other, Firewall, modem and router 2 in 1
LAN Ports	Other, no	WAN Ports	Other, no
Certification	CE FCC RoHS	Brand Name	LTER
Model Number	ZW63 cdma evdo Rev B modem	Place of Origin	Guangdong, China

cdma evdo Rev B modem
Qualcomm chip
work as modem and power PnP router
WIFI: 2.4G up to 150M
14.7Mbps DL/Up to 5.4Mbp

Product Features

800/1900mhz cdma evdo Rev B

This cdma evdo Rev B modem can work as modem or hotspot, details list as below.

1. work as cdma evdo Rev B modem :

2. work as USB hotspot:

Specification

800/1900mhz cdma evdo Rev B

800/1900mhz cdma evdo Rev B modem

Item		Description
Model	cdma evdo Rev B modem and hotspot	The USB WIFIdongle provides high-speed data services by accessing EVDO/CDMA networks. The software is installed automatically without CDROM and supports one-button to connect with internet.
Support network	CDMA 2000 Rev,B	DL 14.7Mbps / UL 5.4Mbps
	CDMA 2000 Rev.A	DL 3.1Mbps / UL 1.8Mbps
	CDMA 2000 Rev.0	DL 2.4Mbps / DL 384kbps
Working mode	WIFI mode	Max 5 user share the internet
Working mode	dongle mode	1 PC access internet directly
Frequency Band	CDMA	800M/(1900M optional)
Power Class	CDMA 2000	Power Class 3(+23dBm)
Conduction Rx sensitivity	800	< -105dBm
Conduction Rx sensitivity	1900	< -104dBm
External Interface	Antenna	Internal Antenna
	USB Type	standard 5V USB Interface
	USB Speed	USB 2.0 High Speed
	Power Mode	Powered via the USB interface
	SIM/USIM Card	standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102
Appearance	Form Factor	USB stick
	Available Colors	White, customize accept
	Dimension (mm)	98(L)×36W)×11(H)
	Weight (g)	45g
	Visual Indicator(LED)	A red LED lights,Always on, the data flow of light flashes
	Micro-SD Card Slot	Max up to 32G
Main Features	Languages Supported	Chinese and English, more languages supported upon customer requirements
	Setup Mode	Plug & Auto Installation
	Zero-CD installation	Supported
	OS Supported	Win2000/Win2003/XP/VISTA/WIN7 32bit/64bit,MAC OS

Detailed Images

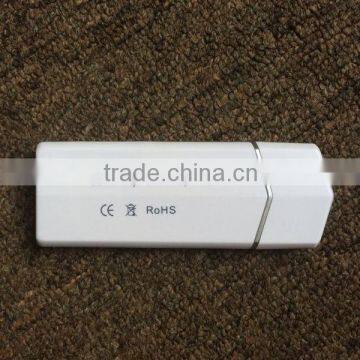

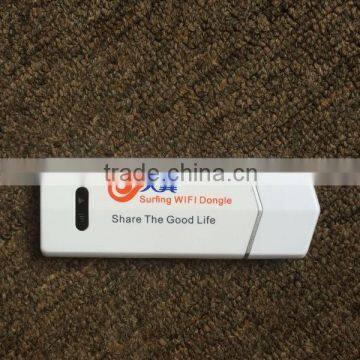

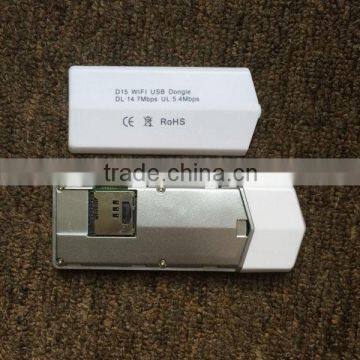

Detail pictures of 800/1900mhz cdma evdo Rev B modem

Size & Packaging

Weight	45g
Dimensions(DWH)	983611mm

Warranty & Delivery

Guarantee 12 months for 800/1900mhz cdma evdo Rev B modem.

Items can be replaced during the first month or maintained for the 1st year.

Buyers are only responsible for the return shipping fees for warranty items.
