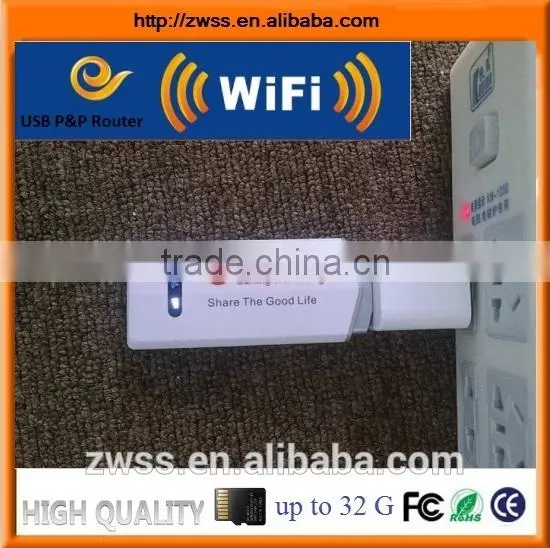

800/1900mhz Cdma Evdo Rev B UFI

Name: 800/1900mhz Cdma Evdo Rev B UFI
Brand: LTER
SKU: 100366745

US$ 21 - 24 MOQ: 1000 Pieces

Key Specifications

Products Status:

Stock

Type:

Wireless

Application:

Soho

Shenzhen Zhongwei Shengshi Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Wireless

Application Soho

Function Firewall, Other, Firewall, modem and router 2 in 1

LAN Ports Other, no

WAN Ports Other, no

Certification CE FCC RoHS

Brand Name LTER

Model Number QR63C 800/1900mhz cdma evdo Rev B

Place of Origin Guangdong, China

Specifications

800/1900mhz cdma evdo Rev B
Qualcomm chip
work as modem and power PnP router
WIFI: 2.4G up to 150M
14.7Mbps DL/Up to 5.4Mbp

Product Features

800/1900mhz cdma evdo Rev B

This device can work as both mode of modem and USB power plug and play router, you can swich it freely. details list as below.

work as modem:

work as USB power plug and play router:

Specification

800/1900mhz cdma evdo Rev B

800/1900mhz cdma evdo Rev B UFI

Item		Description
Model	EVDO Rev.B DONGLE with HOTSPOT	The USB WIFIdongle provides high-speed data services by accessing EVDO/CDMA networks. The software is installed automatically without CDROM and supports one-button to connect with internet.
Support network	CDMA 2000 Rev,B	DL 14.7Mbps / UL 5.4Mbps
	CDMA 2000 Rev.A	DL 3.1Mbps / UL 1.8Mbps
	CDMA 2000 Rev.0	DL 2.4Mbps / DL 384kbps
Working mode	WIFI mode	Max 5 user share the internet
Working mode	dongle mode	1 PC access internet directly
Frequency Band	CDMA	800M/(1900M optional)
Power Class	CDMA 2000	Power Class 3(+23dBm)
Conduction Rx sensitivity	800	< -105dBm
Conduction Rx sensitivity	1900	< -104dBm
External Interface	Antenna	Internal Antenna
	USB Type	standard 5V USB Interface
	USB Speed	USB 2.0 High Speed
	Power Mode	Powered via the USB interface
	SIM/USIM Card	standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102
Appearance	Form Factor	USB stick
	Available Colors	White, customize accept
	Dimension (mm)	98(L)×36W)×11(H)
	Weight (g)	45g
	Visual Indicator(LED)	A red LED lights,Always on, the data flow of light flashes
	Micro-SD Card Slot	Max up to 32G
Main Features	Languages Supported	Chinese and English, more languages supported upon customer requirements
	Setup Mode	Plug & Auto Installation
	Zero-CD installation	Supported
	OS Supported	Win2000/Win2003/XP/VISTA/WIN7 32bit/64bit,MAC OS
