Desktop Audio Conference Microphone For Discussion System OEM
YC823M SPECIFICATIONS
| NAME | YC823M Main Machine |
| input/output | 8P-DIN×3 |
| power supply | AC220V-50HZ |
| current drain | 70W(MAX) |
| sensitivity | -55dB |
| S/N | 70dB |
| frequency response | 100-14KHZ |
| dimension | 480×350×44mm |
| weight | 4kg |

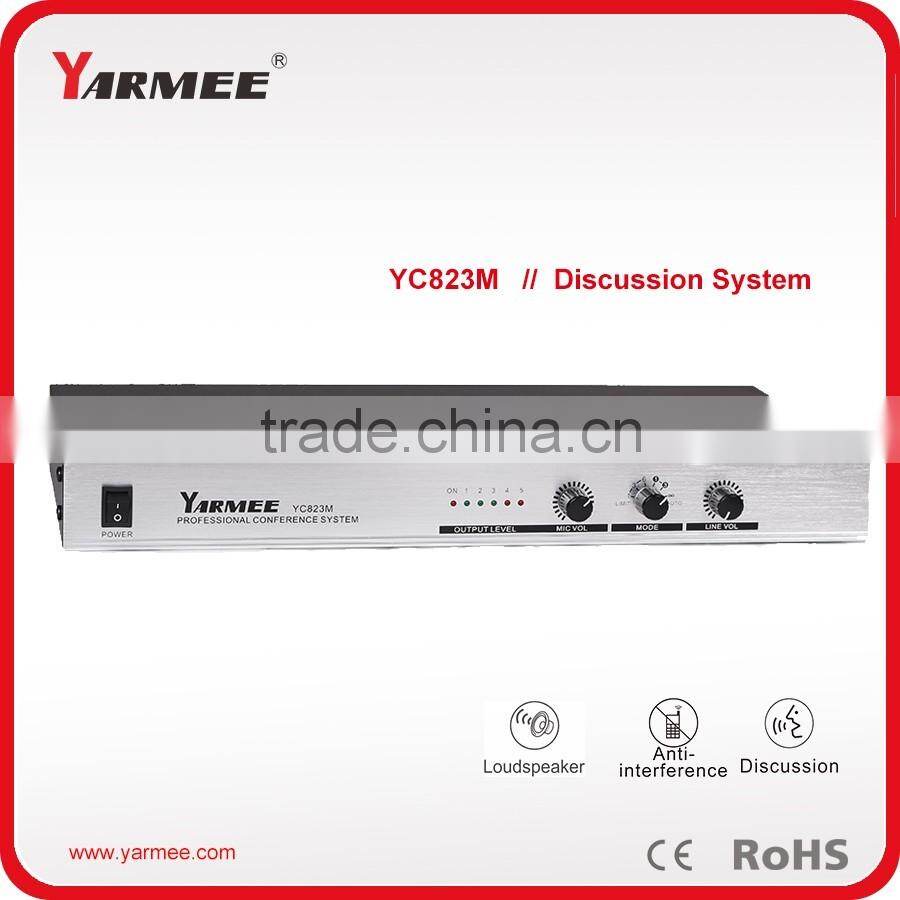

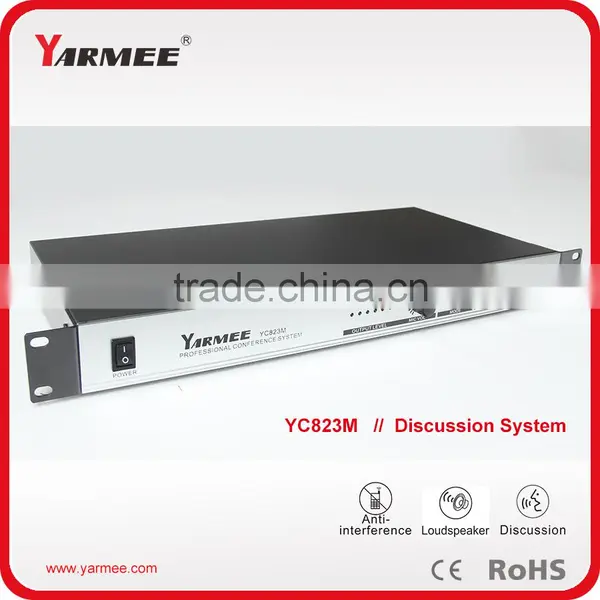

YC823M YARMEE CONFERENCE SYSTEM Main Unit
1,Built-in video camera tracking function.
2,Teleconferencing is allowed with telephone coincidence.
3,Built in frequency shifting, restraining screaming.
4,The rack hole: fixed the main machine in the 19''standard rack.
5,Holder Camera Setting: bring about the function of automatic tracking video.
6,Tracking blackout remembering function, still tracking even breaking away from a computer.
7,The main machine has 4 route can connect 80 units, through extend power machine can connect 2000 units.
8,The computer and controlling the keyboard could bring about the function of automatic tracking video
9,It has LCD display screen menu of Chinese and English. Bring about the control of the meeting function with the function-key.
10,Connect with computer,still having the following mode:
(1) Free discussion mode, turn on the unit or units (no limited) in arbitrary at the same times.
(2) Amount limited mode: turn on the unit with1/2/3/4/5/6 at the same time.
(3) FIFO mode: speaking units 1/2/3/4/5/6 can be controlled.
(4) Chairman mode: only allows the Chairman to speak.
11,The following mode must be set by computer software:
Request: indicator light flicker after press ON button,software control switch.
Auto-meeting: Limit speaks time.
YC823C/D SPECIFICATIONS
| NAME | YC823C/D Mic Unit |
| input/output | 8P-DIN×1(2M) |
| input | Condenser Microphone |
| power supply | DC24V |
| current drain | 40mA |
| sensitivity | -47Db |
| s/n | 65Db |
| frequency response | 100-10KHZ |
| weight | 0.9kg |
| dimension(W,D,H) | 135×155×65mm |
| colors | Blackish Green |
| installation | Desktop |
| length of gooseneck | 400mm (NOT Activity) |

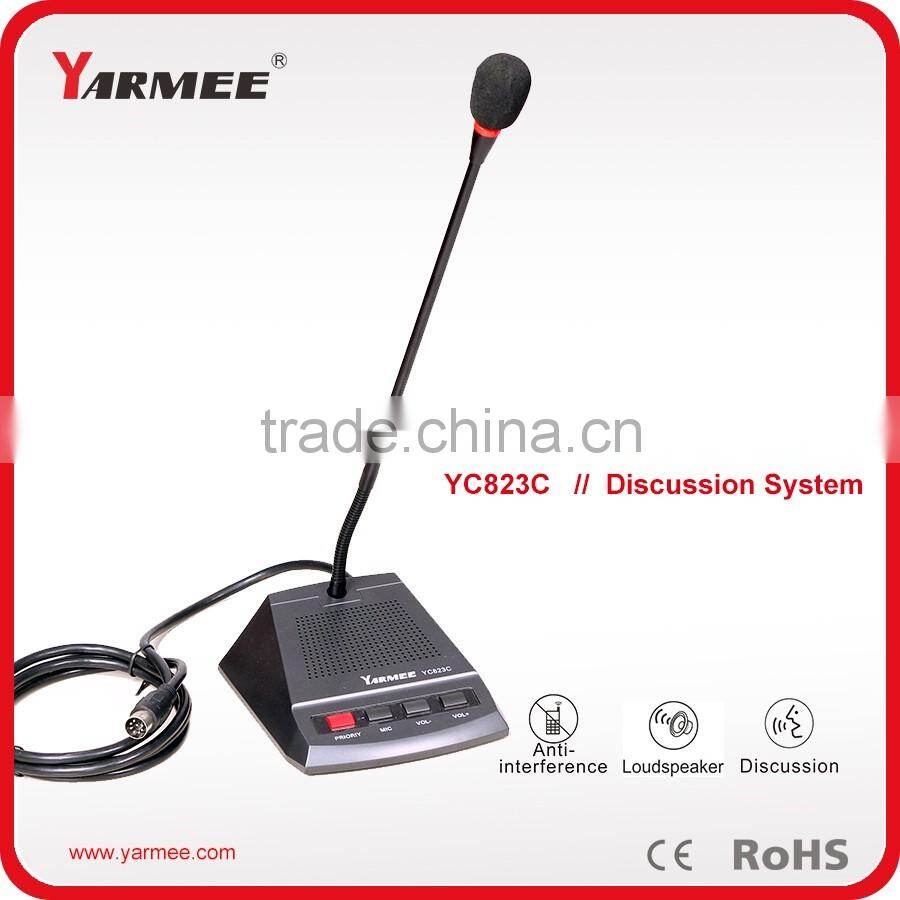

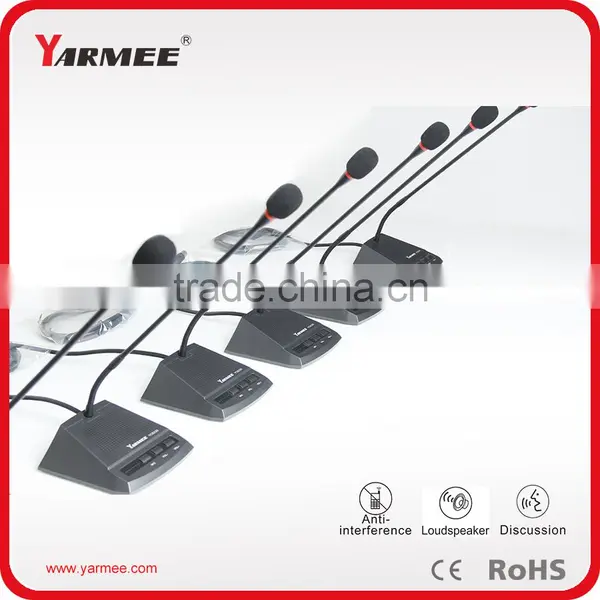

YC823C/D YARMEE CONFERENCE MICROPHONE Chairman/Delegate Unit
(Mix discussion, camera tracking functions together.)
1,Match with 2.1M connection cable.
2,highly resistant to mobile phone interference
3,With two microphone input design (adding the lapel microphone hub )
4,Inside work with DC24V power by Main machine, It’s safety for users.
5,Loudspeaker with auto mute, earphone jack and volume adjusting knob.
6,Chairman unit with priority speaking, can off each representative speaking unit.
7,Chairman can shut down all delegates, and chairmen do not be limited by main machine.
8,Uni-direction condenser microphone: goose neck microphone with red ring indicator LED.
9,Open the microphone automatically mute speakers with headphone jack and volume control knob
