Home > Products > Wine Filling Machine > Automatic mineral water filling machine
Automatic mineral water filling machine
- 10 Set / Sets per Month
- Shanghai/ningbo mineral water filling machine
- T/T
-
Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
-
PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
-
Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
-
Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
-
Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
-
high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
| Condition: | New | Application: | Beverage | Packaging Type: | Bottles, Cans, Cartons |
| Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V 50Hz or by order | Power: | 5-18kw | Place of Origin: | Jiangsu, China |
| Brand Name: | mineral water filling machine | Model Number: | CGF mineral water filling machine | Dimension(L*W*H): | up to the capacity |
| Weight: | 2800-15000kg | Certification: | CE and ISO 9001:2000 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Computer Control System mineral water filling machine
2. Full Automatic mineral water filling machine
3. All Stainless Steel mineral water filling machine

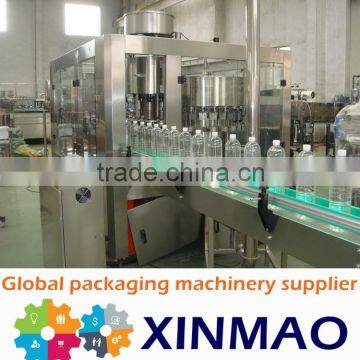

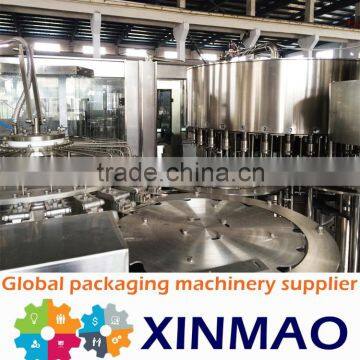

Automatic mineral water filling machine
Products Introduction
This machine has washing,filling,capping three functions in one body, it is automatic in total process and it is suitable for pure water,mineral water,juice,tea drink and other non-gas containing drink filling. It is make of high quality SUS304.
Characteristics
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
3. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
4. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, Germany's Siemens.
Technical parameters
| Model | Washing heads | Filling heads | Capping heads | Capacity(b/h) 500ml | Motor power (kw) | Overall dimension (mm) | Weight (kg) |
| CGF14-12-5 | 14 | 12 | 5 | 3000-4000 | 5 | 2180*1560*2300 | 2800 |
| CGF18-18-6 | 18 | 18 | 6 | 5000-6000 | 5 | 2250*1670*2300 | 3500 |
| CGF24-24-8 | 24 | 24 | 8 | 8000-12000 | 6 | 2800*1800*2300 | 4500 |
| CGF32-32-10 | 32 | 32 | 10 | 12000-15000 | 8 | 4300*3500*2300 | 5500 |
| CGF40-40-12 | 40 | 40 | 12 | 15000-18000 | 12 | 4600*3800*2300 | 6500 |
| CGF50-50-12 | 50 | 50 | 12 | 18000-22000 | 15 | 5000*4200*2300 | 7500 |
| CGF60-60-15 | 60 | 60 | 15 | 20000-25000 | 18 | 5500*4500*2300 | 9500 |
Washing Part

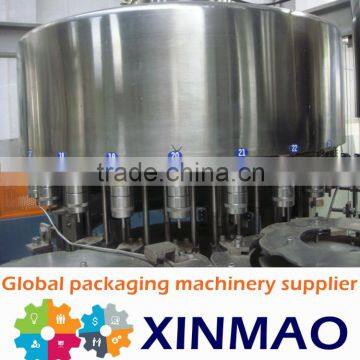

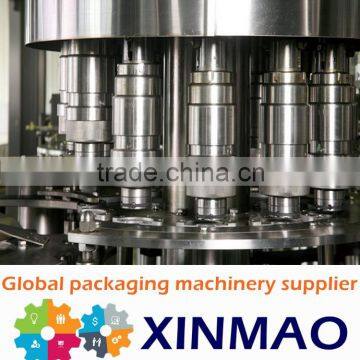

Filling Part
Capping part

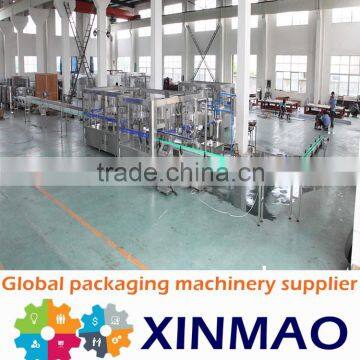

Our factory and finished machine workshop
Packing
Our spare parts supplier
Our certification
Why us
Expericed in beverage filling machine more than 15 years
Free technical support&consultation
Professional & fast after service team
Delivery in time
