Specifications
1. Computer Control System . mineral water machine CGF60-60-15
2. Full Automatic , mineral water machine CGF60-60-15
3. All Stainless Steel, mineral water machine CGF60-60-15
mineral water machine CGF60-60-15
Products Introduction
This machine has washing,filling,capping three functions in one body, it is automatic in total process and it is suitable for pure water,mineral water,juice,tea drink and other non-gas containing drink filling. It is make of high quality SUS304. Main parts are processed precisely by CNC tool. The total machine uses advanced photoelectric detection technology to detect each parts operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
Characteristics
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, Germany's Siemens.
Technical parameters
| Model | Washing heads | Filling heads | Capping heads |
Capacity(b/h) 500ml |
Motor power (kw) |
Overall dimension (mm) |
Weight (kg) |
| CGF14-12-5 | 14 | 12 | 5 | 3000-4000 | 5 | 2180*1560*2300 | 2800 |
| CGF18-18-6 | 18 | 18 | 6 | 5000-6000 | 5 | 2250*1670*2300 | 3500 |
| CGF24-24-8 | 24 | 24 | 8 | 8000-12000 | 6 | 2800*1800*2300 | 4500 |
| CGF32-32-10 | 32 | 32 | 10 | 12000-15000 | 8 | 4300*3500*2300 | 5500 |
| CGF40-40-12 | 40 | 40 | 12 | 15000-18000 | 12 | 4600*3800*2300 | 6500 |
| CGF50-50-12 | 50 | 50 | 12 | 18000-22000 | 15 | 5000*4200*2300 | 7500 |
| CGF60-60-15 | 60 | 60 | 15 | 20000-25000 | 18 | 5500*4500*2300 | 9500 |
Washing Part

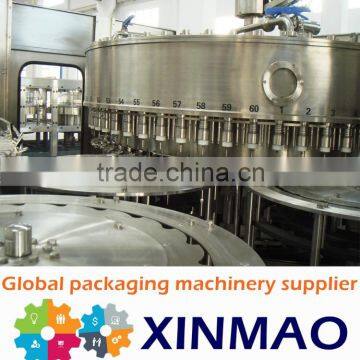

Filling Part
Capping part
Our factory and finished machine workshop
Packing
Our spare parts supplier
Our certification
Why us
Expericed in beverage filling machine more than 15 years
Free technical support&consultation
Professional & fast after service team
Delivery in time
