Specifications
hard alloy stamping die for motor lamination core ,mould life are not less than 150 million ,
tolerence 0.05mm

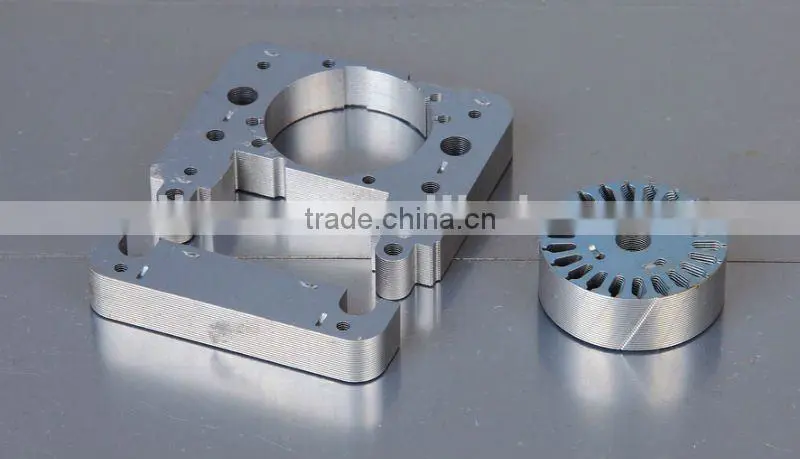

hard alloy progressive stamping tool for fan motor core
Shenzhen jiarun precision stamping mould company is professional for the manufacturing of Carbide material and high speed steel parts of high speed precision progressive die. We provide CNC profile grinding, CNC wire cut and surface grinding. We manufacture various mold parts and high precision parts.
Our precision equipment includes grinding machine from Japan, wire-cut from Swiss etc. JR company clients for the purpose, with process control and overall quality management, so we can provide high quality, on time delivery and competitive cost. We commit to keep it confidential of all technical data from customer.
JR motor core stamping die company founded in 1997, has many engineers with several years working experience in motor stator rotor stamping mould , they have skillful technology in mold parts manufacturing. It also has the most advanced profile grinding machine and wire-cut machine. JR introduced ISO9001:2008 International Quality Management System at the beginning to guarantee high quality products. Nearly 30% operating revenue comes from customer of Amercia and Europ.
You are always welcome to this new high-tech company.
product name |
motor lamination progressive stamping die |
product material |
Carbon steel, hot-dipped galvanized steel, SECC, stainless steel, aluminum, |
process method |
stamping ,punching ,forming ,bending ,deep drawing |
mould steel |
AISI D2/JIS SKD11/ Din1.2379, ASP-23, SKH-9,etc |
mould type |
progressive stamping die ,transfer die , high speed die ,deep drawing die,punching die,forming die, bending die ,etc |
equipment |
20-220T press maqchine , CNC machine , wire EDM machine ,laser machine ,conputer CNC machine , grinding machine etc |
stamping capacity |
0.1mm to 5mm , longth 3000mm ,width 2000mm 20t-220t |
surface finish |
electroplating, Powder coating, Conversion, Passivation , Anodize, Alodine, |
product |
auto stamping part ,machinerty stamping part ,office appliance stamping part ,computer stamping part ,terminal,connector ,contact ,flat spring ,flat washer, HDMI stamping part , IC chip Lead Frame ,micro SD stamping part, PC terminal,I/O ,USB stamping part,motor stator ,motor rotor ,motor bracket, motor cover ,motor case , electornic stamping part , usb connector , wire EDM part , stamping mould deep drawing die ,etc |
output |
500 sets die , 25sets press machine ,5 sets CNC machine ,20 sets grinder machine ,12 sets SODIC wire EDM ,5sets laser machine , |
market |
Europe ,America,Japan,India ,southeast Asia ,Africa, |
main customer |
Midea, Casic, Canon, Tong-chang electric machinery, Chigo Air conditioning, Mitsubishi Electric, Mitsui High-Tec. |
after-sales service |
guarantee replace , engineers are access for oversea, |
brand |
JR ,OEM ,and other |
certificate |
ISO9001;2008 |

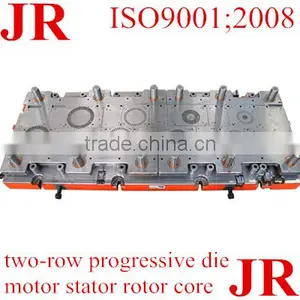

Progressive stamping die for motor stator rotor lamination technology
QUALITY:tolerance of spare part is within 0.002mm , tolerance of feeding length is within 0.003-0.005mm , and groundness is within R0.05-0.5,

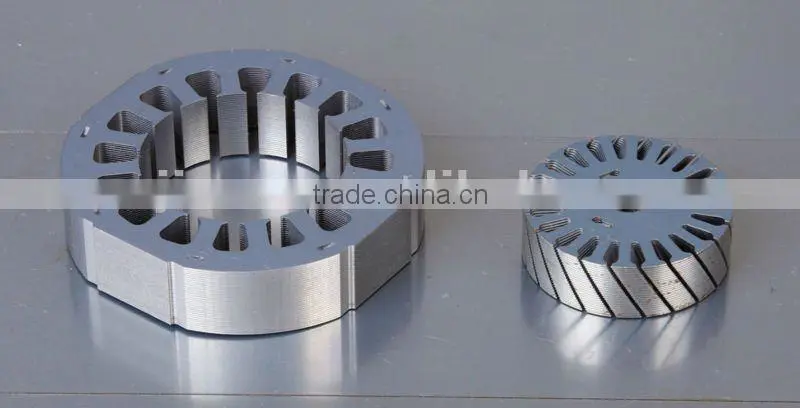

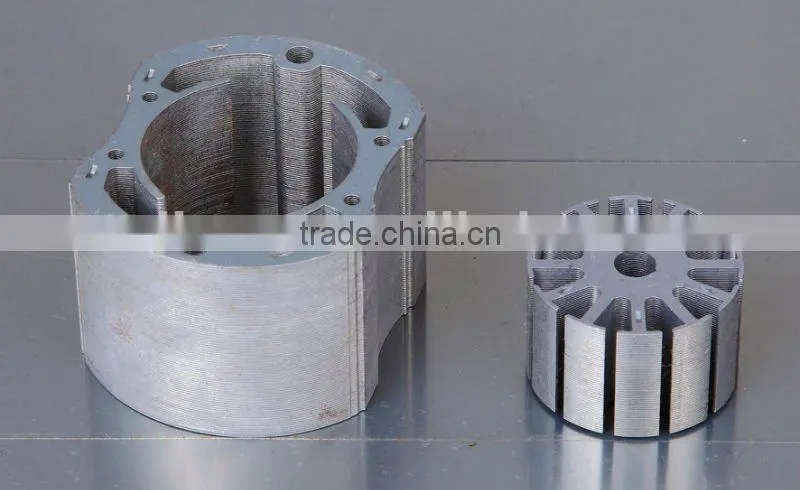

STATOR ROTOR Technology : stator rotor tolerance is within 0.05mm , concentricity is within 0.05mm ,
SPEED: stamping speed reach 350-400 strokes per minute .
Life: regarding life reaches 1 million to 5 million strokes , while total life from 100million to 200 million ,
Product size : we make stamping die for motor stator rotor from od 3mm to 1000mm ,
Technology: 1.auto interlocking
2. skewing
3.shoulder hole for stator rotor lamination
4.rotation for lamination within 180 degree .
Mould material: tungsten steel ,SKD11 , SAP-60, ASP-9 etc .
Our main product :1.brushless motor stator and rotor 2.brushed motor stator and rotor 3.vibration motor stator and rotor 4.induction motor stator and rotor5.SR motor stator and rotor 6.PM motor stator and rotor 7.DC motor stator and rotor8.universal motor stator and rotor 9.BLDC motor stator and rotor 10.AC motor stator and rotor 11.stepper motor stator and rotor12.induction motor stator and rotor 13.shaded pole motor stator and rotor 14.capacitor motor stator and rotor 15.pump motor stator and rotor 16.Motor bracket17.Motor cover18.Motor stamping part
19.Wounding stator and rotor
Application : Automotive ,electric appliance , coffee bean grinder motor ;Bathtub massaging machines motor ;vacuum cleaners motor;Electric screwdrivers motor ;Angle drills motor ; blenders motor; mixers motor;slicers motor ;electric knives motor ;soybean grindersmotor ; hairdryersmotor ; air pumps motor ; shredders motor lift motor ; hospital beds motor , accumulator cars motor , shredders motor , massagers motor
Shenzhen Jiarun Precision Industry Co., Ltd | |
Founded time |
Founded in 1997, for 14 years experience |
Registered Place |
Shenzhen ,China , the largest metal part industry ,and high tech ,the convinent transport, |
Factory |
3000m2 factory , and more than 100 partner |
Main Market |
Every city of China, Southeast Asia, South America, Europ ,Japan ,Brazil, India etc |
Main customer |
Midea, Casic, Canon, Tong-chang electric machinery, Chigo Air conditioning, Mitsubishi Electric, Mitsui High-Tec |
Company’s licence |
Business License for Legal Person, ISO9001:2008 by SGS |
Company’s address |
Building No.2,North, Yanchuan north Industry district, Songgang Town, |
|
Contact information
|
Phone :86-0755-23491191 86-0755-23490155 Fax:86-0755-23490062 Skype:doris.9191 |
Company Introduction |
We are professional with progressive die, stamping die. Tooling material is good quality. We could provide service all about precision sheet metal stamping dies including stamping die design, stamping die manufacturing, machining and trouble shooting of stamping dies. |
Main Products |
motor rotor and stator , motor bracket, shredder blade,Computer, mobile phone connector terminals, motor core stamping mould.stamping part ,deep drawing part |
Main Service |
According to the customer's drawings for mould design ,development and manufacture.
|
Other Features |
1.In-time response on letters, telephone calls or fax |
