Digital simultaneous interpretation equipment 6 languages / Translate language distribution system
Digital IR Simultaneous Interpreter System
YARMEE digital Samultaneous Interpretation System (SICS) modular design of the infra-Red Language Distribution System enables the required facilities to be specified om virtually any desired configration ,permitting a high degree of system flexibility .
Right now it supports up to 32 channels ,and compstible with Bosch interpretation system.
YSD604M Digital Transmitter is the central modular unit in the digital infrared system . It accepts audio from the YSD604M or other compatible audio sources . The YSD604M modulates the incoming audio signals onto carrier waves ,which are sent directly to one or more YSD604X Digital Infratred Rdiators . The output from the radiator is then passed on to each YSD 604R delegate receiver .
IR Receiver - YSD604R
Feature
l Support 4,8,16 or 32 channels available
-
l Immune to interference from HF-driven lighting
l Flexible configuration of channels and channel quality modes
l LCD receiver display channel number and battery capacity
l 28 level adjustable volume
l Digital infrared signal transmission, low noise, no broken sound, wide dynamic range
l Ergonomically compact and elegant design
l Simple operation, lightweight, convenient to carry
l Lightweight and handy receiver in conjunction with single earphone or headphone for easy and comfortable use
l Receiver unit use rechargeable batteries, can work continuously for 15 hours, and equipped with charging box
l Setting data electricity saving function
l Within the scope of the infrared emission, no restricted quantity of the receiver
l Freedom of movement within the range of IR power radiator
l Channel selection via up/down button
l Works without errors, even in bright sunlight
l Compliant to IEC 61603-7 and IEC 60914
Specifications
| Receving sensitivity | -101dBM |
| Angle of half sensitivity | ±50° |
| Headphone output level at 2.4 V | 450mVrms (Speech at maximum volume,32 ohm headphone) |
| Headphone output frequency | 20Hz to 10 kHz |
| Headphone output impedance | 32 ohm |
| Max.signal-to -noise radtio | 78dB(A) |
| Supply voltage | 1.8 to 3.6V ,nomilnal 2.4V |
| Power consumption at 2.4V (battery voltage) | 60mA (Speech at maximum volume ,32ohm headphone) |
| Power consumption(standby) | 60mA |
| Dimensions | 157*49*25mm |
| Operatinh temperature range | 0-40 degree |
| N.W | 150g without battery |

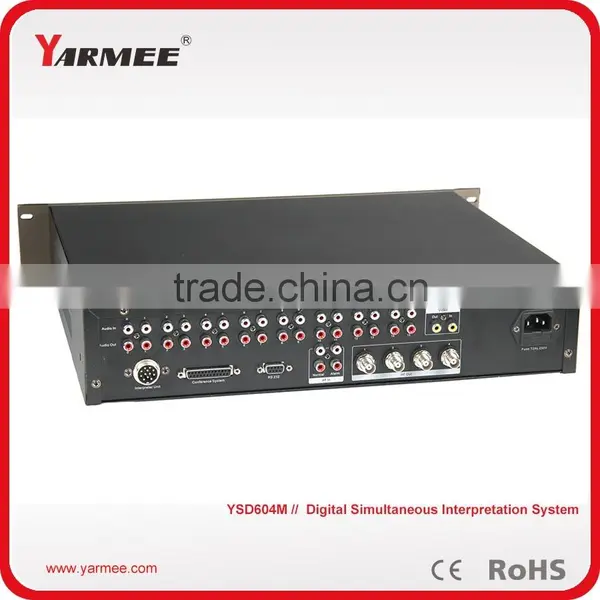

IR Tramsmission main unit-YSD604M
Feature
l Compliant toCompliant toCompliant to IEC 61603-7 and IEC 60914
l Compatible with the latest national standard GB 50524-50524
l Compatible with any other IR system compliant to IEC 61603-7
l Capable of distributing a maximum of 4, 8, 16 or 32 audio channels
l 2 ~ 8 MHZ carrier frequencies, compatible with the international standard spectrum
l Wider signal radiation Angle
l Use filter lens, against noise interference of light effective, work in sunshine, neon lights and complex environment
l Hand in hand radiation signal, easy to enlarge the coverage of signal, also be used to configure into many rooms
l Transmission delay compensation function, guarantee proper signals
l Infrared cannot penetrate walls or ceiling, ensure the privacy of the meeting, avoid eavesdropping
Humanized human-computer interface design, easy to use
Specification
| Items | Parameter |
| Modulation frequency | Carriers o ro5:2 to 6 MHz ,IEC 616 part 7 ,Carries 6 and 7 : up to |
| Protocol and modulation | DQPSK,IEC 61603 part 7 |
| Audio frequecy response | 20Hz-10KHz(-3dB) at standard |
| Total harmonic dostortion at 1 KHz | <0.05% |
| Crosstalk attenuation at 1 KHz | >80dB |
| Dynamic range | >80dB |
| Weighted signal-to noise ratio | >80dB (A) |
| Power comsuption | Opearting : 100W; Standby: 25W |
| Asymmetrical audio inputs | +3 dBv nominal +6dBv maximun(±6dB) |
| HF output | 1 Vpp,6DVC ,50Ohm |
| Interpreter console interface | 12P -DIN |
| Audio input | RCA*16 |
| Items | Parameter |
| Audio output | RCA *16 |
| HF output connector interface | BNC *4 |
| Operating temperature range | 0-40 degree |
| Power supply | AC110V -200V~50Hz-60Hz |
| Dimensions | 485 *355*90mm |
| Mounting | 19" rack mounting |
| N.W | 8KG |
Digital Interpreter Console Unit-YSD604I
l Fully digital design, high sound quality and greatly anti-jamming ability
l Volume adjust and automatic feedback eliminator
l Cough elimination function
l When the speakers speak too fast, can press the request button (missile) requires the speaker “SLOW” speaking speed
l Configurable secondary translation functions, when the translator did not understand the speaker's language, by listening to the other translators transliteration again on the second translation
l Support 4, 8, 12, 16, 20, 24, 32 road audio channel
l Color display, optional headphones and microphones
IR Radiator-YSD604X
l Compliant to IEC 61603-7 and IEC 60914
l Immune to interference from HF-driven lighting
l Coverage up to about 50 meters (25 w)
l Hand in hand radiation signal, easy to enlarge the coverage of signal, also be used to configure into many rooms
l Installation: fixed up by bracket or tripod
l Half-transmitting angle: ±22°
l Delay compensation for differences in cable lengths between transmitter and radiators
Rechargeable Storage Box –YSD604C
l 220V ac power supply
l charges 24 receivers unit per charging
l Draw rod extension and convenient pulley for moving
l charging protection function and instructions
