manufacturing stampingthe material is used silicon steel sheet

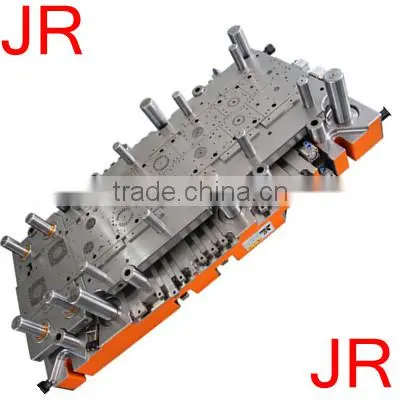

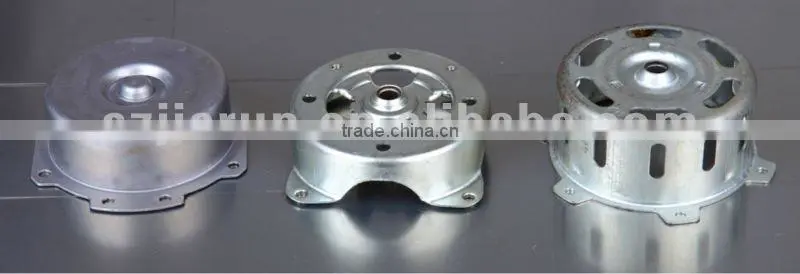

motor stator rotor lamination progressive stamping mould /tool/die
Motor stator rotor lamination stamping die technology
- lamination interlocking
- lamination skewing
- lamination shoulder hole
- 180 degree rotation for lamination
- straight-type lamination
- segment-type lamination
the motor stator rotor core progressive stamping die
product series of progressive die : various lamination and cores for motors which involve air-condition compressor motor , refrigerator motor, plastic sealing motor , automobile motor , generator motor ,stepping and servo motor , universal motor , shaded motor , DC motor ,
the detail of motor core mould
tolerance: 0.05mm
speed: 300 to 400 strokes per minute
life : 100 million
Daily inspection
1). The inspection of the product
The product quality is up to the die production and assembly procedure. The user could find out the die performance through the inspection of the product: Dose it needs some adjustment? Is there any problem with the die? The inspection of the product contains as least the following points:
1.Is the dimension of the product in accordance with the drawing, if it is out-of-tolerance, the cutting edge needed regrinding.
2.Check the surface and the shape of the product.
3.Check the burr of the product
2).The inspection of the die performance
Aside from the inspection of the product, the day-to-day inspection of the die is also required. As follows:
1.Check the surface of the punch and matrix:, make sure there is no fissure and crack. Keep the cutting edge sharp.
2.Check the each working parts , to make sure the normal performance and coordination of each parts.
3.Check the guide assembly; to make sure there is no wear-out and roughness in some place; keep the guide bush, guide post and the rolling ball are in good coordination.
4.Check the precision of the standard parts, the function of the stripper plate and the elasticity of the spring parts.
5.Check the locating assembly, to keep the firmness of the fastener,such as bolt.
6.Check all the attachments and the protective assembly, to make sure they are in good state.
3).Maintenance and daily upkeep
The multiple positions hard alloy progressive die is special technical equipment, which is marked by high precision, high speed and long life-term. The Maintenance and daily upkeep are important for the normal performance of the die. Proper and regular maintenance could longer the life-span of the die and improve the quality of the product. The following points are essential:
1.First, make sure the die and the press is well-matched.
2.Do the Try –stamping according to the adjustment and operation procedure. Check the strip layout and Dimension Precision such as the height of interlocking point of stack.
3.Comply with the operation procedure; oil the each working parts and matching surface.
4.Apply the rust-proof oil after cleaning; cover the upper guide bush hole with a piece of paper, to prevent the dust and other article drop into the hole, other wise the precision of the die may be affect. At last, deliver the die to the appointed place in time.
5.When the die is put in storage, check carefully and take a record of the important information, such as die code , name, time of storage, stamping times, repairs times, repair info and etc. The last strip layout should also be kept with the die.
6.The storage room should be well-ventilated and fireproof. A person is needed to take charge of it.
7.The regular maintenance and change of the following parts are needed:
|
service-term |
Which parts need to change or adjust. |
1) |
After per 20 million strokes. |
The Rectangular helical spring need change. |
2) |
After per 10 million strokes. |
The Cylindrically helical spring need change. |
3) |
After per 8 million strokes. |
The guide pin and its adjusting bush and the misfeeding detector need adjusting. |
4) |
After per 8 million strokes. |
The stop bar need adjusting. |
5) |
hard alloy is 1,6~2million strokes |
The service is regrinding the Punch and Matrix also including adjusting the interlocking point of stator and rotor stack.. |
high speed steel is 0.3~0.5million strokes. |
Stator compound notching die
Rotor compound notching die
Stator full compound punching die
Rotor full compound punching die
External rotor compound blanking die
Armature lamination die
Series exciting motor multi-position progressive die
Household motor multi-position progressive die
Shaded pole motor multi-position progressive die
Permanent magnetic motor multi-position progressive die
Resin-packing motor multi-position progressive die
EI plate multi-position progressive die
Lamination segment multi-position progressive die
Strip & long stator rolling multi-position progressive die
Large compound blanking die
Blanking die
Large magnetic pole sheet compound die
Large sector compound die
Large model E sheet compound die
Large generator series compound die
High speed alloy notching die
