Pellet juice drink/bottled juice/fresh fruit juice
Main features of the equipments:
1)Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.
2)Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.
3)Grain filling uses measuring cup to quantify, ensure grain uniformity.
4)Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.
5)Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical data | ||||
Model |
CGF14125 |
CGF18186 |
CGF24248 |
CGF323210 |
Number of washing, filling, capping |
14-12-5 |
18-18-6 |
24-24-8 |
32-32-8 |
Capacity; bottle(600ml)/hour |
3000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
Suitable bottle size (mm) |
φ=50-108 H=170-340 330ml-2.25L |
|||
Pressure (kg/cm2) |
2~3 |
|||
Power (kw) |
Total motor 4.5kw |
Tota motor 4.5kw |
Tota motor 6kw |
Tota motor 8kw |
Overall size (mm) (LxWxH) |
2100x1400x2500 |
2460x1720x2650 |
3100x2100x2650 |
3500x2500x2650 |
Weight(kg) |
2500 |
3500 |
4200 |
5500 |

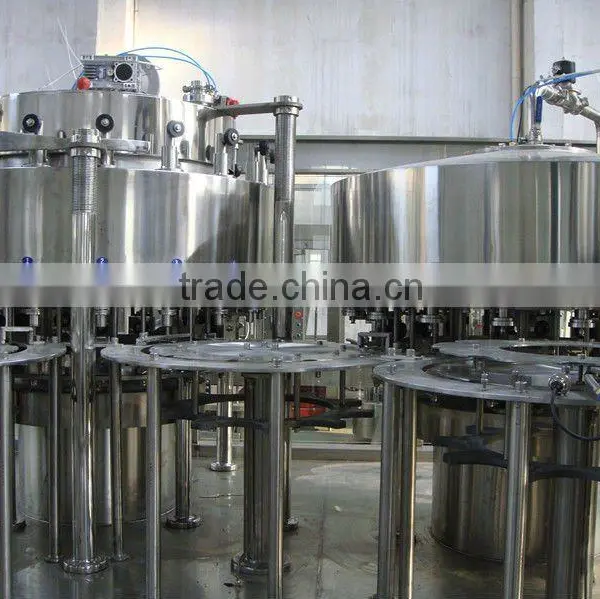

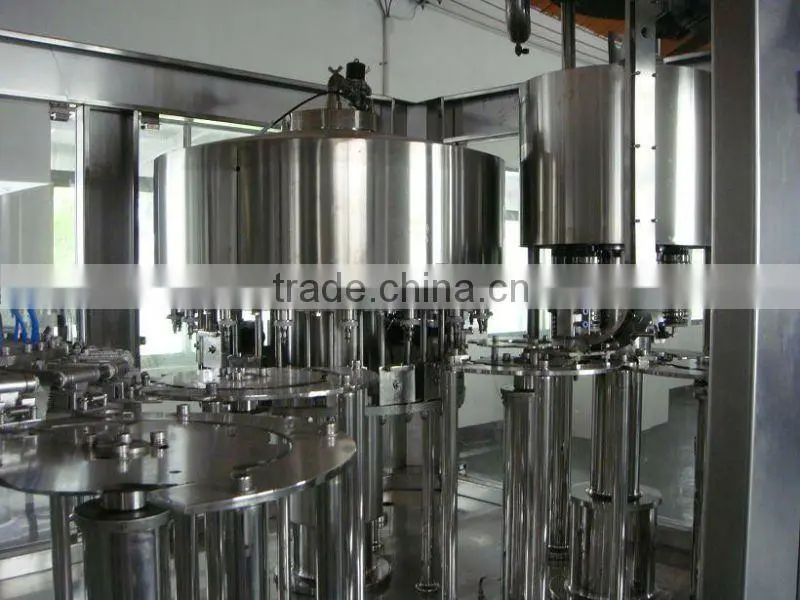

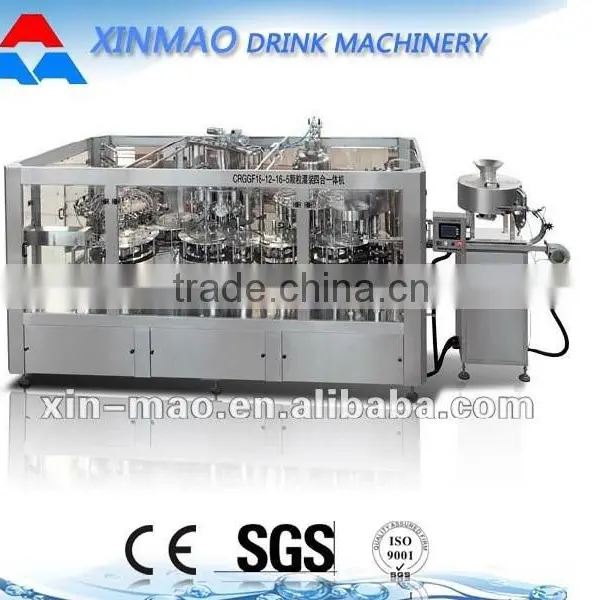

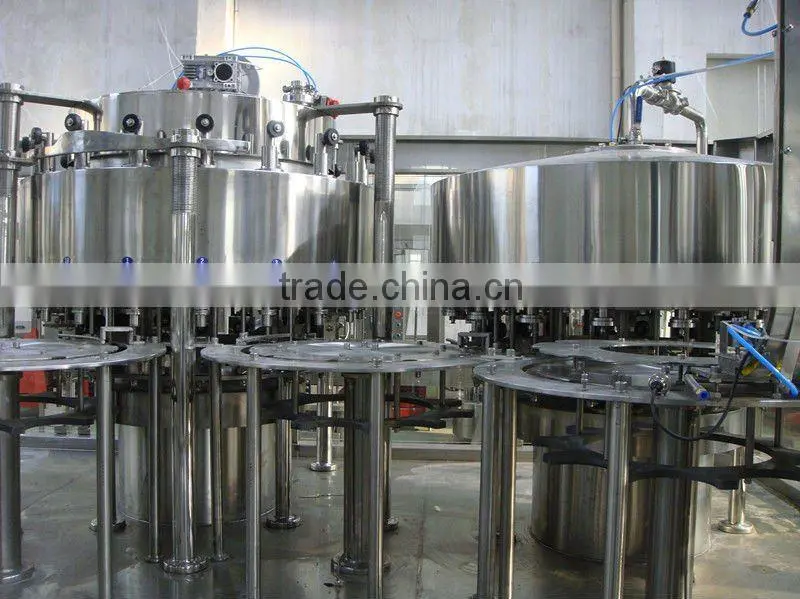

Pictures show:

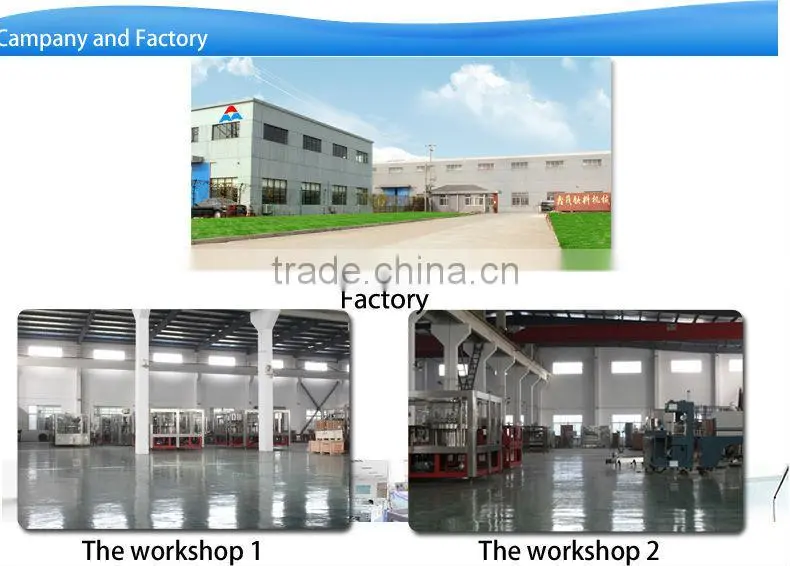

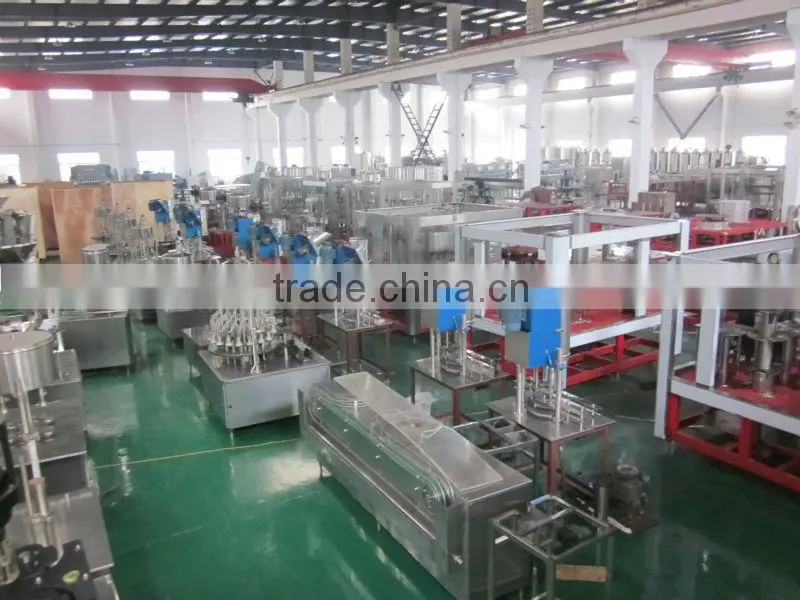

Factory show:
If you have any questions about this machine,please contact to us without hesitation.
