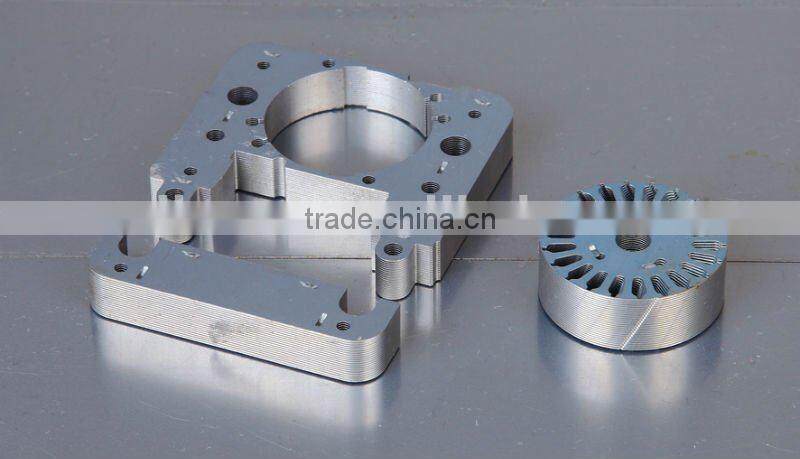

Servo Motor Stator Rotor Core Progressive Stamping Tool/mould/die , Silicon Steel Lamination

Specifications

hard alloy progressive stamping tool /die /mould for servo motor core

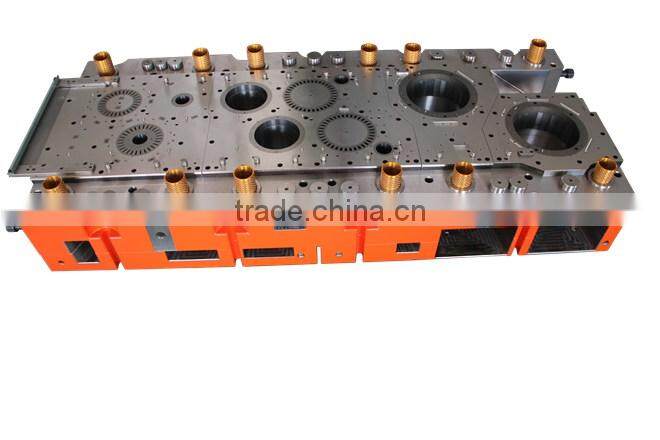

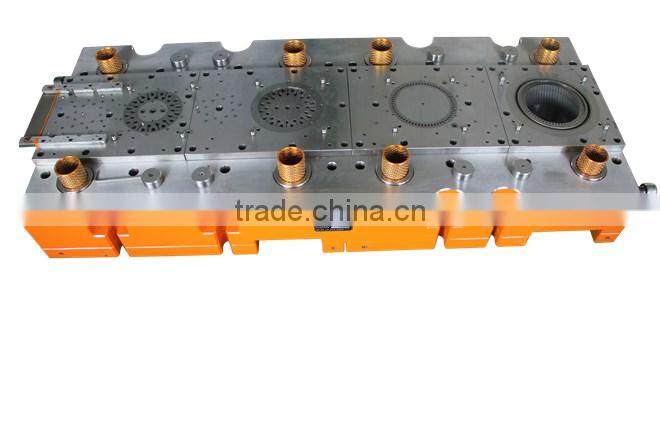

 Progressive stamping die for motor stator rotor lamination technology

QUALITY:tolerance of spare part is within 0.002mm , tolerance of feeding length is within 0.003-0.005mm , and groundness is within R0.05-0.5,

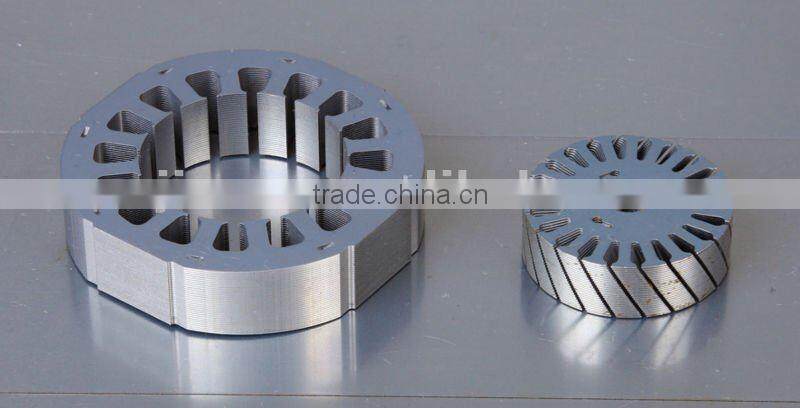

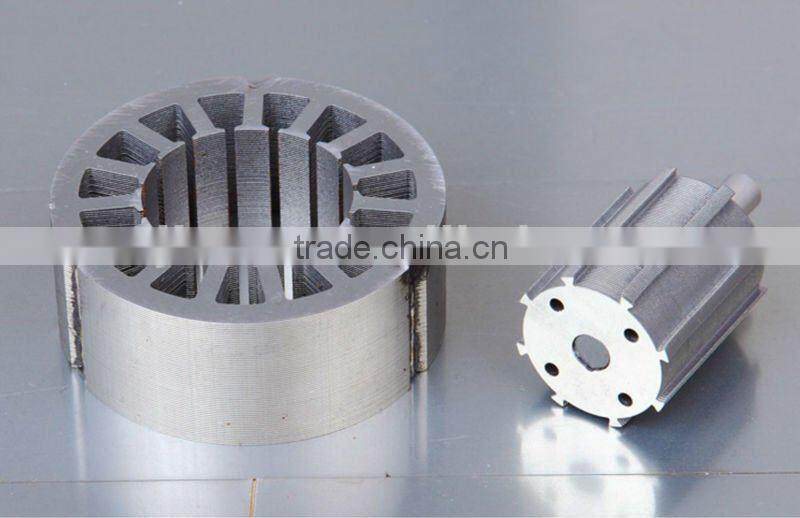

STATOR ROTOR Technology : stator rotor tolerance is within 0.05mm , concentricity is within 0.05mm ,

SPEED: stamping speed reach 350-400 strokes per minute .

Life : regarding life reaches 1 million to 5 million strokes , while total life from 100million to 200 million ,

Product size : we make stamping die for motor stator rotor from od 3mm to 1000mm ,

Technology: 1.auto interlocking

           2. skewing

           3.shoulder hole for stator rotor lamination

           4.rotation for lamination within 180 degree .

Mould material: tungsten steel ,SKD11 , SAP-60, ASP-9 etc .

Motor stator rotor core stamping die service

1. our motor stamping mould life is from 100 milion to 200 million , ans the punches grinding 1 time every 1 million strokes ,
2. we will offer customer maintenance instruction and opereation instruction file to help customer to maintenance and operate the mould
3. mould repair: A. online service : if you mould have any problem , please send us the problem by file to us , our engineer department will offer solve way

B. if the mould have big problem or customer need our engineer to oversae service , we also can offer

4. mould install , A. we will offer install instruction file ,

B,. our engineer can go to aboard to help you install the mould

5. we will offer mould spare part , such as punches and inserts to customer ,

6.if customer have no press machine , we also can help customer stamping stator rotor ,

advantage

 1) we have imported the advanced equipmeant from japan taiwan switzerland ect.such as japan sodick wire-cutting machine ,taiwa CNC machine, large-scale punching machine ,large-scale grinding machine ect.

 2)our company include more than10 engineers of R&D department,more than 100 effective stafffs in our manufacture  department,monr than 10 professional salesman.5 engineers in after-sales service department.

 3)we can offer servious  stamping stator and rotor, metal hardware ( such as bag/coat/handbag hardware)ect,we will do our product according customers'requirement.

 4)excellent quality at best price , and large order can get discount.

 5)our product have obtained the praised of japan most of country of southeast asia  Europ ,and some citys of America ect.

  6)   after-sales service department is excellent,  engineers are available to all over the world ,and also we offer the product return

  7)small order can get and large order can obtained discount.

 8)we obtained ISO9001 ;2008. it's the symbol of our quality and integrity.

 trade & market

 main market:  all the China

                                          Japan

                         southeast Asia

                                          Europ

                                         America

                                         India

                                         Aferica

Total Annual Sales Volume  :       US$1million-5million

 Export Percentage :30%

company information

  business culture ----focus on details, completing eting customers expection,spreading our business accoplishments.

 customer culture----quality is the soul of enterprise and customer is the god of enterprise;live on good quality and grow on our customers

 business belief---- pursue stationary from particularity, pursue  superier quality from  stationary.

 business goals---- our greaest pride  is serving you excellently. you final satifaction is our spirite source

the equipment

we  have advanced equipment such as large-scale stamping machine CNC machine wrie-cutting machine etcwhich are imported from Japan Taiwan Switzerland .

how to order

we are a metal tool manufacture of customer basic order.however we have a lot of precision tooling,it'll reduce your cost directly,so do contact us for futher information

  if you want to please a order to us .please offer us the 2d or 3d drawing ,and send to our e-mail  or phone us.thank you .
