Specifications
progressive stamping tool for motor coreISO9001;2008
tolerence ;0.05mm , life 150 million

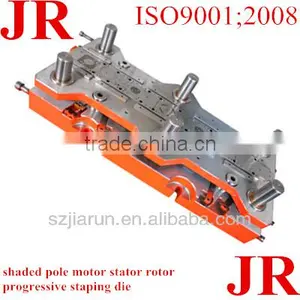

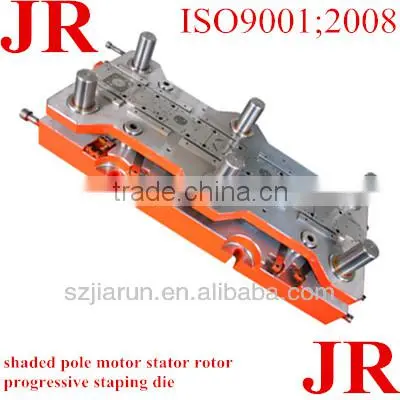

hard alloy progressive stamping tool for motor core
Shenzhen jiarun precision stamping mould company which was established in 1997, is one of the professional Motor Core progressive die manufacturers in China.There are 120 employees, including 50 skilled engineers and operators.
The company possesses hundreds of precision equipments, such as Switzerland Scanner & measuring instrument(strokes2m*2m) , Japan Sodic wire cutting EDM ,precision tool grinding, CNC tool milling machine , 25 sets press machine ,etc
The company specializes in producing Lamination progressive die, compound die, and rotor die casting. Most of them are used in segment and stator & rotor motor laminations. All toolings are designed by senior engineers to ensure their precision, durability and stability, by which we bring in more value and bring you greater profit.
We welcome people in all walks of life, and work for even brighter future.

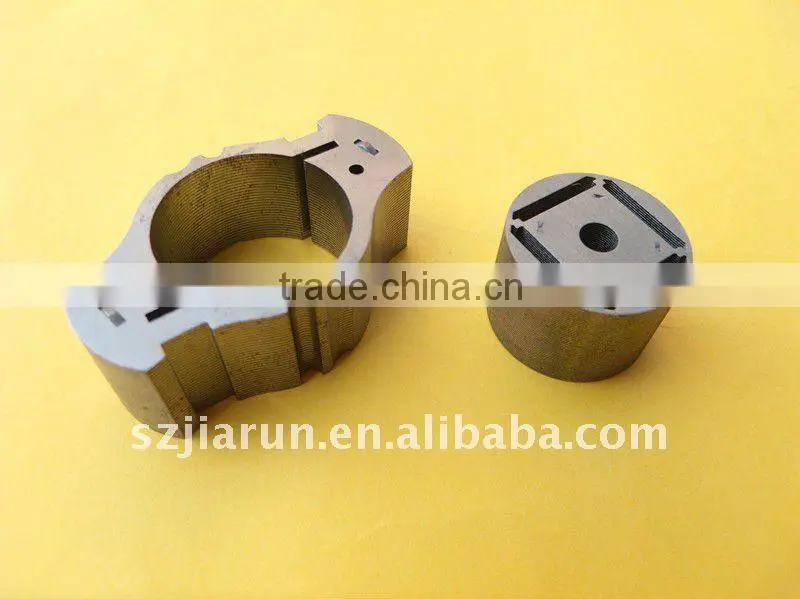

Progressive stamping die for motor stator rotor lamination technology
QUALITY:tolerance of spare part is within 0.002mm , tolerance of feeding length is within 0.003-0.005mm , and groundness is within R0.05-0.5,
STATOR ROTOR Technology : stator rotor tolerance is within 0.05mm , concentricity is within 0.05mm ,
SPEED: stamping speed reach 350-400 strokes per minute .
Life : regarding life reaches 1 million to 5 million strokes , while total life from 100million to 200 million ,
Product size : we make stamping die for motor stator rotor from od 3mm to 1000mm ,
Technology: 1.auto interlocking
2. skewing
3.shoulder hole for stator rotor lamination
4.rotation for lamination within 180 degree .
Mould material: tungsten steel ,SKD11 , SAP-60, ASP-9 etc .
advantage
1) we have imported the advanced equipmeant from japan taiwan switzerland ect.such as japan sodick wire-cutting machine ,taiwa CNC machine, large-scale punching machine ,large-scale grinding machine ect.
2)our company include more than10 engineers of R&D department,more than 100 effective stafffs in our manufacture department,monr than 10 professional salesman.5 engineers in after-sales service departmen
3)we can offer servious stamping stator and rotor, metal hardware ( such as bag/coat/handbag hardware)ect,we will do our product according customers'requirement.
4)excellent quality at best price , and large order can get discount.
5)our product have obtained the praised of japan most of country of southeast asia Europ ,and some citys of America ect.
6) after-sales service department is excellent, engineers are available to all over the world ,and also we offer the product return
7)small order can get and large order can obtained discount.
8)we obtained ISO9001 ;2008. it's the symbol of our quality and integrity.
certificate
company information
Shenzhen Jiarun Precision Industry Co., Ltd | |
Founded time |
1997 |
Registered Place |
Shenzhen |
Management Mode |
Production and serving model |
Whether offer OEM |
Yes |
Factory Area |
3000m2 |
Main Market |
Every city of China, Southeast Asia, South America, Brazil, India |
Main customer |
Foreign, institutions in China ,Foreign enterprises , |
Company’s licence |
Business License for Legal Person, ISO9001:2008 by SGS |
Company’s address |
Building No.2,North, Yanchuan north Industry district, Songgang Town, |
|
Phone
|
86-0755-23491191 86-0755-23490155 |
Fax |
86-0755-23490062 |
Company Introduction |
We are professional with progressive die, stamping die. Tooling material is good quality. We could provide service all about precision sheet metal stamping dies including stamping die design, stamping die manufacturing, machining and trouble shooting of stamping dies.
|
Main Products |
motor rotor and stator , motor bracket, shredder blade,Computer, mobile phone connector terminals, motor core stamping mould.
|
Main Service |
According to the customer's drawings for mould design ,development and manufacture.
|
Other Features |
1.In-time response on letters, telephone calls or fax
|
the department
| R&D | more than 10 professional engineers |
| manufacture department | more than 100 effective staffs |
| sales department | more than 10 excellent salesman |
| warehouse department | independent warehouse |
| after-sales service department | more than 5 engineers, engineers are available to go abroad |
how to order
we are a metal tool manufacture of customer basic order.however we have a lot of precision tooling,it'll reduce your cost directly,so do contact us for futher information .
if you want to please a order to us .please offer us the 2d or 3d drawing ,and send to our e-mail or phone us.thank you .
