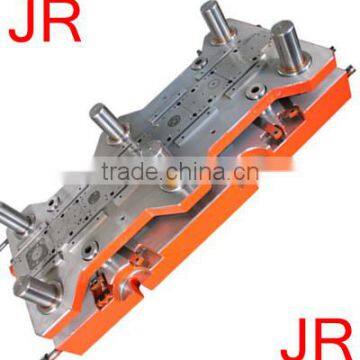

180 Degree Rotation Motor Stator Rotor Progressive Stamping Mould/tool/die

Specifications

progressive stamping mould/tool/die for stator rotor core
180 degree rotation motor stator rotor progressive stamping mould/to

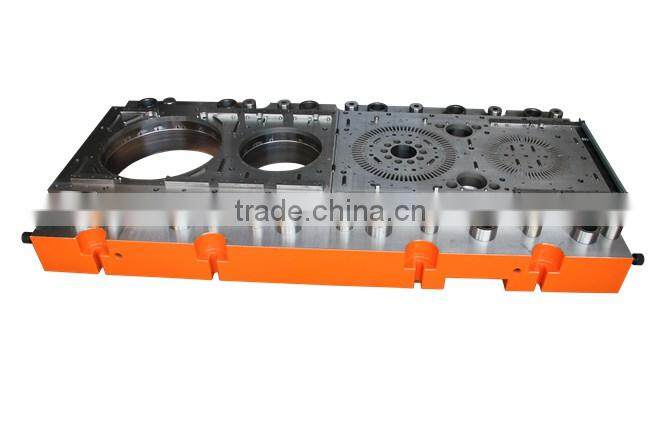

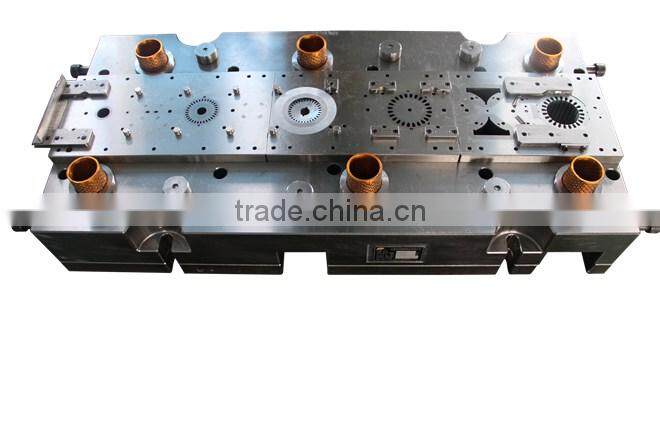

180 degree rotation  motor stator rotor progressive stamping mould/tool/die

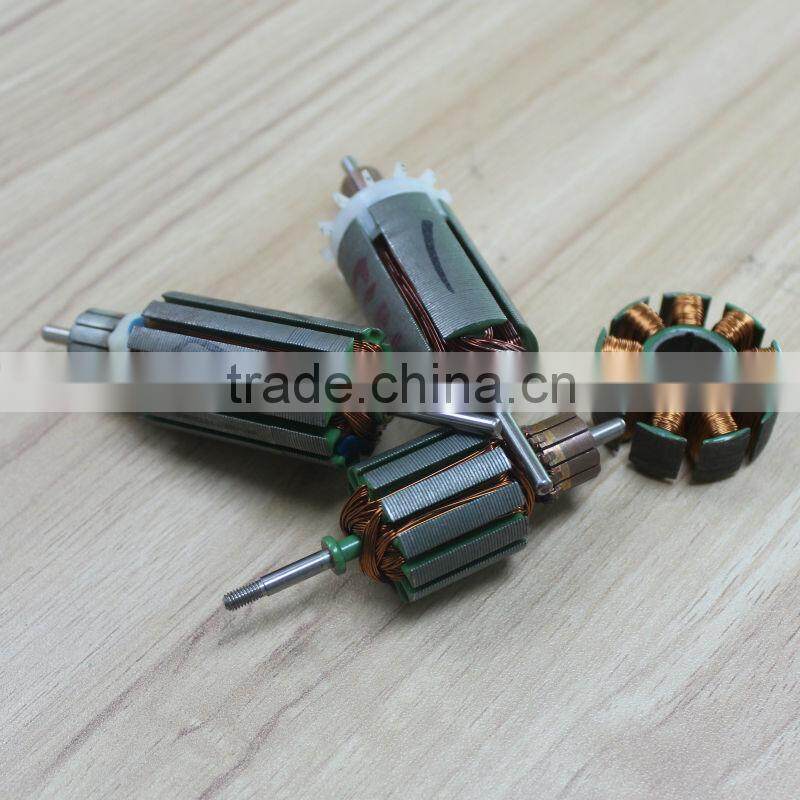

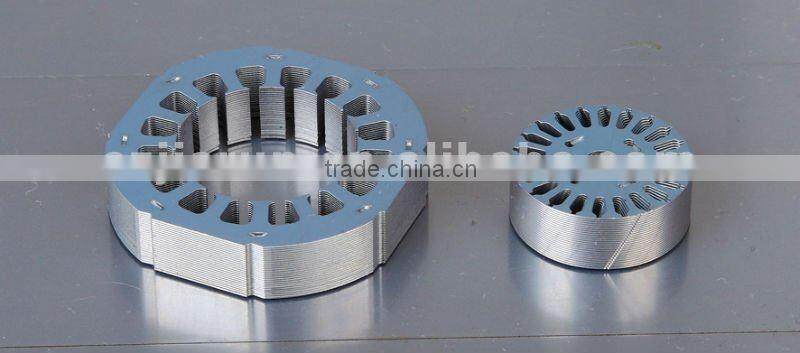

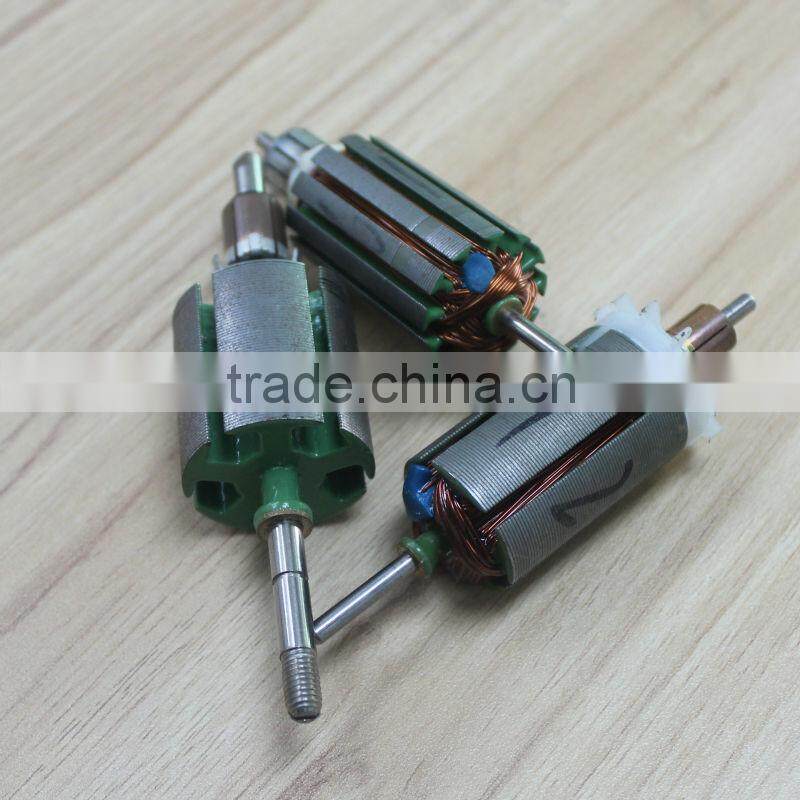

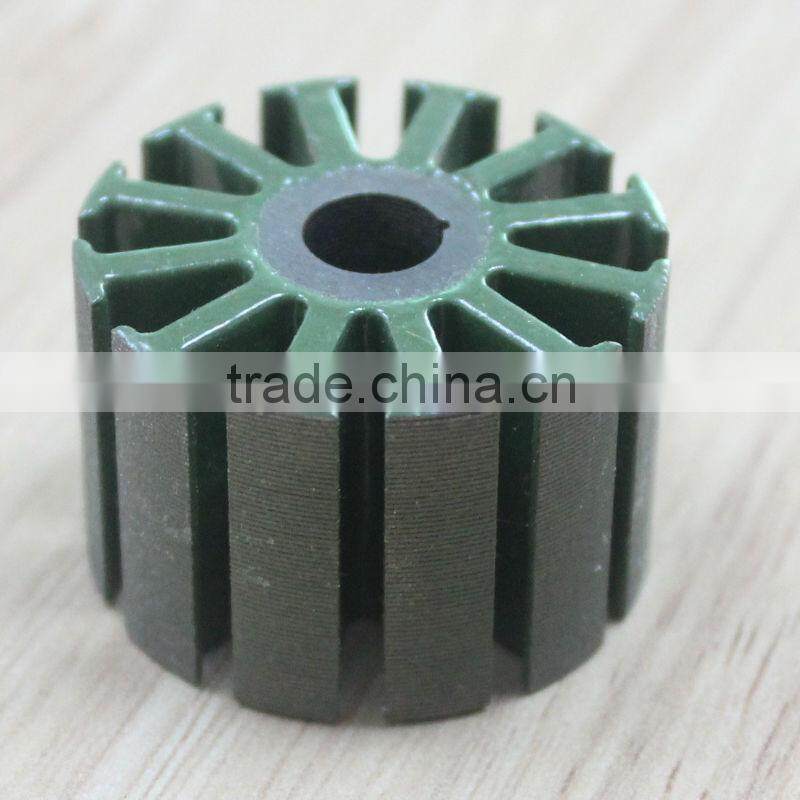

Motor stator rotor detail :
Material: silicon steel ,electric steel , stainless steel
Thickness:0.1mm,0.2mm,0.35mm,0.5mm,etc
Tolerance :0.05mm
Flatness:0.05mm
Certicality:0.1mm
Type: stamping
Mould : progressive stamping mould for stator rotor , single mould for stator rotor ,
Technology: interlock ,chute , point etc
Certificate:ISO9001;2008
Manufacture: OEM
After-sales service provided: engineers available to serbicxe machinery oversea

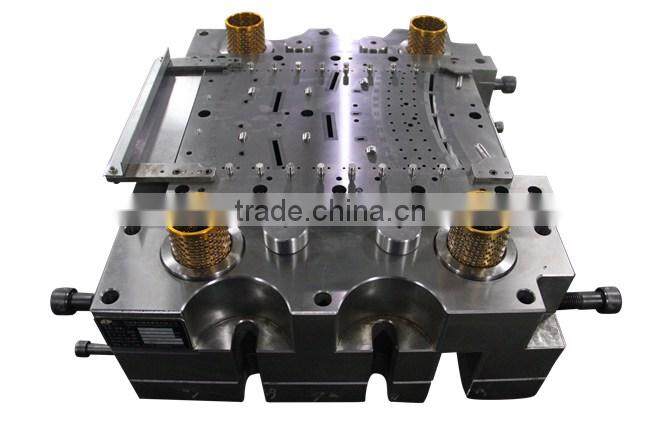

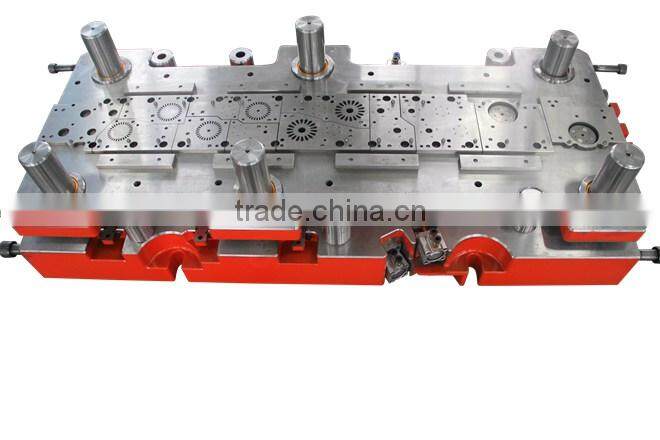

Stamping mould/tool/die for stator rotor
Material:SKD11,DC53, SAP-9,D2 ETC
Life span: more than 100000000
Type: progressive stamping mould/single mould
Punch and bottom : silicon steel

Shenzhen jiarun precision stamping mould company is a professional design and manufacture of motor core and multi-bit high speed stamping progressive die technology-based enterprises, located in Shenzhen ,Guangdong province China.

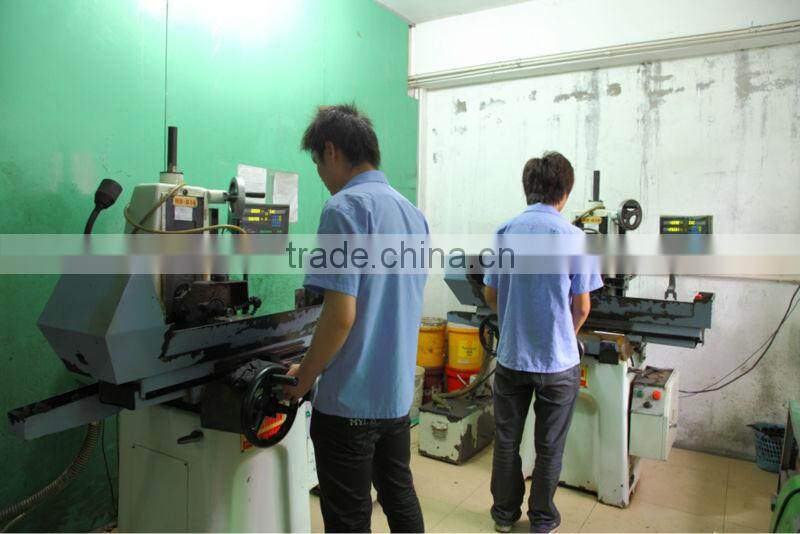

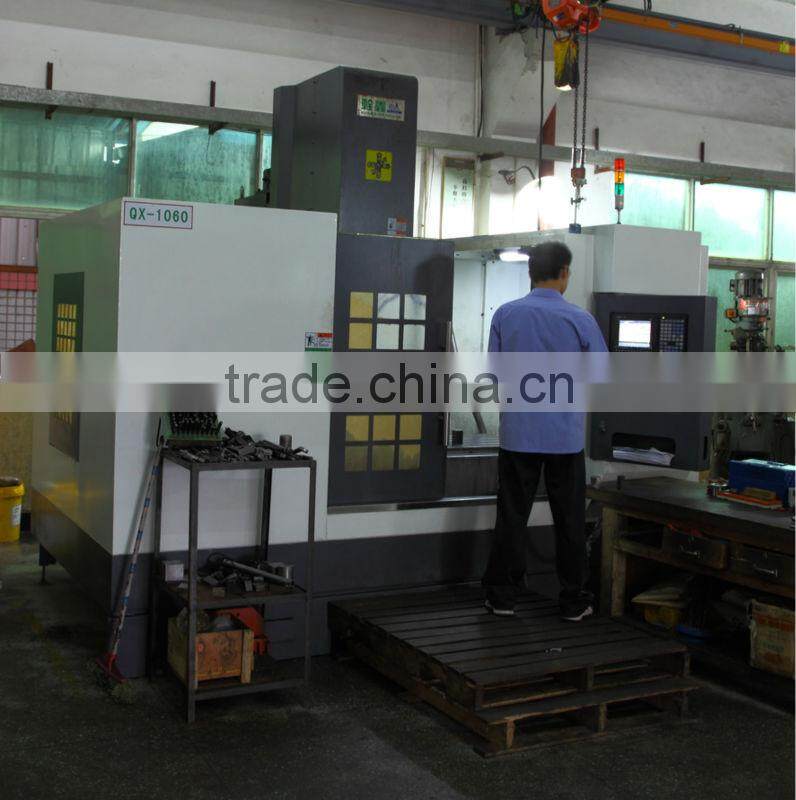

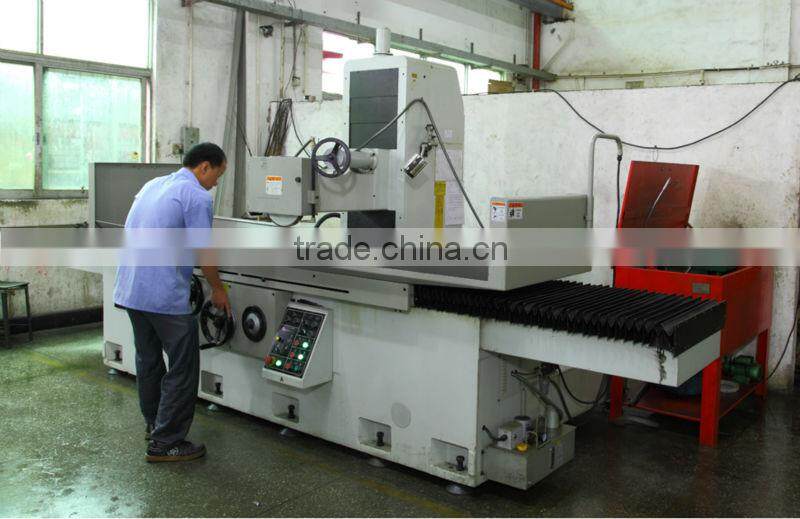

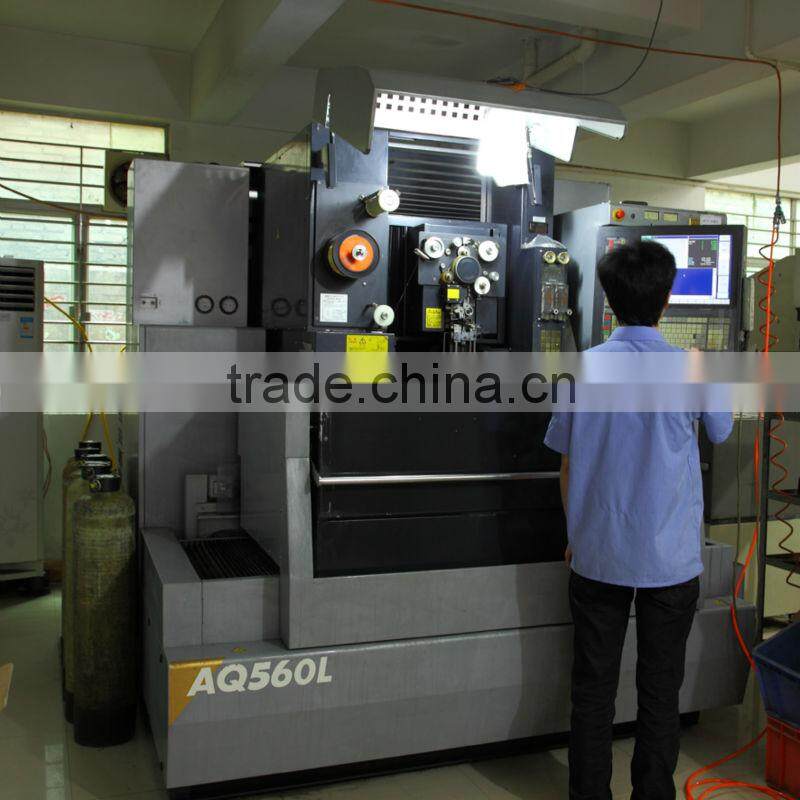

The company has a complete and scientific quality management system companies rely on advanced production equipment, strong technical force, good professional ethics, advanced processing technology, all the molds by experienced designers to develop design, first-class assembly technician is responsible for assembly. Can fully guarantee the mold precision, long life, long stability for our customers to maximize profits, the company's integrity, strength and product quality is recognized by the industry. The company has a high precision mold processing equipment: Sodick EDM Wire cutting machine, Charmilles EDM Wire cutting machine tools, large machining centers in Li Yang in Taiwan, Japan Okamoto precision surface grinder, Japan Okamoto precision molding grinders and so on. The company specializes in manufacturing various types of motor core, automotive electronics, meter, transformer core, the core high-speed electrical tools leveling progressive die, multi-station molding, large motor punching composite modulus. The company will always adhere to the "credibility and development, quality of survival" business philosophy, constantly striving for excellence quality to meet customer demand for the highest. Welcome friends to visit, guidance and business negotiation, JR staff sincerely look forward to working with you to create a win-win situation!



Technology details

AC Motor Lamination

We offer premium quality AC Motor Laminates that are fabricated from best quality materials, ensuring long life and durability.

Die Repair

The Die Service Department is responsible for the maintenance and repair of all production dies. There is no charge for die service or repair of a customer owned die as long as it was first manufactured and remains in the possession of Jiarun Tool & Die.

Design

A major engineering function is to work closely with customer personnel to ensure that the die design is the most economical and efficient for the type and complexity of the specific lamination. Engineering can assist in the customer’s product development by providing prototypes for test and evaluation using notch for laminations.

Prototype Manufacturing Services

Your lamination prototype is in good hands with the experts at Jiarun Tool and Die. For over decades, we have provided design engineers fast prototyping services in a wide range of industries and applications. We effectively communicate your project status through every step of the prototype cycle. Our manufacturing operations are designed for maintaining fast turn-around and expedited delivery.

DC Motor Lamination

We manufacture and supply DC Motor Laminations that are made from premium quality materials. Widely used in motors and pumps, our DC motor lamination products offer our customers the ultimate in high performance and accuracy.

Stamping

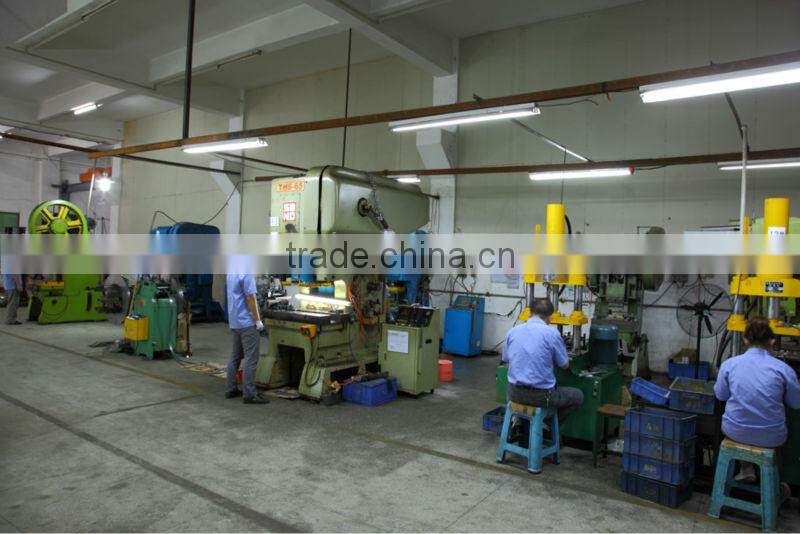

The Jiarun Tool and Die Stamping Department is equipped with a variety of high-speed presses with capacities up to 60 tons. In addition to production quantities, we can produce prototypes and short runs at economical prices including tooling with very short lead times. This is accomplished by using various processes that, depending upon the tolerances and complexity of the part, include notch tooling.

Motor & Generator OEM

With over decades in the Electrical Apparatus Industry, jiarun Tool & Die is your motor lamination partner of choice. Our sales and engineering staff will assist you in customizing a manufacturing solution using Lamination Stamping or Rotary Notching.

Production Manufacturing Services

Once your prototype achieves functionality, efficiency and quality, our manufacturing centers can quickly and cost effectively scale-up production to high-volume runs. We will help you determine the best manufacturing process available for your project, and assist in tailoring a customized manufacturing solution using our Lamination Stamping manufacturing metho
