Specifications
motor stator rotorsilicon steel tolerence 0.05mm
ISO9001;2008 ,14 years experience
motor stackcore lamination
wound tubular motor stator rotor

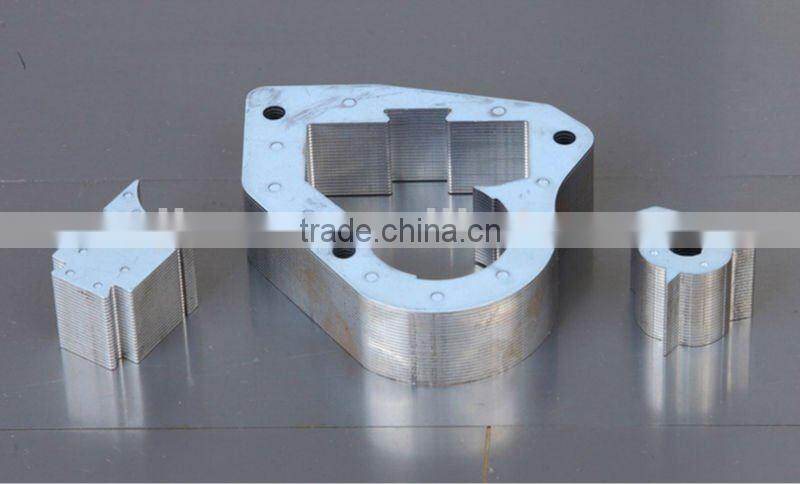

Motor stator rotor detail :
Material: silicon steel ,electric steel , stainless steel
Thickness:0.1mm,0.2mm,0.35mm,0.5mm,etc
Tolerance :0.05mm
Flatness:0.05mm
Certicality:0.1mm
Type: stamping
Mould : progressive stamping mould for stator rotor , single mould for stator rotor ,
Technology: interlock ,chute , point etc
Certificate:ISO9001;2008
Manufacture: OEM
After-sales service provided: engineers available to serbicxe machinery oversea
Stamping mould/tool/die for stator rotor
Material:SKD11,DC53, SAP-9,D2 ETC
Life span: more than 100000000
Type: progressive stamping mould/single mould
Punch and bottom : silicon steel
Our main product :1.brushless motor stator and rotor 2.brushed motor stator and rotor 3.vibration motor stator and rotor 4.induction motor stator and rotor5.SR motor stator and rotor 6.PM motor stator and rotor 7.DC motor stator and rotor8.universal motor stator and rotor 9.BLDC motor stator and rotor 10.AC motor stator and rotor 11.stepper motor stator and rotor12.induction motor stator and rotor 13.shaded pole motor stator and rotor 14.capacitor motor stator and rotor 15.pump motor stator and rotor 16.Motor bracket17.Motor cover18.Motor stamping part
19.Wounding stator and rotor
Application : Automotive ,electric appliance , coffee bean grinder motor ;Bathtub massaging machines motor ;vacuum cleaners motor;Electric screwdrivers motor ;Angle drills motor ; blenders motor; mixers motor;slicers motor ;electric knives motor ;soybean grindersmotor ; hairdryersmotor ; air pumps motor ; shredders motor lift motor ; hospital beds motor , accumulator cars motor , shredders motor , massagers motor
Progressive stamping
Progressive stamping for stator and rotor lamination is a stamping method that punches the strip material (cold-rolled electrical steel) in several stages before finally outputting the desired shape of stator/rotor lamination. Progressive stamping requires an automatic feeding system.
The feeding system pushes the strip through all stages of a progressive stamping die.
The final stage is a cutoff or output operation that separates the finished stator or rotor from the rest of the strip.
Progressive stamping for stator and rotor may be applied to loose sheets or auto-stacked motor core.
Stamping controller is required for auto-stacked motor core for defining number of strokes, shaft hole size selection and skewing/indexing parameters.
Progressive stamping dies are much more higher in price than compound dies. When production volume required is high, progressive stamping is preferred over compound stamping because it will save labor costs.
The procedure of mould | |
Drawings |
1, Received the 2D or 3D drawings and the technical requirement, we will give the quotation with delivery time as per your requirements. |
Sales Contract |
2, Sign the Mould Design and Manufacture Contract between two parties after receiving your production confirmation. |
Design Work |
3, We will start the design work (for this please send 3D drawings if possible, our specialists will be more efficiently work out the design with CAD/CAM/CAE systems) |
Mould |
4, We will give the mould drawings within 15 days (depending on the structure of the product), and we start the manufacture after your approval. |
Samples |
5,Then will be the first test, we will send you the samples by the ordered mould. |
Modification |
6,Mould modification until the customers satisfy it. |
Delivery |
7, We will delivery the mould after the above mentioned working process. |
mould name |
|
our product |
progressive stamping die ;single die ;transfer die ;punching die ;forming die ;bending die ;motor core stamping die ; |
die material |
silicon steel ;SKD11;SAP-9;DC53;AISI D2/JIS Din1.2379;ASP-23;SKH-9,etc |
punch and bottom |
silicon steel;D2 |
life span |
100000000 strokes |
die design |
PRO/E, Auto CAD, Solid Work , UG , Master CAM, Auto form; 20 Years experience ;10 professional engineers ;more than 100 customers |
die manufacture |
4 m CNC machine ;12 wire EDM machine ; 15 grinder machine |
tolerence |
0.05mm |
