About cup juice making machine
Cup juice making machine -Descriptions
This machine has washer, filler, and capper three functions in one body; it is automatic in total process, suitable for PET bottled mineral water, pure water and many other no gas containing drinks. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part’s operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
1. Using the wind sent access, with clamp hanging the bottle neck; which can keep the bottle shape and high-speed.
2. Bottles transmission adopts clip bottleneck technology, clean and fast.
3. Filling uses liquid cylinder feeding structure, filling valve uses new normal pressure filling, ensure the filling correct and stable.
4. Spiraling decline when output bottle, transform bottle no need to adjust the height of conveyor chains. Cap automatically.
5. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Cup juice making machine -Main data
| Model | RGF14125 | RGF18186 | RGF24248 | RGF323210 | RGF404012 | RGF505012 | CGF606015 |
| Washing/Filling/Capping heads | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 |
| Production capacity(600ml B/H) | 3000-4000 | 5000-6000 | 8000-12000 | 12000-15000 | 15000-18000 | 18000-22000 | 22000-30000 |
| Suitable bottle specification(mm) | φ :50-140 H:170-340 Vol:330-2500ml | ||||||
| Motor power(kw) | 4.8 | 5 | 6 | 8 | 12 | 15 | 18 |
| Overall dimension(mm) (L×W×H ) | 2250×1600×2300 | 2300×1700×2300 | 2900×1900×2300 | 4300×3500×2300 | 4300×3900×2300 | 4600×4300×2300 |
5100×4600×2300 |
| Weight(kg) | 2800 | 3800 | 5000 | 6000 | 8000 | 10000 | 12000 |
Cup juice making machine -Images show

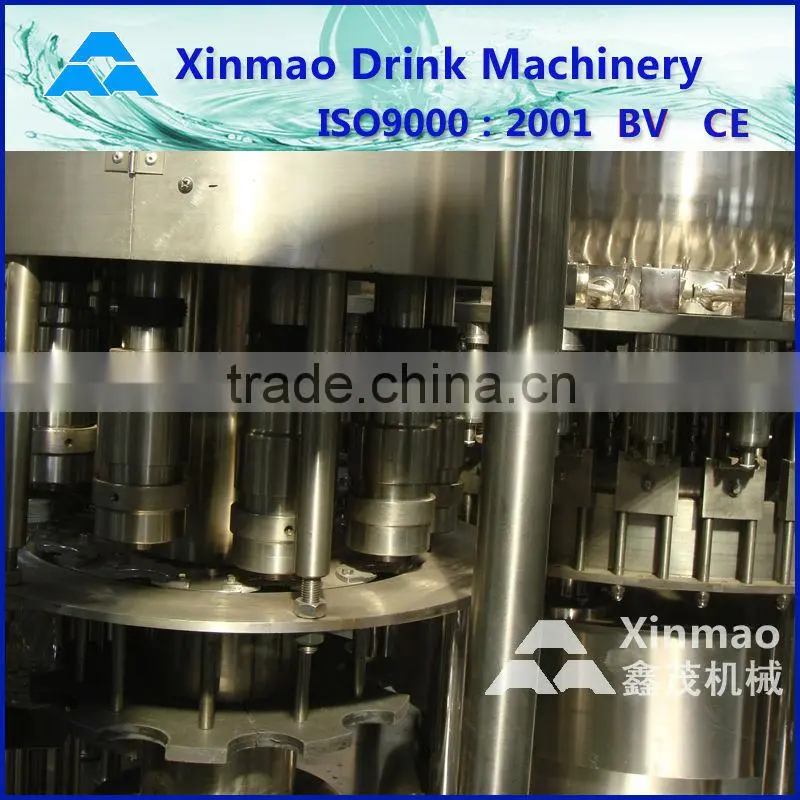

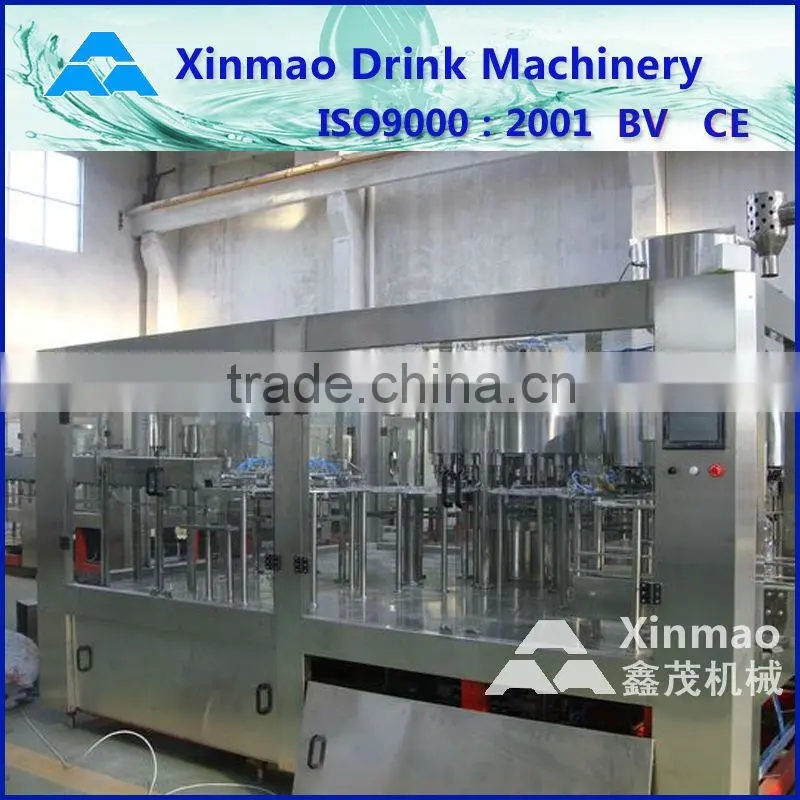

Panoramagram

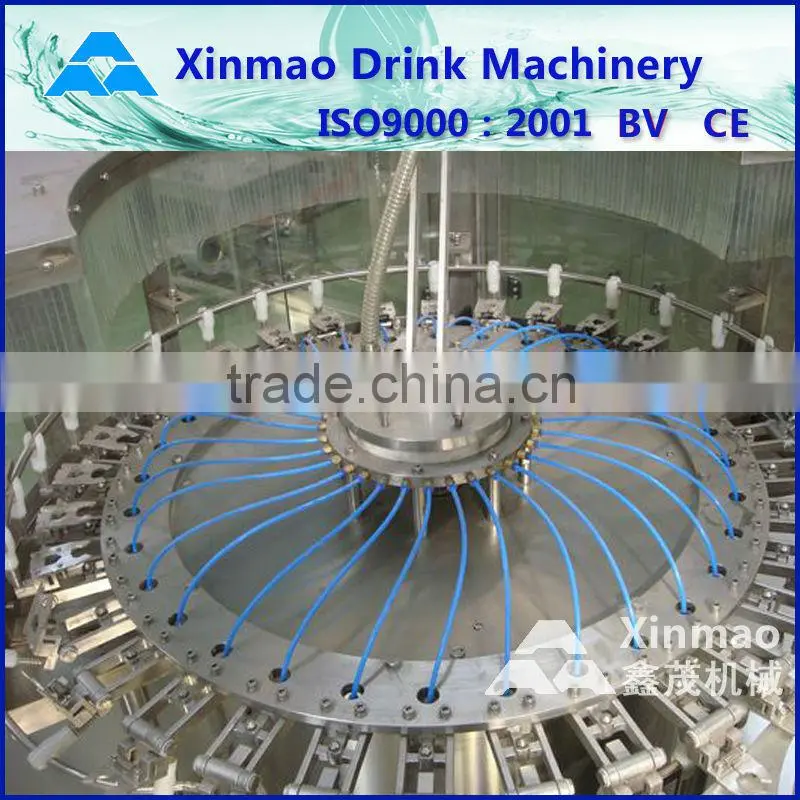

Washing part

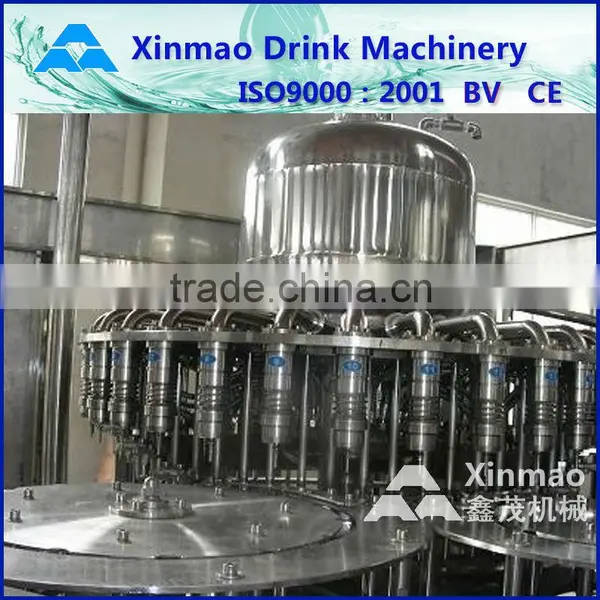

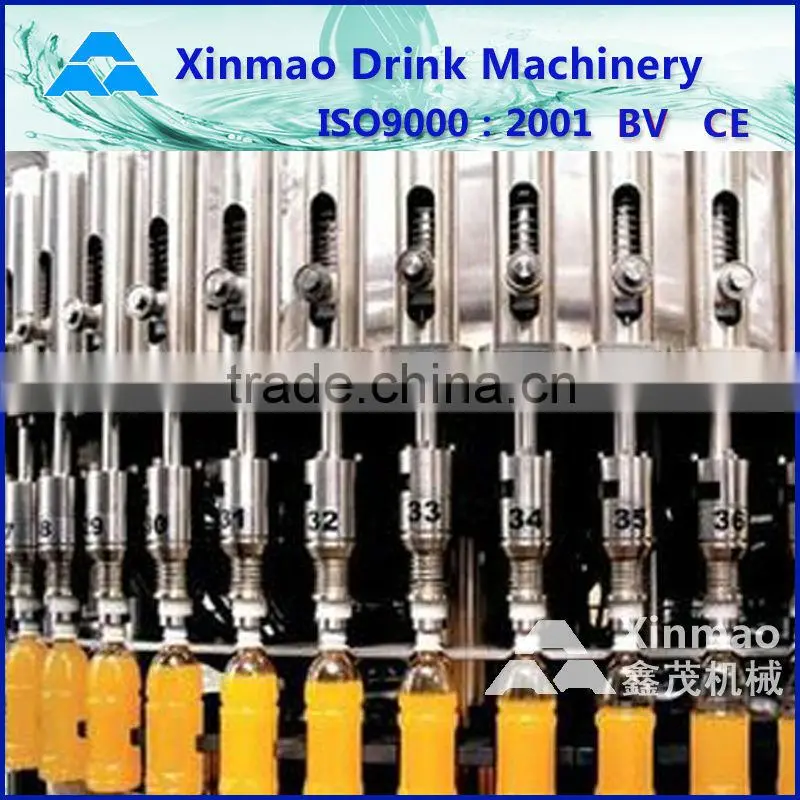

Filling part
Capping part
About us--Xinmao

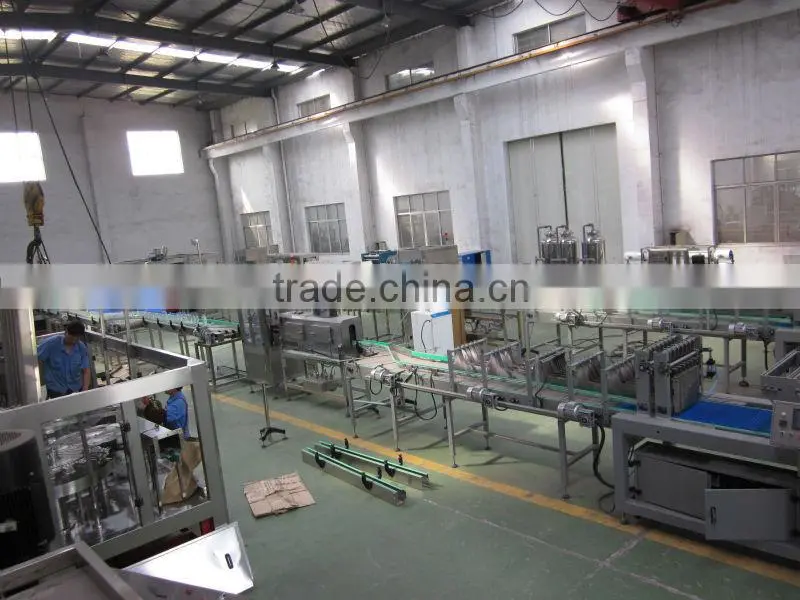

Factory
Workings
Packings
Certificate
Cooperation brand
For any further information about this machine,please contact us without hesitation,we will reply to you asap.Thank you and welcome to Xinmao.
