apple juice drink making line , small juice drink production line , semi-automatic juice filling machine
Product introduction

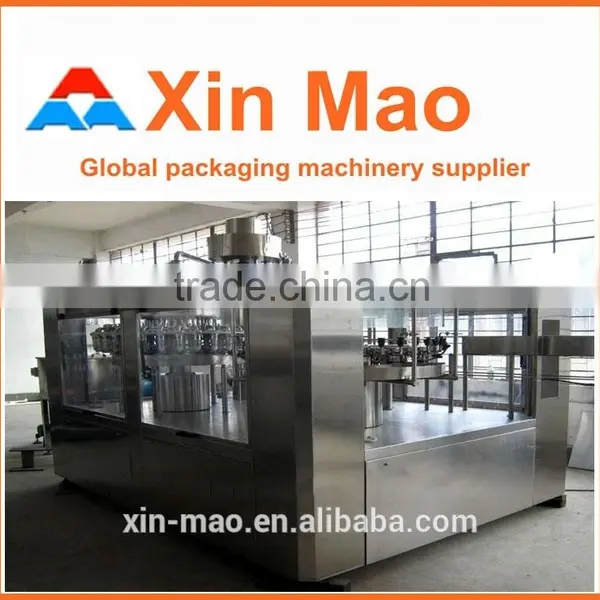

This machine has washer,filler,capper three functions in one body, it is automatic in total process and suitable for PET bottled juice and tea drink which can resistant high temperature. It also can be used for mineral water, pure water and many other no gas containing drinks. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part’s operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
Main features of the equipments:
1)Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.
2)Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.
3)Filling uses lifting valve, adopts micro pressure filling principle to ensure correct filling. 4)Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.
5)Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical data | ||||||
Model |
RCGF14125 |
RCGF18186 |
RCGF24248 |
RCGF323210 |
||
Number of washing, filling, capping |
14-12-5 |
18-18-6 |
24-24-8 |
32-32-10 |
||
Capacity; |
3000-4000 |
5000-6000 |
8000-12000 |
12000-15000 |
||
Suitable bottle size (mm) |
φ=50-108 H=170-340 330ml-2.25L |
|||||
Pressure (kg/cm2) |
2~3 |
|||||
Power (kw) |
Total motor 6kw |
Total motor 6kw |
Total motor 7kw |
Total motor 9kw |
||
Overall size (mm) |
2250x1600x2300 |
2300x1700x2300 |
2900x1900x2300 |
4300x3500x2300 |
||
Weight(kg) |
2800 |
3800 |
5000 |
6000 |
||
Technical data | ||||||
Model |
RCGF404010 |
RCGF484812 |
RCGF606015 |
|||
Number of washing, filling, capping |
40-40-12 |
50-50-12 |
60-60-15 |
|||
Capacity; |
15000-18000 |
18000-22000 |
22000-25000 |
|||
Suitable bottle size (mm) |
φ=50-108 H=170-340 330ml-2.25L |
|||||
Pressure (kg/cm2) |
2~3 |
|||||
Power (kw) |
total motor 13kw |
total motor 16kw |
total motor 19kw |
|||
Overall size (mm) |
4300x3900x2300 |
4600x4300x2300 |
5100x4600x2300 |
|||
Weight(kg) |
8000 |
10000 |
12000 |
|||
Washing part
Filling part
Capping part
Our factory and finished machine workshop
Packing
Our customer factory
