air motor lamination progressive stamping mould/die/tool specification:
1.Dedicated customer care services
2.ISO certified / stringent quality control for stamping mould
3.One-Stop service supplier
4.Experienced senior management team (engineering expertise

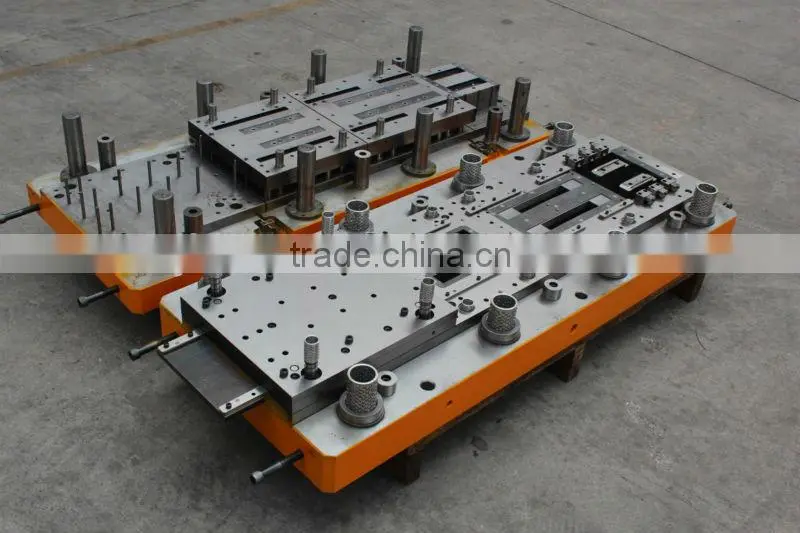

product display
the technology of air motor lamination progressive stamping mould/die/tool
QUALITY:tolerance of spare part is within 0.002mm , tolerance of feeding length is within 0.003-0.005mm , and groundness is within R0.05-0.5,
STATOR ROTOR Technology : stator rotor tolerance is within 0.05mm , concentricity is within 0.05mm ,
SPEED: stamping speed reach 350-400 strokes per minute .
Life : regarding life reaches 1 million to 5 million strokes , while total life from 100million to 200 million ,
Product size : we make stamping die for motor stator rotor from od 3mm to 1000mm ,
Technology:
1.auto interlocking
2. skewing
3.shoulder hole for stator rotor lamination
4.rotation for lamination within 180 degree .
Mould material: tungsten steel ,SKD11 , SAP-60, ASP-9 etc .
company profile
Shenzhen jiarun precision Mould Co., Ltd was established in 2006, specializes in all types of motor core and progressive dies. Since its establishment, relying on a professional worker and engineer team, ,advanced processing equipment, leading technology about motor core mould.now our company has become professional air motor lamination progressive stamping mould/die/tool manufacturer.
Spare part:we use wire EDM and grinders to process key parts in the die, and their machining precision is within 0.005mm,while roughness between Ra 0.05 and Ra0.4, on the other hands,we continuously work to improve the standardization, so that we can meet your requirements quickly with high quality.interlock and counter punch, slot punch , pilot punch , punch and die for weld notch ,ejection pin and kicher, interlock and counter cut die, slot cut die, pilot cut die, feed error protector, pilot pin , location pin, round pin, round lifer, notched round lifer.
The level of standardization and coverage rate of standard parts here in JR ranks among the best in this industry, we use alloy steel of high intensity, high speed steel or carbide materials for main mould parts likes upper plate, lower plate, spring –loaded strippers, and carbie parts, on the other hands, we not only introduce in auto feeding device and feeding error protector , but also precisely machining relevant holes in stripper plates, so that we can guarantee dimensions and relative locations for good mould intensity and long time.
