Professional Wired Conference Microphone YC811--YARMEE

 YARMEE Professional Conference System

Professional Wired Conference Microphone YC811

Product Description



Central Control Uint Features

• Inside sets double safety (DC & AC)
• Built in frequency shifting, restraining screaming.
• Teleconferencing is allowed with telephone coincidence.
• Speech controlling modes: A: free mode B: limited mode.
• Capable of telephones connection for remote teleconferencing.
• Up to 60 microphone units can work with one main controller, through extend power can be connected to 120 units.

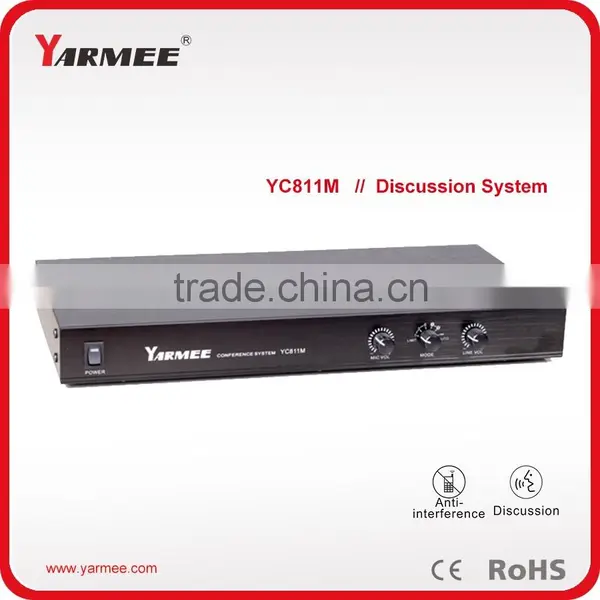

Central Control Uint Specifications

Name	YC811M Main Unit
Input/Output	8P-DIN*3
Power Supply	AC220V-50Hz
Current Drain	70W(MAX)
Sensitivity	-55dB
S/N	70dB
Frequency response	100-14KHz
Dimension	480*350*44mm
Weight	4kg

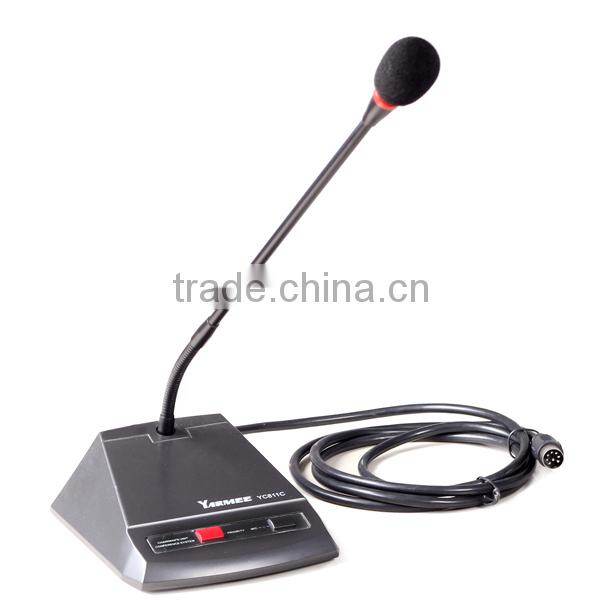

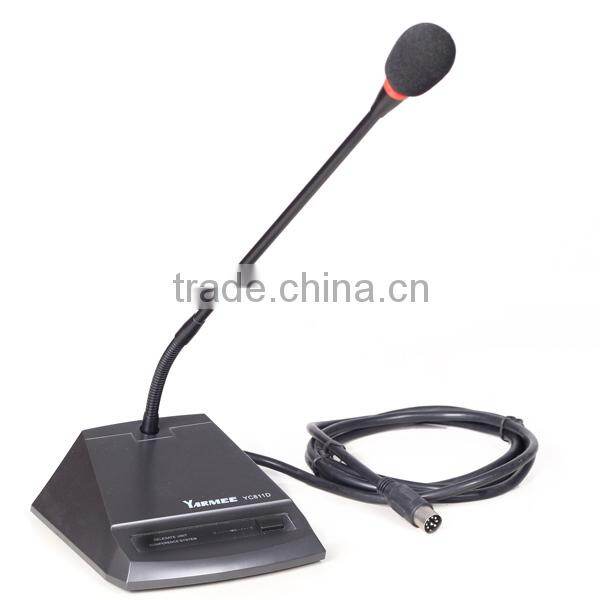

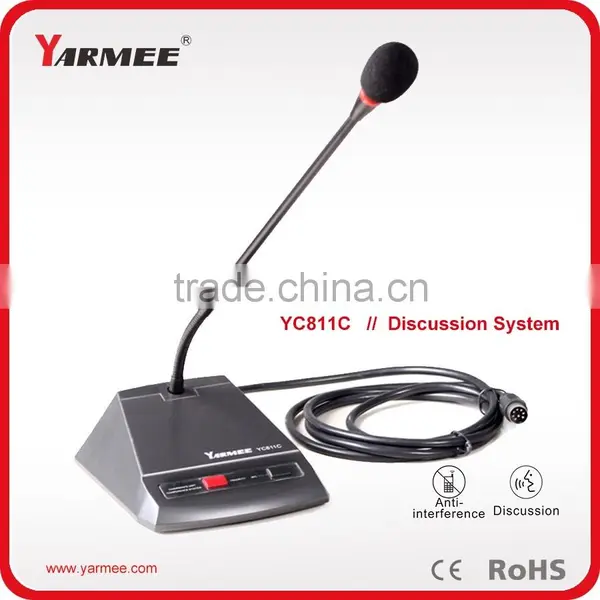

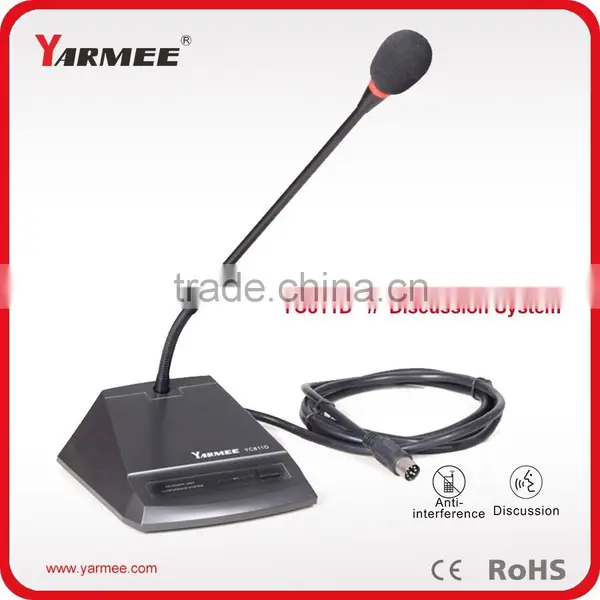

Microphone Features

• Match with 2.1M connection cable.
• There is no limit to the chairman unit quantity and it can be put in any location.
• Chairman unit can shut down all delegates.
• Uni-directional condenser microphone: gooseneck microphone with red ring indicator LED.

Microphone Specifications

Name	YC811C/D MIC Unit
Input/Output	8 P-DIN*1(2M)
Input	Condenser Microphone
Power Supply	DC24V
Current Drain	40mA
Sensitivity	-47dB
S/N	65dB
Frequency response	100-10KHz
Weight	0.8kg
Dimension(W*D*H)	135*155*65mm
Color	Gray Black
Length of gooseneck	400mm





About Us

YARMEE ELECTRONIC TECHNOLOGY CO., LIMITED  mainly engaged in conference system & microphone which collects together research and development (R&D), production and sale.  Professional enterprise of the series of Microphones, various types of microphone.

Main products are: simultaneous interpretation, Wireless Microphones, Conference Microphones, gooseneck microphones, wired microphones, and drum microphones, UHF wireless microphones,teaching microphones, recording microphones,and microphone accessories, we will do greater efforts to develop new products, expand the product line.

Our Factory

 YARMEE has a standard workshop more than 2000 meters, is located in Yuewang Building, Baiyun District,Guangzhou, Guangdong. With offices and manufacturing facilities, transportation is convenient!
