Wired Audio Discussion Conference System With Chairman And Delegate Microphone ----Yarmee
Overviews
YC822 is a multifunctional conference system central unit ,which centralized processing and control discussion ,clear sound,hi-fidelity,build-in mute function ,supporting USB recording function,support to connect up to 60 units microphone ,through extrnd power can connect 120 units,it supports for multiple meeting modes
Features

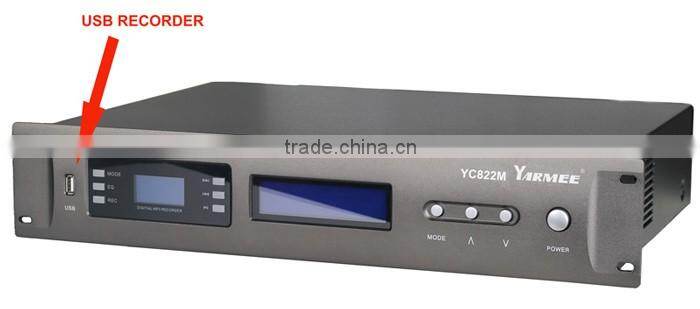

YC822M YARMEE CONFERENCE SYSTEM Main Controller
1,Built-in for recording by USB.
2,highly resistant to mobile phone interference.
3,Master control volume, LCD meeting place display alive.
4,Capable of telephones connection for remote teleconferencing.
5,The rack hole: fixed the main machine in the 19''standard rack.
6,Clear sound, hi-fidelity, Build in mute function,and easily to setup.
7,LCD screen: Display the main machine’s working mode and working condition.
8,The main machine has 3 route can connect 60 units, through extend power can connect 120 units.
9,Four speech controlling modes:
A. Limited mode:1/3/6
B.FIFO: Only 1 unit can be ON, The last one unit ON will be cut off the first one
C. Chairman Mode: Only Chairman can be ON.
D.Free mode: The entire unit can be ON

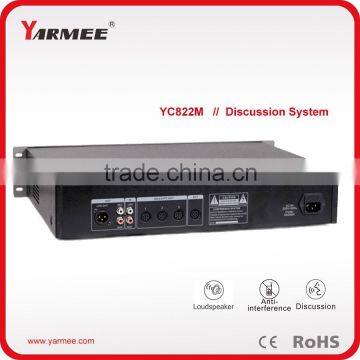

YC822M SPECIFICATIONS
| NAME | YC822M Main Machine |
| input/output | 8P-DIN×4 |
| input | XLR*1 RCA*2 |
| output | XLR*1(Balance)RCA*1 |
| power supply | AC220V-50HZ |
| current drain | 120W(MAX) |
| frequency response | 100-14KHZ |
| dimension | 480×325×85mm |
| weight | 9.5kg |
| colors | Dark Gray |

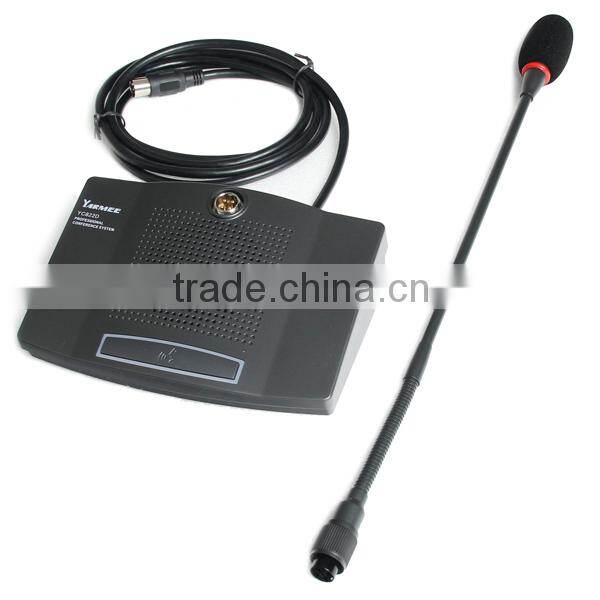

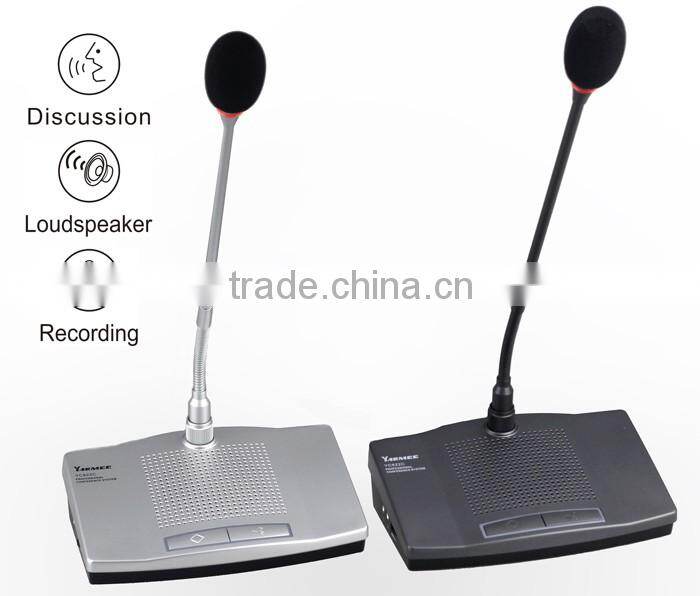

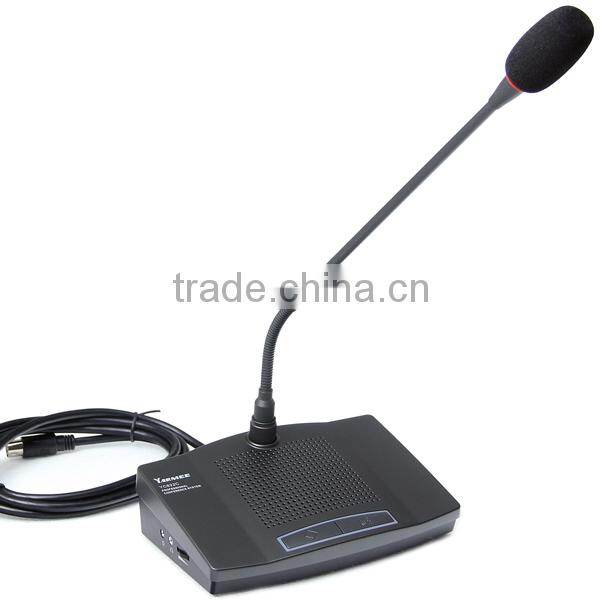

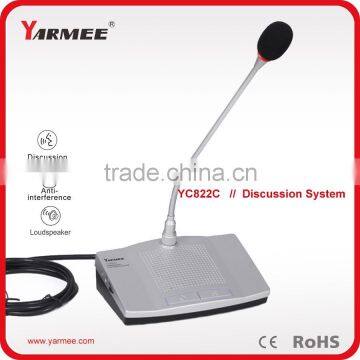

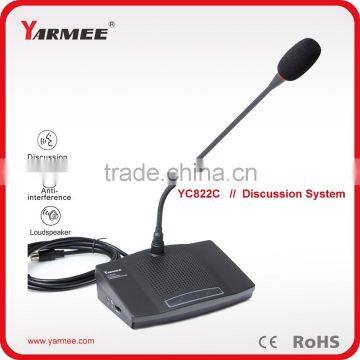

YC822C/D Chairman/Delegate Unit
>. Match with 2.1M connection cable.
>. Highly resistant to mobile phone interference
>. With two microphone input design (adding the lapel microphone hub )
>. Inside work with DC24V power by Main machine, It’s safety for users.
>. Loudspeaker with auto mute has earphone jack and volume adjusting knob.
>. Chairman unit with priority speaking, can off each representative speaking unit.
>. Chairman can shut down all delegates
>. Cardioid condenser microphone: gooseneck microphone with red indicator LED
>. Open the microphone automatically mute speakers with headphone jack and volume control knob.
YC822C/D SPECIFICATIONS
NAME |
YC822C/D MIC UNIT |
input/output |
8P-DIN×1(2M) |
input |
Condenser Microphone |
power supply |
DC24V(Supplied by the host) |
current drain |
40mA |
sensitivity |
-47Db |
s/n |
65Db |
frequency response |
100-10KHZ |
weight |
1.1kg |
dimension(W,D,H) |
190×130×56mm |
colors |
Silver/Gray Black |
installation |
Desktop |
MIC Stem Length |
400mm (Activity) |
Packing
Company Information
About Us
YARMEE ELECTRONIC TECHNOLOGY CO., LIMITED mainly engaged in conference system & microphone which collects together research and development (R&D), production and sale. Professional enterprise of the series of Microphones, various types of microphone.
Main products are: simultaneous interpretation, Wireless Microphones, Conference Microphones, gooseneck microphones, wired microphones, and drum microphones, UHF wireless microphones,teaching microphones, recording microphones,and microphone accessories, we will do greater efforts to develop new products, expand the product line.
Our Factory
YARMEE has a standard workshop more than 2000 meters, is located in Yuewang Building, Baiyun District,Guangzhou, Guangdong. With offices and manufacturing facilities, transportation is convenient!
Our Certifications

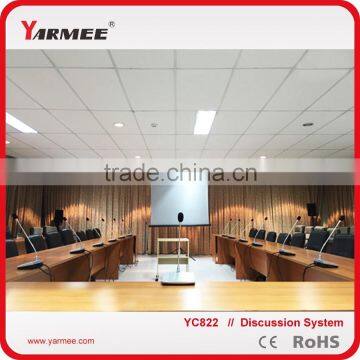

Success projects
1. Q: Are you Manufacturer or Trading company?
A: We are the manufacturer have rich experience
2. Q: What is your delivery time?
A..4~5 days after received money
3.Q : What's your main products?
A.Conference system and simultaneous interpretation system,wirelss tour guid stystem
4.Q: Can we visit your factory?
A: yes, warm welcome to visit our factory anytime.
