Help CenterShaded Pole Motor Lamination Progressive Stamping Tool/mould/die , Motor Stator Rotor Tool
Related Products
-
IC Precision Stamping Mould /tool , Stamping Die for IC , Punch DieUS$ 1 - 2MOQ: 1 Set -
Aluminum Deep Drawing Die /mouldUS$ 1 - 2MOQ: 1 Set
-
Deep Drawing Part for Office EquipmentUS$ 1 - 2MOQ: 1 Set
-
Deep Drawing Tool for PotNegotiableMOQ: 1 Set
-
Sheet Metal Stamping Tool/die/mould for Motor CaseUS$ 1 - 2MOQ: 1 Piece
Specifications
motor lamination stamping tool ,ISO9001;2008, tolerence :0.05mm ,
life is more than 150 million ,
motor lamination progressive stamping tool

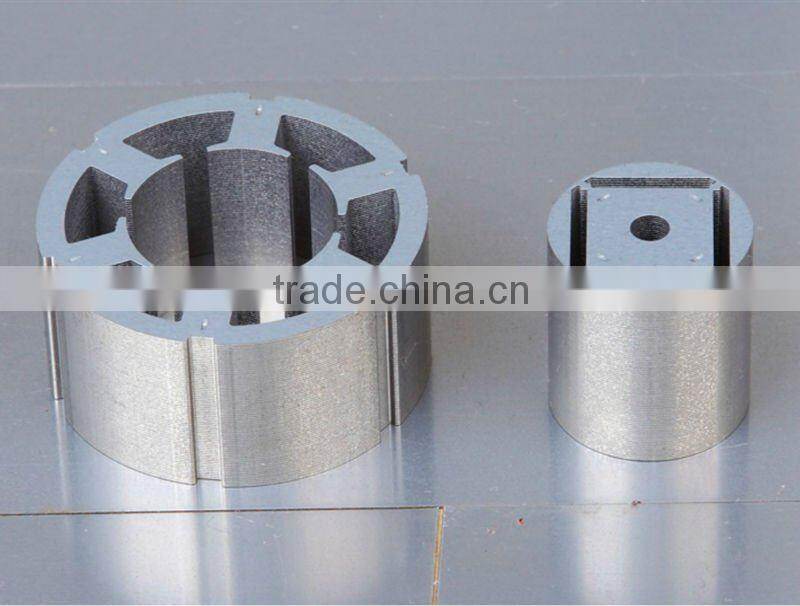

Progressive stamping die for motor stator rotor lamination technology
QUALITY:tolerance of spare part is within 0.002mm , tolerance of feeding length is within 0.003-0.005mm , and groundness is within R0.05-0.5,
STATOR ROTOR Technology : stator rotor tolerance is within 0.05mm , concentricity is within 0.05mm ,
SPEED: stamping speed reach 350-400 strokes per minute .
Life : regarding life reaches 1 million to 5 million strokes , while total life from 100million to 200 million ,
Product size : we make stamping die for motor stator rotor from od 3mm to 1000mm ,
Technology: 1.auto interlocking
2. skewing
3.shoulder hole for stator rotor lamination
4.rotation for lamination within 180 degree .
Mould material: tungsten steel ,SKD11 , SAP-60, ASP-9 etc .
|
Stator and rotor |
1.brushless motor stator and rotor 2.brushed motor stator and rotor 3.vibration motor stator and rotor 4.induction motor stator and rotor 5.SR motor stator and rotor 6.PM motor stator and rotor 7.DC motor stator and rotor 8universal motor stator and rotor 8.BLDC motor stator and rotor 9.AC motor stator and rotor 10.stepper motor stator and rotor 11.induction motor stator and rotor 12.shaded pole motor stator and rotor 13.capacitor motor stator and rotor 13.pump motor stator and rotor |
Application |
universal motor stator and rotor are used in electric motor ,shredder motor ,cleaner motor etc. shaded pole motor stator and rotor are used in fan motor,hair drier motor ,cleaner motor etc. capacitor motor stator and rotor are used in air-condition motor ,refrigerator motor ,fan motor ,exhaust fan motor ,kitchen ventilator etc |
Motor part |
Motor bracket , motor cover , motor metal part , motor brush sleeve , motor washer , motor locating plate ,motor wire terminal,motor case,motor body, motro rvt rivet ,motor bearing table,motor metal ribbon, motor lamination , rotor middle shaft |
Stamping capacity |
we have 25 sets press machine from 20-220T , 12 sets wire EDM machine , 20 sets grinder machine , 5 sets large CNC machine,ISO9001;2008 |
Service |
we offer the stator and rotor coating we offer the stator and rotor winding we offer the stator and rotor casting aluminum we offer the rotor middle shaft |
Place of Origin |
Guangdong, China (Mainland) |
Brand Name |
JR |
Model Number |
jr2130 |
Size |
according to need |
Type |
metal stamping parts |
type2 |
custom parts |
material |
metal |
surface treatment |
according to need |
tolerance |
accoding to custmer's drawing |
quality guarantee |
2D and 3D test equipment |
certificate |
ISO9001:2008. |
After-sales Service Provided |
guarantee replacement |
price |
large order can get discount |
type |
OEM and other |
Motor lamination progressive stamping mould
JR motor core die : product series of progressive die , various laminations and cores for motors which involve air-condition compressor motor , refrigerator motor , plastic sealing motor, automobile motor , generatoe motor , stepping and servo motor , universal motor , shaded pole motor , dc motor
JR mould capacity : we are make progressive stamping dies for lamination from 3mm to 2000mm , the maximum die that we have made is for 700mm stator rotor lamination , meanwhile, we are capable of functions like interlocking , skewing , shoulder holes for laminations from 5mm to 300mm , and rotation for laminations within 180mm
Spare part:we use wire EDM and grinders to process key parts in the die, and their machining precision is within 0.005mm,while roughness between Ra 0.05 and Ra0.4, on the other hands,we continuously work to improve the standardization, so that we can meet your requirements quickly with high quality.interlock and counter punch, slot punch , pilot punch , punch and die for weld notch ,ejection pin and kicher, interlock and counter cut die, slot cut die, pilot cut die, feed error protector, pilot pin , location pin, round pin, round lifer, notched round lifer.
The level of standardization and coverage rate of standard parts here in JR ranks among the best in this industry, we use alloy steel of high intensity, high speed steel or carbide materials for main mould parts likes upper plate, lower plate, spring –loaded strippers, and carbie parts, on the other hands, we not only introduce in auto feeding device and feeding error protector , but also precisely machining relevant holes in stripper plates, so that we can guarantee dimensions and relative locations for good mould intensity and long time.
