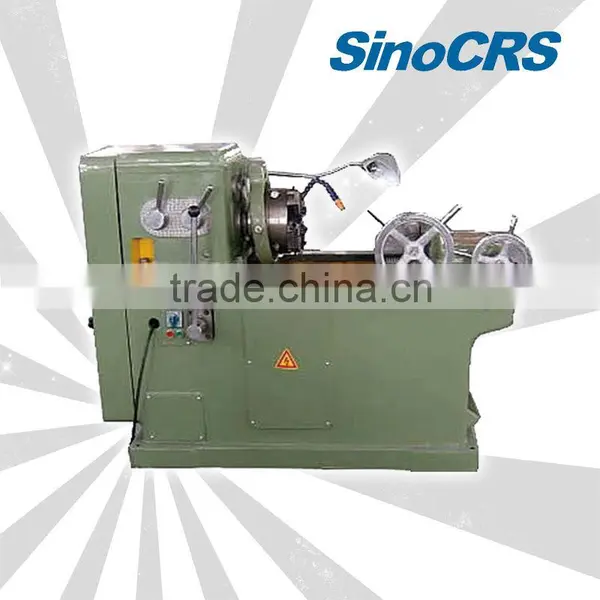

SinoCRS Steel Rod Thread Cutting Machine
- 3000 Set / Sets per Month
- Tianjin
- T/T Credit Card
- Pipe Threading Machine, Rebar Thread Cutting Machine
- Pipe Threading Machine, Pipe Thread Cutting Machine
- CRS 8139 Steel Rod Threading Machine
- Steel Rod Threading Machine
- CRS8139 Rebar Thread Cutting Machine( tangential chaser )
- CRS8139 tangential chaser threading machine, Rebar Thread Cutting Machine
Product Details
Condition: | New | Application: | process taper thread on rebar | Production Capacity: | 47-318r/min |
Place of Origin: | Beijing, China | Brand Name: | Sinocrs | Model Number: | CRS8139 |
Voltage: | 380V | Power(W): | 3kw | Dimension(L*W*H): | 1570*610*1150mm |
Weight: | 950kg | Certification: | Certificate of honor | Warranty: | According to the factory policy |
After-sales Service Provided: | No overseas service provided |
Packaging Details
Wooden box & Pallet, or according to customers' demand
Product Description
Specifications
Taper Thread Rolling Machine is used for process taper thread on rebar.Thread Cutting Machine
Application:
The anchor bolt thread cutting machine is mainly used for rough threading bolts, screw rods and pipes, and also for cutting threads on cylindrical workpieces after being turned.
1) Maximum diameter cutting thread is 39mm
2) Maximum diameter length of thread cutting is 300mm
Features:
1) A control rod with trip dogs is provided to enable the tangential chasers to be opened automatically at the end of the pre-set threading stroke;
2) The spindle speeds can be easily adjusted due to a wide range of speed changes selections.
Therefore this machine is suitable for batch production in various industries.
3) When processing the cutting operation, the work is to be held in a vice on the work saddle and fed, through turning of the handwheel, to the rotating die head until it is gripped by the chasers automatically for cutting the thread. The axis of the work is aligned with that of the die head so that the thread cut is accurate and smooth.
Main Specification:
Max. Threading Diameter | Metric Thread | 39mm |
Pipe Thread | 5/4in | |
Min. Threading Diameter | Metric Thread | 10mm |
Pipe Thread | 1/4in | |
Dia. of work gripped in vice | Max. | 70mm |
Min. | 9mm | |
Max. Threading Length | 300mm | |
Spindle Bore | 45mm | |
No. of Spindle Speed | 6 | |
Spindle Speed | 47, 75, 118, 126, 202, 318 rpm | |
Die Head Tangential | 1 set | |
Type of Tangential Chaser | Tangential Type | |
Main Drive Motor (Power/Speed) | 3kw/1440rpm | |
Coolant Pump Motor(Power/Speed) | 0.120kw/3000rpm | |
Delivery Capacity | 251/min | |
Type & No. of Vee Belts | A-1829 3pcs | |
Dimension: | 1570*610*1150mm | |
Weight | 950kg |
Maximum diameter cutting thread is 39mm
Maximum diameter length of thread cutting is 300mm
