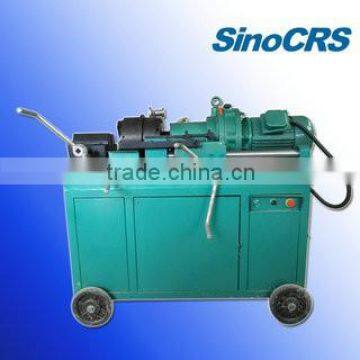

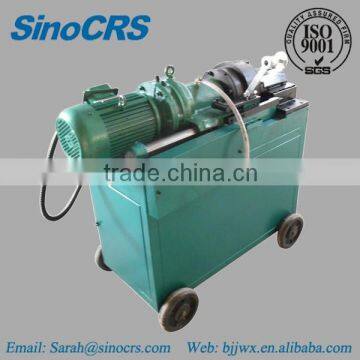

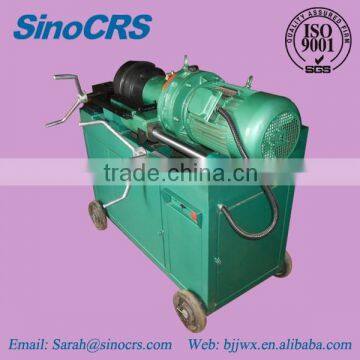

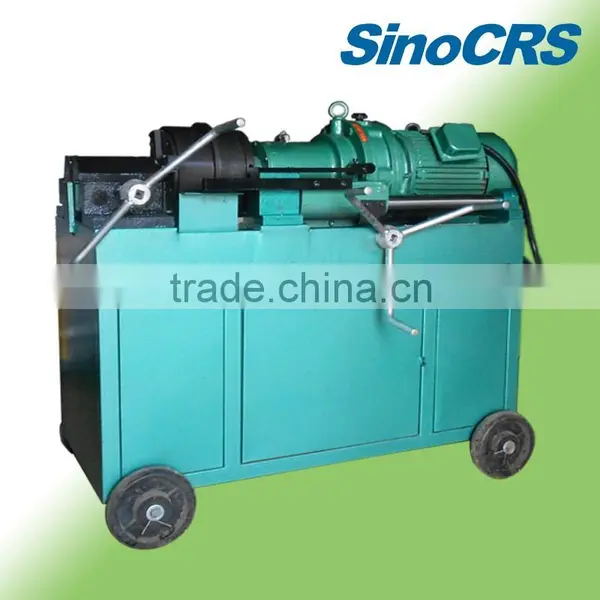

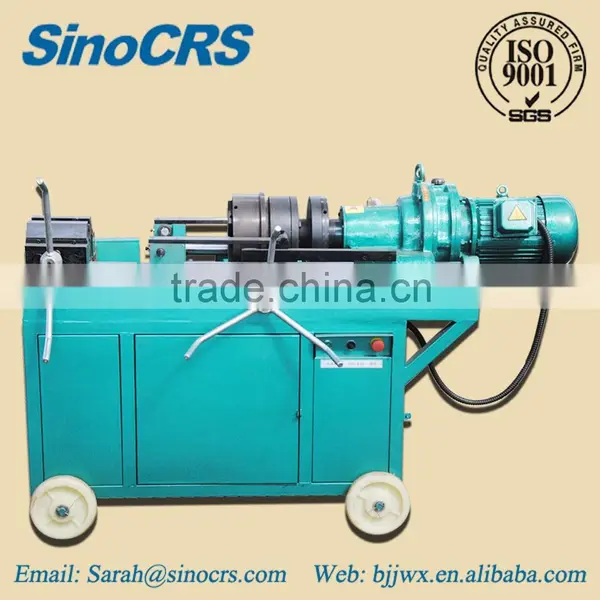

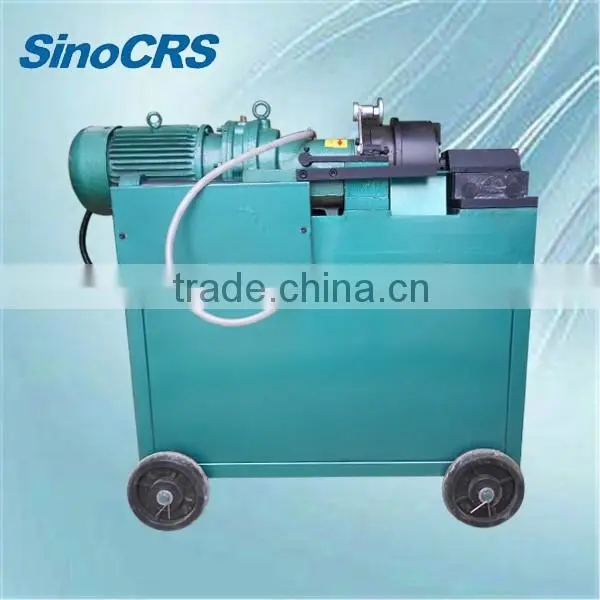

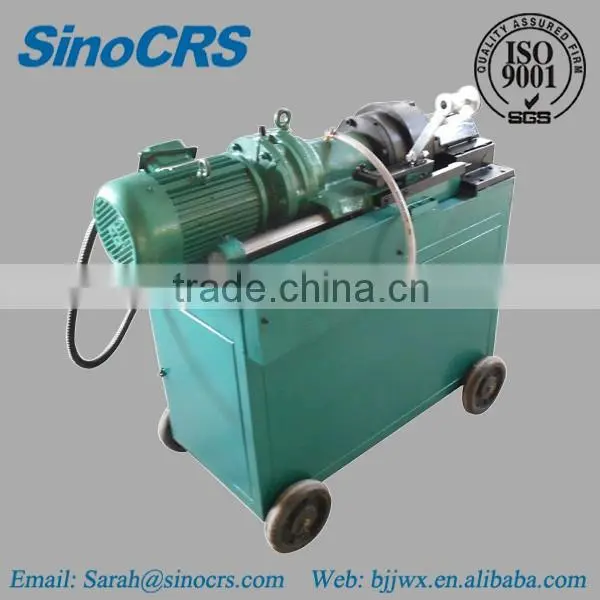

South africa directional steel bar straight threaed srew rolling machine
Product Show
South africa directional steel bar straight threaed srew rolling machine is mainly used in processing straight thread head of 16-40mm HRB335, HRB400 reinforcing steel bar. Our products has entered into many overseas markets and won the recognition.
Specification
Model | CRS40-200 | Max Thread Length | 200MM |
Thread Pitch | 2.0mm,2.5mm, 3.0mm,3.5mm | Rebar Diameter | 16-40MM |
Thread Angle | 60°/75°,Customized | Motor Speed | 1440r/min |
Thread Type: | Parallel | Rated Speed | 62r/min |
Motor Power: | 4/5.5KW | Reduction Ratio | 1:17/1:23 |
Voltage | 380V-50hz | Net Weight | 400kg |
Color | customized | Package | Wooden Case, As Customers’ Request |
Dimension: | 1280*680*1270 | Certification | ISO9001 |
Operation Flow | 1 Rip Peeling of Rebars 2 Rolling Parallel Threads on Rebar Head | ||
Applied in | 1 Constructions 2 Nuclear power station 3 Railway station 4 Power transmission tower; etc | ||
Producing Process
1. Strip the steel ribs
2. Rolling on the stripped rebar head
3. The processed steel automatically drawback
Packing & Shipping
The thread rolling machine will be covered with plastic cloth, packed with an carton, then shipped to the port and finally deliver to the destinated port for you.
Our Services
1. After replacing machine head, the machine can process rebar Φ12 and Φ14
2. 220V can be customized
3. The Motor Power, Reduction Ratio, and Max Thread Length can be customized, so you can customize your own rebar thread rolling machine.
