The main products include V-belt ,timming belt,ribbed belt,raw edge cogged v-belt,variable speed belt,etc which are used in the filed of automotive,truck,motocycle and industry agriculture,household appliance.
Welcome to contact us,we hope to bulid good cooperation with you.
Features of Rubber Timing Belt
- It may solve the problems such as low transmission efficiency and lubrication oil required under the status of high speed when suing the chain,distance limit between the drive part and the slave drive part when using the gear.
- Glass fiber as tensile member.no elongation of rubber belt.
- Excellent heat-resistance,oil-proof,and wearing resistance
- Higher transmission efficiency can be guaranteed under the condition of large change of operation speed and temperature.
Structure of Rubber Timing Belt
No. |
Name |
Function |
Material |
1 |
Top Rubber |
Protect the lining tensile member |
CR HNBR |
2 |
Tensile Member |
Core material to pass the dynamic force |
Glass Fiber |
3 |
Teeth Rubber |
Protect the tensile member and maintain the shape of the rubber |
CR HNBR |
4 |
Teeth Fabric |
Maintain the shape of the adhesive |
Elastic Fabric |
The transmission of synchronous beit is a new transmission mode and transmits the dynamic torce by the meshing of the belt teeth and pulley,lt combines respective advantages of gear transmission,chain tramission and transmission.
| Structure |
No. |
Name |
Function |
Material |
1 |
Top Rubber | Protect the linling tensile member |
CR HNBR |
2 |
Tensile Member | Core material to pass the dynamic force |
Glass Filber |
3 |
Teeth Rubber | Protect the tensile member and maintain the shape of the rubber |
CR HNBR |
4 |
Teeth Fabric | Maintain the shape of the adhesive |
Elastic Fabric |
| Feature |
| lt may solve the problems such as low transmission efficiency and lubrication oil required under the status of high speed when suing the chain,distance limit between the drive part and the slave drive part when using the gear. Glass fiber as tensile member.no elongation of rubber belt. Excellent heat-resistance,oil-proof,and wearing resistance Higher transmission efficiency can be guaranteed under the condittion of large change of peration speed and temperature. lts performance can be exerted stably and safely during the process of high-speed rotation. |
| T Type lndustrial Synchronous Belt |
Type |
Pith(mm) |
Tooth height(mm) |
Belt thickess(mm) |
Angle() |
MXL |
2.032 |
0.51 |
1.14 |
40 |
XXL |
3.175 |
0.76 |
1.52 |
50 |
XL |
5.08 |
1.27 |
2.30 |
50 |
L |
9.525 |
1.91 |
3.60 |
40 |
H |
12.70 |
2.29 |
4.30 |
40 |
XH |
22.225 |
6.35 |
11.20 |
40 |
XXH |
31.75 |
9.35 |
15.70 |
40 |
T2.5 |
2.5 |
0.70 |
1.30 |
40 |
T5 |
5 |
1.20 |
2.20 |
40 |
T10 |
10 |
2.50 |
4.50 |
40 |
T20 |
20 |
5.00 |
8.00 |
40 |
AT5 |
5 |
1.20 |
2.70 |
50 |
AT10 |
10 |
2.50 |
5.00 |
50 |
AT20 |
20 |
5.00 |
8.00 |
50
|

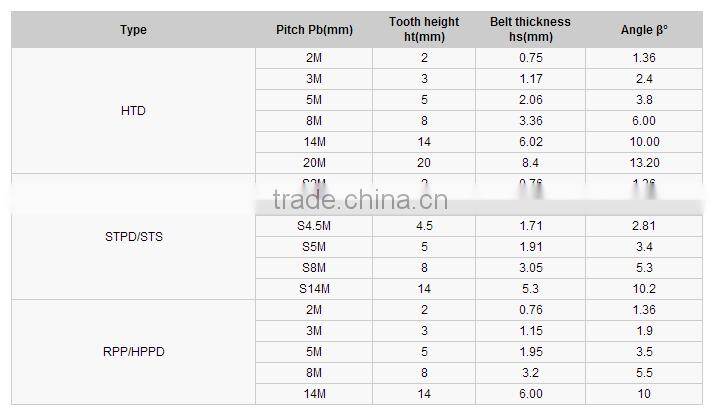

Arc tooth industrial rubber synchronous belt
Are you a trading company or manufacturer? |
We are manufacturer.
|
What kinds of products we supply? |
V-BELT,TIMING BELT,RIBBED BELT,TRANSMISSION BELT,WRAPPED BELT,RAW EDGE COGGED V BELT,ETC. |
Do you Accept OEM service? |
YES! |
What's your Delivery Time? |
1)generally the samples will be sent immediately by the air express in 5-7 days if the goods are in stock. |
2) Normally within 30 days, please confirm with us before order! | |
How you pack products? |
Plastic rope+Carton |
What's your available port of Shipment? |
Normally, ningbo Other ports available but you should afford extra charges. |
Can you provide sample? |
Yes, product samples are warmly welcomed. You only need to pay for the shipping cost. |
How to pay? |
We accept T/T, Western Union |
