Help CenterManufacturer Sale Various Specifications Wedge Filter Cartridge, Wedge Filter, Wedge Filter
Related Products
-
Stainless Steel Wedge Filter With High Precision Straight Wedge Filter Various TypesUS$ 5 - 100MOQ: 10 Pieces -
Manufacturer Selling Foam Molding Machine Wedge Filter With Wedge Wire ScreenUS$ 4 - 100MOQ: 10 Pieces
-
Manufacturer Customized Best Wholesaler of Stainless Steel Cone Filter Wedge Wire Filter Cone ScreenUS$ 4 - 100MOQ: 10 Pieces
-
a Wider Range of Application Scree Tube Wedge Filter With High EfficientUS$ 4 - 100MOQ: 10 Pieces
-
Manufacturer Selling High Performance Stainless Steel Wedge Wire Precision FilterUS$ 5 - 120MOQ: 10 Pieces
standard material 304, 316,316L stainless steel wire mesh screen tube

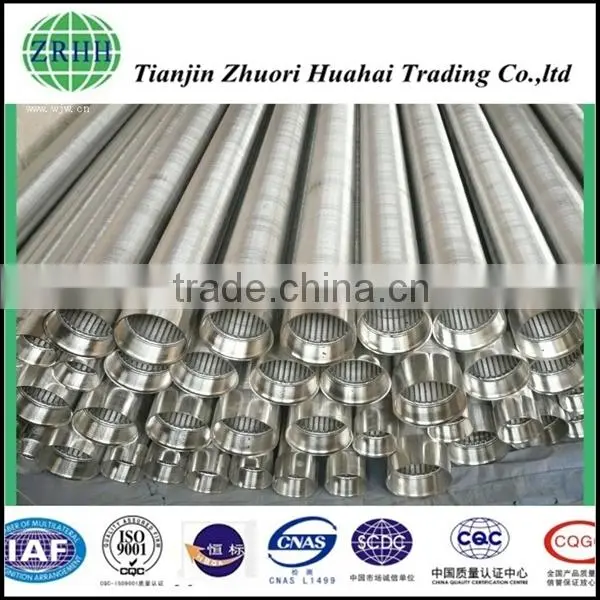

V-Wedge Wire Screen Filter

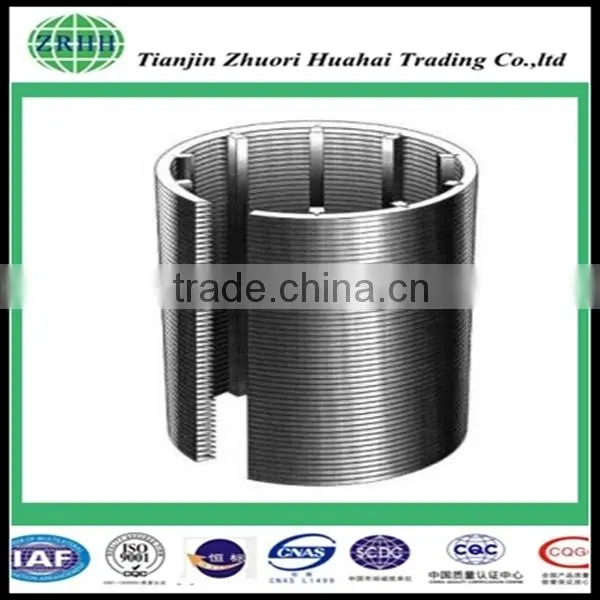

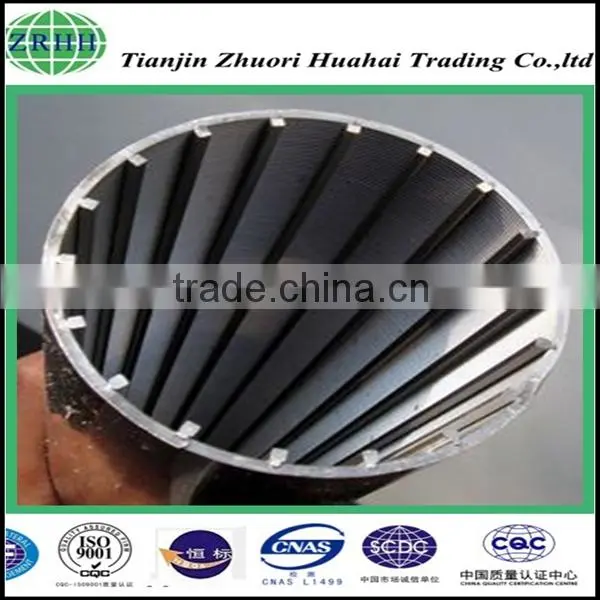

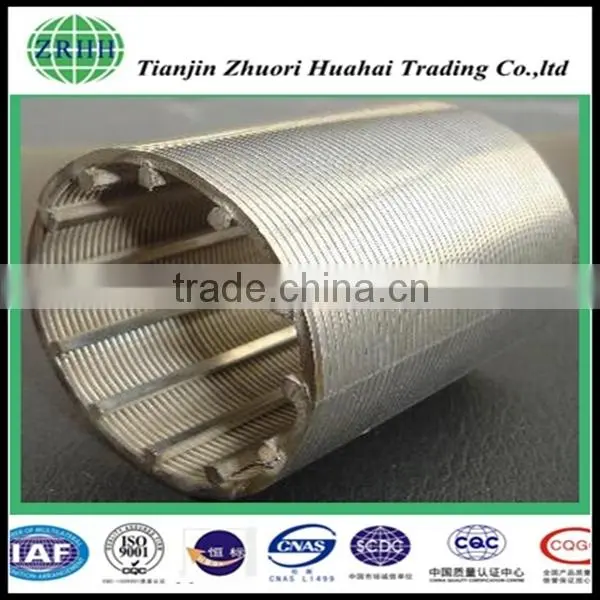

strainer pipe is composed of rib strips and V shaped wires through manufacturing on specialize machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, 0.1mm slot gap, and can be selected by client in any way.
Material
3040Cr18Ni9
3211Cr18Ni9Ti
316L00Cr17Ni14Ni14Mo2
Product Characteristic
1: It has high mechanical strength, can bear large pressure drop.
2: It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3: The wedge type slot can improve backflushing and regeneration performance.
4: It has resistance to pressure, temperature, aging, corrosion, can be applied for differet kind of fluid.
Application
This Wedge wire screen is especially applicable for wax oil, asphalt and other high viscosity oil liquid
Technical Data
1: Application Standard: SY5182-87
2: The dimension can be product according to requirement of customers.
Specification
Technical parameters :
| Gap (mm) | 0.10, 0.15, 0.2, 0.25, 0.30 3 |
| Open area | up to 60% |
| Material | low carbon steel, mild steel galvanized, plastic spraying, stainless steel (304316, etc.) |
| Length | 6 meters |
| Diameter | 25 mm - 800 mm |
Outer diameter mm |
Support Rod Qty. |
Wire width mm |
25.4 |
8 |
1mm1.5mm |
33 |
8 |
1mm1.5mm |
38 |
8 |
1mm1.5mm |
50 |
12 |
1mm1.5mm |
57 |
12 |
1mm1.5mm |
76 |
18 |
1mm1.5mm |
89 |
20 |
1mm1.5mm |
105 |
24 |
1mm1.5mm |
117 |
28 |
1mm1.5mm |
130 |
30 |
1mm1.5mm |
143 |
34 |
1mm1.5mm |
Test Certification
♦ ISO 2941 Collapse & Burst Resistant
♦ ISO 2942 Material Compatibility with Fluids
♦ ISO 2943 Material Compatibility with Fluids
♦ ISO 3724 Flow Fatigue Characteristics
♦ ISO 3968 Pressure Drop vs. Flow Rate
♦ ISO 16889 Multi-pass Performance Testing

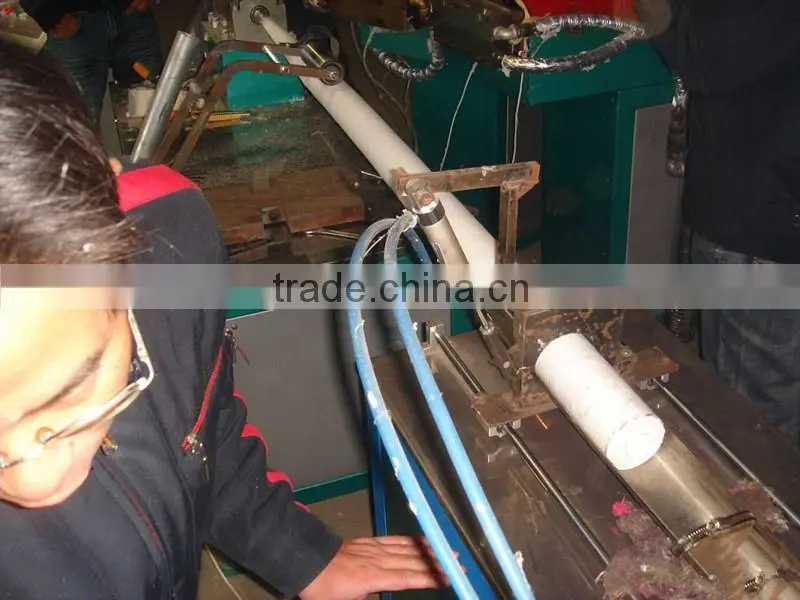

Factory equipment show
Package and Transportantion
