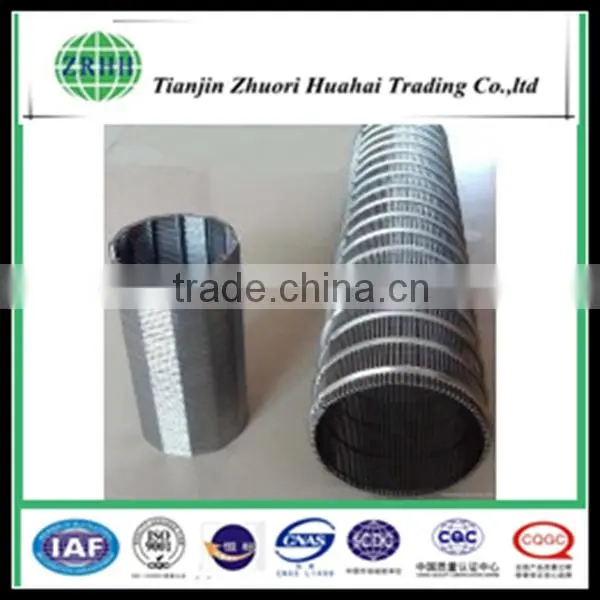

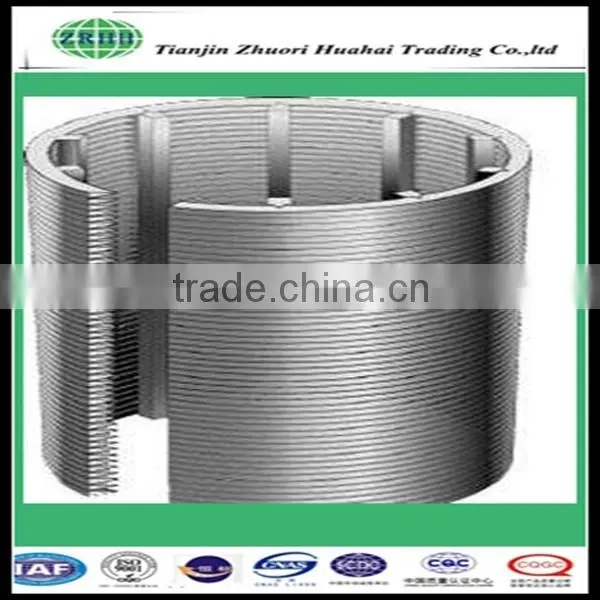

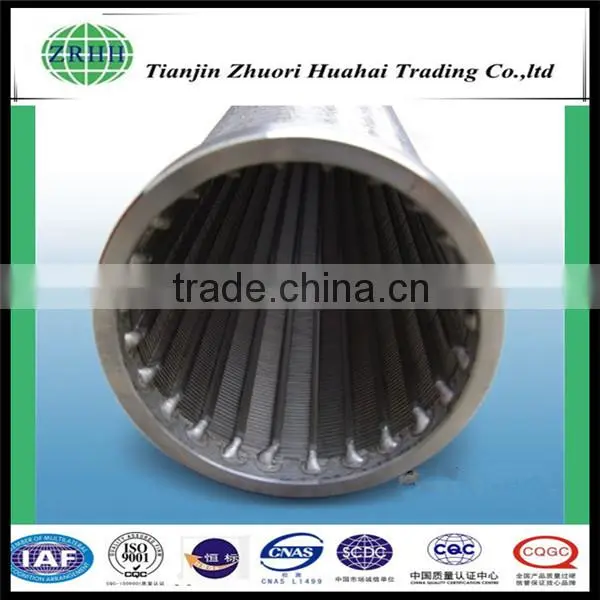

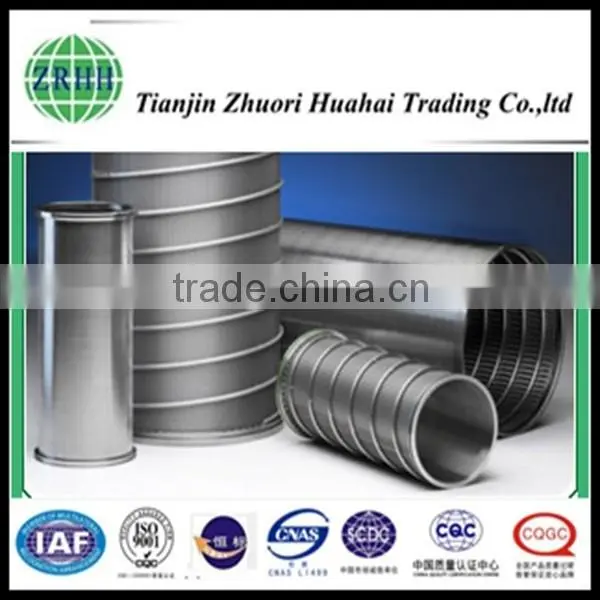

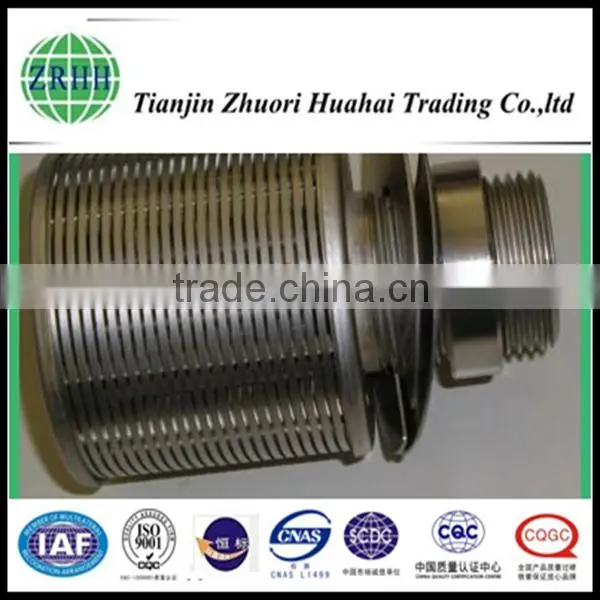

Cleaning Solution Type of Pre-filtration Wedge Screen Water Filter Strainer

Name: Cleaning Solution Type of Pre-filtration Wedge Screen Water Filter Strainer
Brand: stainless steel water filter
SKU: 100315657
Availability: InStock

Cleaning Solution Type of Pre-filtration Wedge Screen Water Filter Strainer thumbnail-1

Cleaning Solution Type of Pre-filtration Wedge Screen Water Filter Strainer thumbnail-2

Cleaning Solution Type of Pre-filtration Wedge Screen Water Filter Strainer thumbnail-3

Cleaning Solution Type of Pre-filtration Wedge Screen Water Filter Strainer photo-1

Cleaning Solution Type of Pre-filtration Wedge Screen Water Filter Strainer photo-2

Cleaning Solution Type of Pre-filtration Wedge Screen Water Filter Strainer photo-3

US$ 4 - 160 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Brand Name:

stainless steel water filter

Place of Origin:

Tianjin, China

Contact Supplier Request Quote Chat Now

Tianjin Zhuori Huahai Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin Port china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name stainless steel water filter

Place of Origin Tianjin, China

Wedge filter

HOT SALE PRODUCTINFORMATION ,don't miss !!

Scree Tube Wedge Filter is widely used in the industries of oil, gas and water well sand control

product description : :

Scree Tube Wedge Filter : also known as filter tube, stainless steel sieve tube adopts full circle welding production technology, application of special trapezoidal wire winding in the rows of circle around a group of support on welded wire .

Feature:

1. Resistance to high pressure, high temperature and chemical corrosion resistance characteristics:

2. Good air permeability, large pollutant carrying capacity, long life,

3. Can be used repeatedly clean renewable,

4. 100% stainless steel material

Technical parameters :

Gap (mm)	0.10, 0.15, 0.2, 0.25, 0.30 3
Open area	up to 60%
Material	low carbon steel, mild steel galvanized, plastic spraying, stainless steel (304316, etc.)
Length	6 meters
Diameter	25 mm - 800 mm

Filtering Level	Filtration Precision um	Maximum Hole Diameter um	Permeability Coefficient 10-12m²	Permeability m3/h.m².kpa	Thickness mm	Compression Strength Mpa/cm²	Bubbling Pressure Kpa
S9	0.2	2.5		1	0.6-10	3.0
S8	0.5	4		3	0.6-10	3.0
S7	1.5	6		5	0.6-10	3.0
S6	2.5	10	0.09	10	0.6-10	3.0	9.16
S5	5	15	0.23	40	0.6-10	3.0	6.1
S5	8	20	0.91	80	0.6-10	3.0	4.6
S4	10	30	1.81	160	0.6-10	3.0	2.6
S3	28	60	3.82	350	0.6-10	3.0	1.8
S3	35	80	7.29	500	0.6-10	3.0	1.4
S2	40	100	9.43	700	0.6-10	3.0	1.1
S1	65	160	15.1	1000	0.6-10	3.0	0.66

Packaging & Shipping

Packing & factory equipment
Packing : carton inside wooden case outside or according to your request

Transportation

. Why choose us?

1),Professional hydraulic filter manufacturer ,own factory ,has a professional team .

2),Small piece of sample can be free.

3),Competitive prices and timely deliver.

4),Quality guaranteed and thoughtful after-sales service .

5) , Accept any quality tests .

Trade & Market :

Over several years development , our products have reached the domestic and international advanced level in the same industry . our products are exported to Britain ,Australia,India ,Canada and other countries and regions ,the excellent quality has gotten high prise by the domestic and foreign customers ,if any new inquiry ,welcome here .

Widely used in :

Filter elements are widely applied to various industries

Our factory can replace products :

Type 1: folding filter

Type 2: sintering filter

Type 3:  melt filter
Type 4:  wedge water filter
Type 5: pp pleated filter
Type 6:  pall  Hydraulic filter
Type 7: Hydac Hydraulic filter

Type 8: Leemin Hydraulic filter

Type 9: MP-filter Hydraulic filter

Type 10: Wire mesh deep processing

Type 11: Precision filter/

Type 12: Steam turbine hydraulic filter

Type13: Marine diesel engine hydraulic filter

Type 14: DAB desiccant air breather

Type 15: filter disc /filter cartridge

Type 16: Wedge Wire Screen Pipe filter

How to contact us?

Skype: houxiaoyuan@outlook

Email: work2010@zrhhfilter

QQ: 3229763085

Tel: +86-022-25612726

Fax: +86-022-25612726

Address: Room no.A711 Zheshang Buliding,Yingbin Road,Tanggu Area,Tianjin,China

Please Note : Pictures and prices are for reference only ,detailed information will according to you . if you have any other need , welcome to inquire . I'm always at your service ! ! ! ! ! !
