- Product Description:

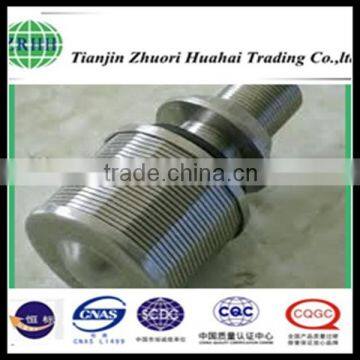

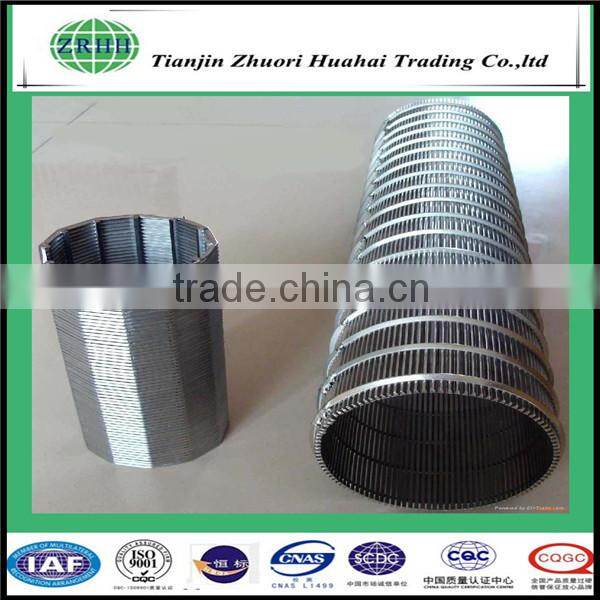

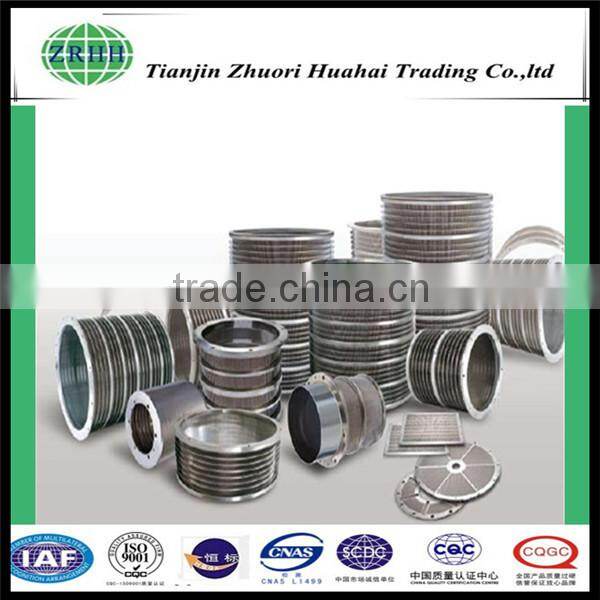

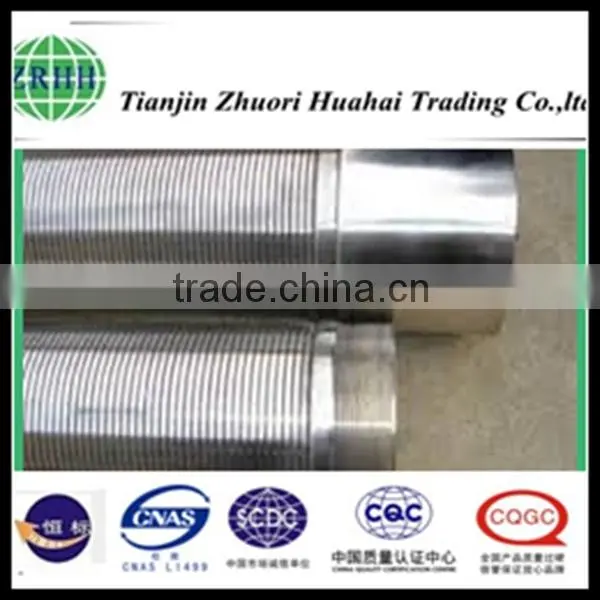

Wedge wire screen filter is made up of "V" shape the wedge of stainless steel wire
and stainless steel support bar. Surface of the smooth surface of filter for filtering,
gap as a bar, belongs to the surface form of filtering, is widely used in various industries
of fluid filtration
- Material:
1).Carbon steel, low carbon steel, high manganese steel wire, stainless steel wire,
stainless steel 304 l, 304 l, 304, 304,
concrete can be customized according to customer's requirements.
2).Specification: 25-100 - mm in diameter
3).Filtration precision scope: 0.02 - 60.0 mm
- Features:
(1), wear-resisting, corrosion resistance;
(2), mesh wire cross section is trapezoidal, cracks on the narrow width
(or according to customer's requirement);
(3), filter with high intensity, strong carrying capacity,
(4), filter sieve seam uniform, long service life,
(5), less filtered residue, improve production efficiency;
(6), cleaning time is short, the effect is good;
- Specification :
Outer diameter mm | Support Rod Qty. | Wire width mm |
25.4 | 8 | 1mm1.5mm |
33 | 8 | 1mm1.5mm |
38 | 8 | 1mm1.5mm |
50 | 12 | 1mm1.5mm |
57 | 12 | 1mm1.5mm |
76 | 18 | 1mm1.5mm |
89 | 20 | 1mm1.5mm |
105 | 24 | 1mm1.5mm |
117 | 28 | 1mm1.5mm |
130 | 30 | 1mm1.5mm |
143 | 34 | 1mm1.5mm |
- product application :
| Widely used in various industries | Fine chemicals, beer, oil, lubricating oil, fuel, plastic, electroplating, ceramics, pharmaceutical, sugar, paper, oil, gas, water, sand, environmental protection, petroleum, metallurgy, powder, medicine, purification, drilling liquid purification, screening, mining, coal, petroleum, fertilizer, grain, salt, and other industrial filtration, adsorption and precious metal catalysts such as solid recycling; |
| Especially in the position in industrial water treatment, it is various kinds of water resources and collecting resin filter screen one of the most widely used. |
- Packing & factory equipment
- Packing : carton inside wooden case outside or according to your request
- Transportation
- . Why choose us?
- Trade & Market :
- be widely used in :
Hydraulic filter elements are widely applied to various industries
- Our factory can replace products :
Type 1: folding filter
Type 2: sintering filter
Type 3: melt filter
Type 4: wedge water filter
Type 5: pp pleated filter
Type 6: pall Hydraulic filter
Type 7: Hydac Hydraulic filter
Type 8: Leemin Hydraulic filter
Type 9: MP-filter Hydraulic filter
Type 10: Wire mesh deep processing
Type 11: Precision filter/
Type 12: Steam turbine hydraulic filter
Type13: Marine diesel engine hydraulic filter
Type 14: DAB desiccant air breather
Type 15: filter disc /filter cartridge
Type 16: Wedge Wire Screen Pipe filter
