Ceramic foam filter

Specifications

ceramic foam filter
1,manufacture:over 40 years experience
2,high quality with low price
3,on-time delivery
4,ISO 9001

Ceramic Foam Filter

With three-dimensional connected porous channel

Technical Data:

Pore Density(PPi): 8~40

Porosity: 80~90%;

Thermal shock Resistance: 6 times /1100°C



1.(Silicon Carbide Foam Ceramic Filter) The status of requisite moulding temperature of ferroally solution and no pollution melting metal solution, decide that the basic material of Foam Ceramic Filte is SIC. Apply to purge and filter solution of  nodular castiron   malleable castiron  castiron and other iron casting.

2.(Zirconia Foam Ceramic Filter) The status of   requisite   moulding temperature of steel solution and no pollution melting  metal solution, decide that the basic material of Foam Ceramic Filte is ZrO2. Apply to purge and filter solution  of steel  high temperature metal  such as steel alloy  stainless steel etc.

 3.(Magnesia Foam Ceramic Filter) Due to magnesium alloy is vivider than other nonferrous metal, magnesium alloy solution can filter easily react with the main material of foam ceramic filter, such as SiO, Al2O3 and liquate rapidly ceramic filter. So that magnesia or other oxide ceramics adopted to filter magnesium alloy.

 4.(Alumina Foam Ceramic Filter) CFA isAl2O3, with refractoriness:1400  , high strength and good heat-resistance wallop, apply to purge and filter solution of Aluminium alloy and other nunferrous alloy.



Common size in Round shape:

40x11mm, 40x15mm, 50x15mm, 50x20mm, 60x22mm, 70x22mm, 80x22mm , 90x22mm,100x22mm, 305x25mm



Common sizes in Square shape:

40x40x13mm, 40x40x15mm, 50x50x15mm, 50x50x22mm, 75x75x22mm,

50x75x22mm, 100x75x22mm, 100x100x22mm, 55x55x15mm, 150x150x22mm



Physical Properties for SiC Ceramic Foam Filters

Porosity(%)	80~90%
Working Temperature	≤1500°C
Bending Strength(Mpa)	0.8
Compression Strength(Mpa)	0.9
Thermal Shock Resistance	1100°C---room temperature 6 times
Volume Density	0.4-0.5g/cm3

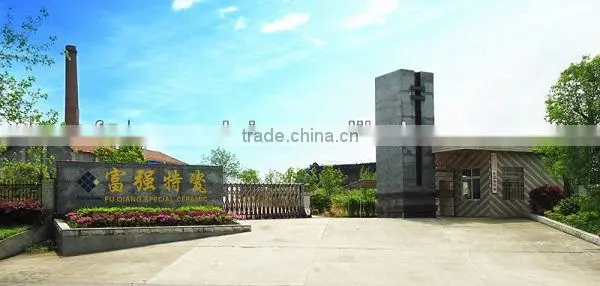

Company Information

Established in 1964.our company own abundant tachnical and plentiful experience,covering floor of more than

40,000square meter's over 500 employees and up to 40 junior and senior technicians.as the secondary network

supplier forSINOPEC and CNPC and appointed supplier toBASF,BAYERetc. top level group.

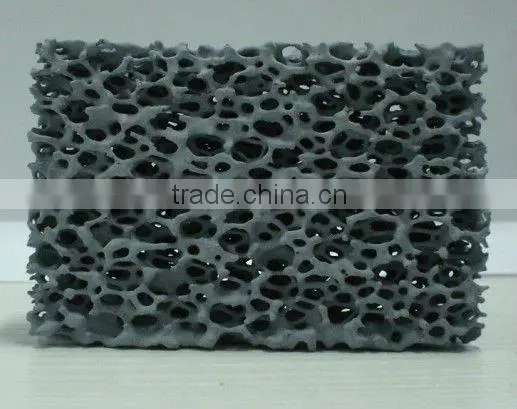

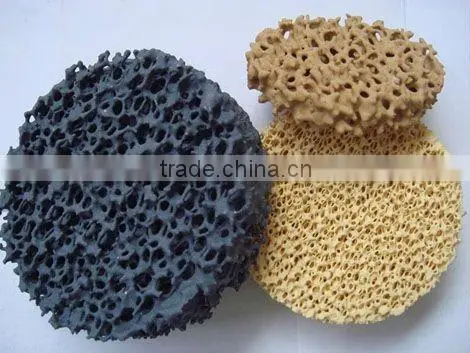

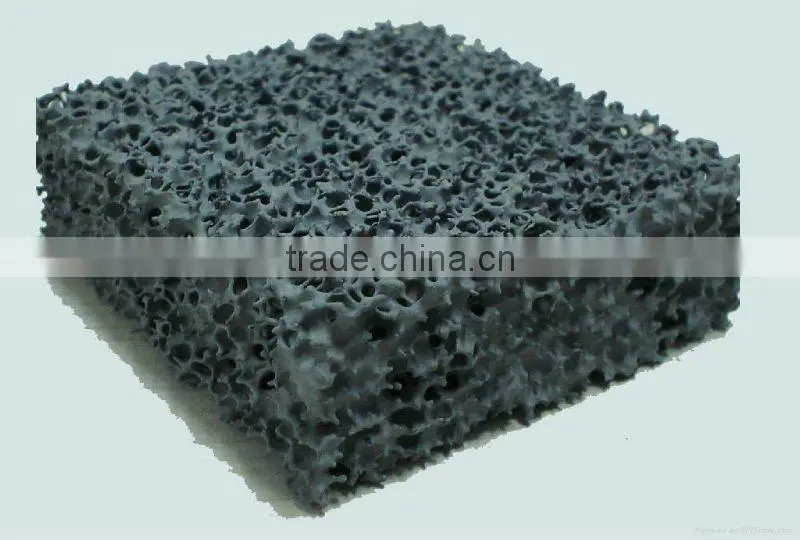

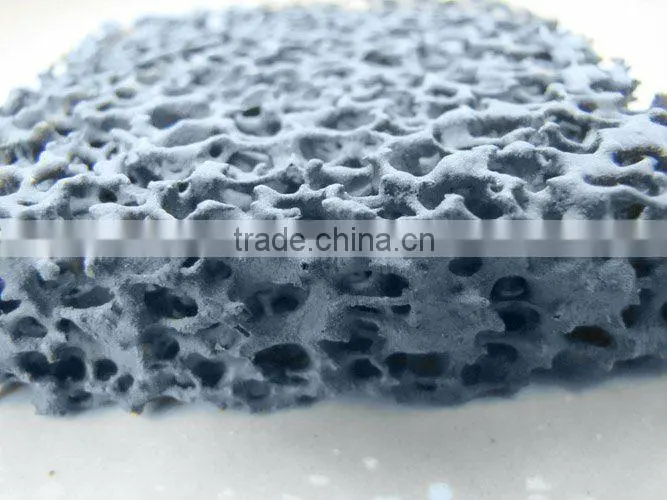

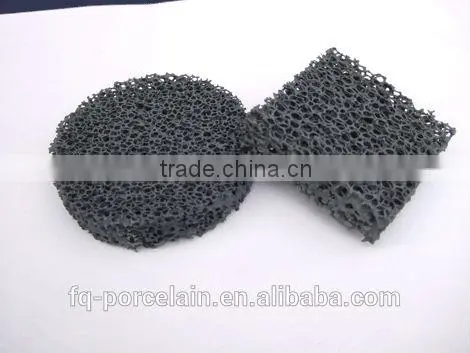

Photoes for Ceramic Foam Filter

Ceramic Foam Filter Services

Fax:0086-0731-23183385

Tel: 0086-0731-23181339

Contact: Cindy Wen

Email: export4 @

skype: fuqiang.ceramic1

Web:

Welcome for your contact and inquiry!
