Specifications
ceramic foam filter1,manufacture:over 40 years experience
2,high quality with low price
3,on-time delivery
4,ISO 9001
Ceramic Foam Filter
With three-dimensional connected porous channel
Technical Data:
Pore Density(PPi): 8~40
Porosity: 80~90%;
Thermal shock Resistance: 6 times /1100°C
1.(Silicon Carbide Foam Ceramic Filter) The status of requisite moulding temperature of ferroally solution and no pollution melting metal solution, decide that the basic material of Foam Ceramic Filte is SIC. Apply to purge and filter solution of nodular castiron malleable castiron castiron and other iron casting.
2.(Zirconia Foam Ceramic Filter) The status of requisite moulding temperature of steel solution and no pollution melting metal solution, decide that the basic material of Foam Ceramic Filte is ZrO2. Apply to purge and filter solution of steel high temperature metal such as steel alloy stainless steel etc.
3.(Magnesia Foam Ceramic Filter) Due to magnesium alloy is vivider than other nonferrous metal, magnesium alloy solution can filter easily react with the main material of foam ceramic filter, such as SiO, Al2O3 and liquate rapidly ceramic filter. So that magnesia or other oxide ceramics adopted to filter magnesium alloy.
4.(Alumina Foam Ceramic Filter) CFA isAl2O3, with refractoriness:1400 , high strength and good heat-resistance wallop, apply to purge and filter solution of Aluminium alloy and other nunferrous alloy.
Common size in Round shape:
40x11mm, 40x15mm, 50x15mm, 50x20mm, 60x22mm, 70x22mm, 80x22mm , 90x22mm,100x22mm, 305x25mm
Common sizes in Square shape:
40x40x13mm, 40x40x15mm, 50x50x15mm, 50x50x22mm, 75x75x22mm,
50x75x22mm, 100x75x22mm, 100x100x22mm, 55x55x15mm, 150x150x22mm
Physical Properties for SiC Ceramic Foam Filters
Porosity(%) |
80~90% |
Working Temperature |
≤1500°C |
Bending Strength(Mpa) |
0.8 |
Compression Strength(Mpa) |
0.9 |
Thermal Shock Resistance |
1100°C---room temperature 6 times |
Volume Density |
0.4-0.5g/cm3 |
Company Information
Established in 1964.our company own abundant tachnical and plentiful experience,covering floor of more than
40,000square meter's over 500 employees and up to 40 junior and senior technicians.as the secondary network
supplier forSINOPEC and CNPC and appointed supplier toBASF,BAYERetc. top level group.

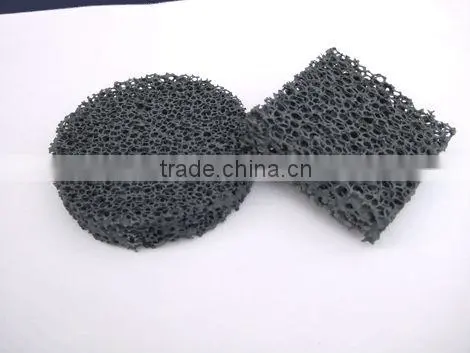

Photoes for Ceramic Foam Filter
Ceramic Foam Filter Services
Fax:0086-0731-23183385
Tel: 0086-0731-23181339
Contact: Cindy Wen
Email: export4 @
skype: fuqiang.ceramic1
Web:
Welcome for your contact and inquiry!
