Help CenterPtfe Detachable Buchner Funnels /Ceramic Funnel for Suction Filtration Experiment
Related Products
-
Inexpensive Hemisphere Evaporating Basins,porcelain Basins,Round Bottom With Spout,GlazedUS$ 0.25 - 3.5MOQ: 100 Pieces -
ISO9001 Certified Fire Assaying Crucibles For Gold Melting With High Temperature ResistanceUS$ 0.5 - 10MOQ: 20 Pieces
-
Special Price Laboratory Fire Assay Crucibles For Gold And Mineral Assaying With Good SmeltingUS$ 0.5 - 10MOQ: 20 Pieces
-
Fire Assaying Furnace Cheap Price Cupel For Gold Melting With High Temperture Resistence and High AluminaUS$ 0.2 - 1MOQ: 100 Pieces
-
Huge Gold And Mineral Assaying Ceramic Fire Clay Crucibles for Smelting and AssayingUS$ 0.5 - 10MOQ: 20 Pieces

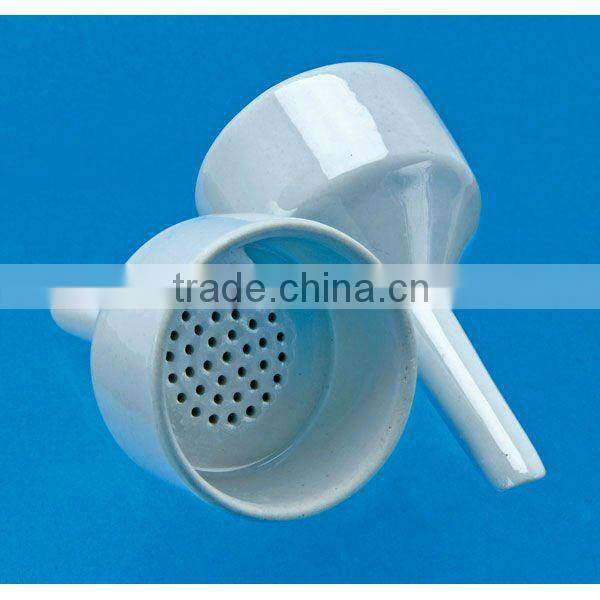

Porcelain/ceramic funnels,Buchner funnels with perforated Filter Disc,Glazed
Buchner Funnel | ||||||
Cat. No. |
Capacity(ml) |
Inside Diam(mm) |
Tube Diam(mm) |
Total Height(mm) |
No. Of Perforations |
|
C-141 |
10 |
20 |
8 |
40 |
19 |
|
C-142 |
20 |
30 |
10 |
60 |
19 |
|
C-143 |
30 |
40 |
12 |
70 |
19 |
|
C-144 |
50 |
50 |
14 |
95 |
19 |
|
C-145 |
120 |
70 |
20 |
120 |
37 |
|
C-146 |
200 |
90 |
24 |
140 |
61 |
|
C-147 |
400 |
110 |
28 |
170 |
91 |
|
C-148 |
600 |
125 |
32 |
190 |
127 |
|
C-149 |
1000 |
150 |
38 |
210 |
127 |
|
C-150 |
1300 |
180 |
46 |
240 |
169 |
|
C-151 |
1500 |
200 |
50 |
260 |
169 |
|
C-152 |
5000 |
250 |
56 |
300 |
217 |
|
C-152-1 |
6500 |
300 |
68 |
350 |
271 |
|
Whenever exceptional support is required for the filter membrane, our Buchner Funnels fit this
requirement. Or, when drying of the sample within the Buchner Funnel is needed after filtration,
these porcelain funnels will withstand elevatedtemperatures. Smooth, glazed, with perforations
evenly spaced, filtration with these Buchners is always efficient.
Porcelain with fixed perforated plate. Glazed inside and out except for rim.It is autoclavable
Chemical composition
Si02: 51%
Al2O3: 36.5%
Fe2O3: 0.15%
Cao: 0.47%
Mgo: 1.68%
K2O: 3.2%
Na2O: 0.79%
Physical Parameters
Acid resistance: more than 99.5%
Alkali resisitance: more than 97%
Temperature resistance: 1150 degrees celsius for glazed
Wear resistance: less than 0.03g/cm2
Moh's hardness: 7 grade
Water absorption rate: less than 0.5%
Bulk density: 2.2-2.7g/cm3
Compressive strength: more than 300Mpa
Breaking strength: more than 40 Mpa
Thermal stability: 1400 degree celsius to room temperature
Company Information
Established in 1964.our company own abundant tachnical and plentiful experience,covering floor of more than 40,000square meter's over 500 employees and up to 40 junior and senior technicians.as the secondary network supplier forSINOPEC and CNPC and appointed supplier toBASF,BAYERetc. top level group.

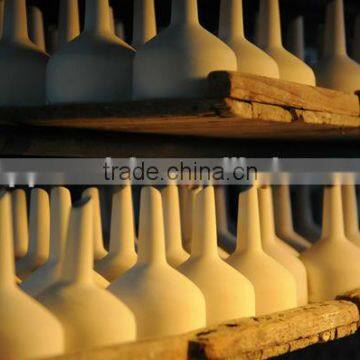

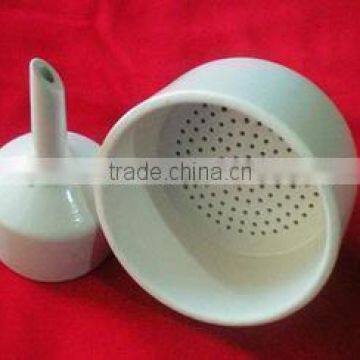

Photoes for Porcelain/ceramic funnels,Buchner funnels
