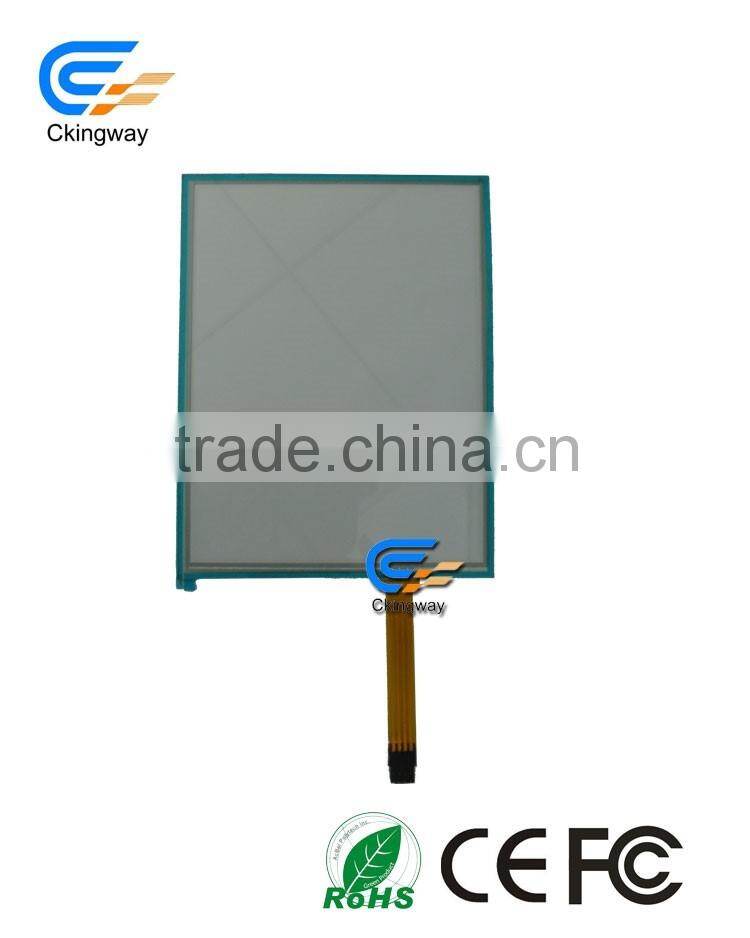

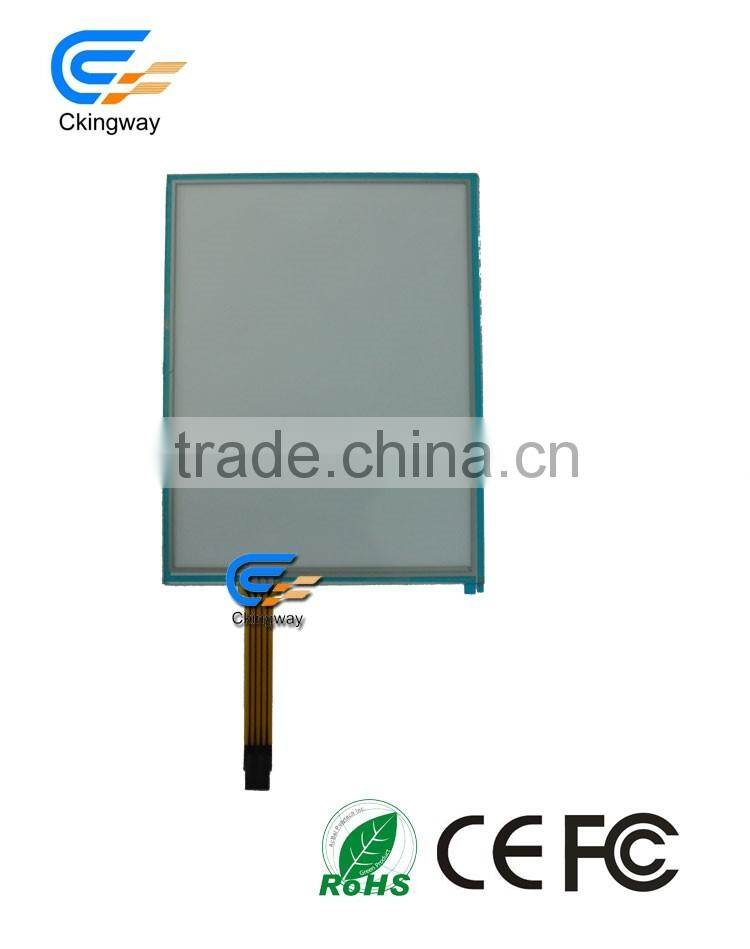

Help Center8.4 Inch 4 Wire Resisitve Display Screen for Security Monitiring System
Related Products
-
Hot Saleing 5.6 Inch LCD Touch Panel Display With 4 Wire Resistive for Security Monitoring SystemUS$ 3.00 - 3.00MOQ: 1000 Pieces -
Shenzhen Supplier 10.1 Inch Wireless Touch ScreenUS$ 14.50 - 14.50MOQ: 1000 Pieces
-
Ckingway Free Sample & Shipping Touch Screen Overlay for SecurityUS$ 14.3 - 14.65MOQ: 1000 Pieces
-
Ckingway Wholesale LCD Touch Screen for POSUS$ 14.50 - 14.50MOQ: 1000 Pieces
-
Replacement 10.1 Inch LCD Screen AssemblyUS$ 14.50 - 14.50MOQ: 1000 Pieces
Product Description
The Feathers of 8.4 Inch 4 wire resisitve Display Screen for Security Monitiring System as below:
1.Low cost solution, Low power consumption
2. Consistently accurate, fast touch response
3. Pressure sensitive, works with any stylus, Finger, gloved hand and stylus activation
4. Not affected by dirt, dust, water, or light
5. Affordable touch screen technology
6. Antiglare surface treatment
4 wire restistive touch screen technology:
Ckingway 4-Wire Resistive products are perfect for industry machine GPS System or portable products where compact size and low power draw is a priority – such as PDAs, GPSs, smart phones and other hand-held applications. Our pressure sensing 4-wire resistive touch screens are cost effective and allow for input versatility with bare or gloved fingers and any pointing device.
Backed by a one-year warranty and 5 million touches in a single location, Touch International’s 4-Wire resistive touch screens allow for ease of integration and use.
| Size | 8.4“ inch |
| Structure | Film + Glass |
| Connector | Pin 4 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen, Glove |
| Type | 4 Wire Restistive Touch screen |
| Ratio | 4:3 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC; 35 mA |
| Transparent | ≤ 78% |
| Screen Resistance | X:100-500Ω Y:200-1000Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 30-150g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ; ≥ 100,000 time in paddling |
| Operating Temperature | — 10℃ ~ +60℃ |
| Storage Temperature | — 20℃ ~ +70℃ |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
8.4 Inch 4 wire resisitve Display Screen for Security Monitiring System for Packing:
Anti-Static Foam+Paper Card+Ragged Bag+Carton
8.4 Inch 4 wire resisitve Display Screen for Security Monitiring System for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T 50% the balance before delivery
4.Payment method can be nogotiated
