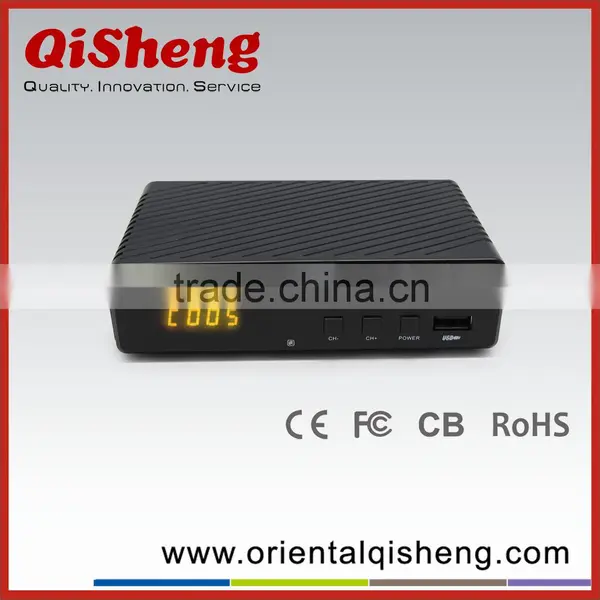

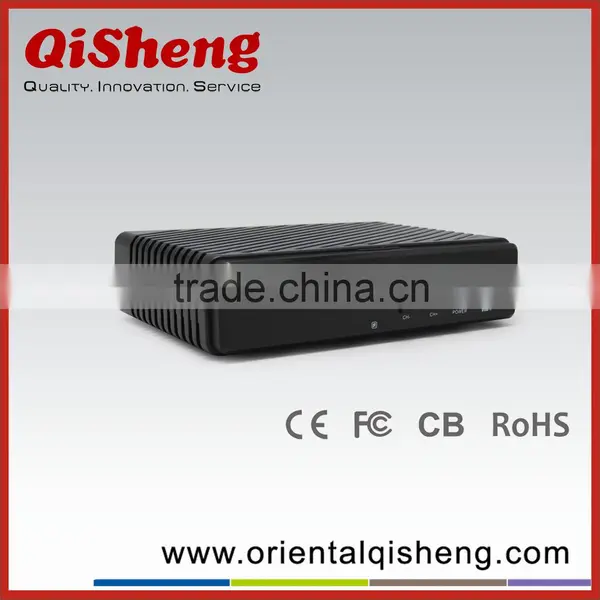

Digital converter box/tv receiver hd isdb-t

Name: Digital converter box/tv receiver hd isdb-t
Brand: OEM
Availability: InStock

FOB Price

USD $5 - $15 / Piece

1000 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	OEM
Model Number	DVB-1013is

Product Description

Supports ISDB-T broadcast, MPEG-2/MPEG-4 AVC/H.264 HD/SD Video, DiVX				Standard: ISO/IEC 13818-3
Compatible with480i/480p/720p/1080i/1080p video formats				Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
Auto and manually scan all available TV and radio channels				Output mode: R/L, Coaxial, HDMI
Aspect ratio 16:9 and 4:3, 1000 channels memory, parental control				Sampling frequency: 32, 44.1, 48KHz
HD-MI, YPbPr, RCA, coaxial output
Teletext/ Bit Map subtitle, compliant with ETS1				Processor
Supported 7-Day EPG function, VBI Teletext				CPU: Mstar MSD7802
Support 6MHz software setting				Frequency: 550 MHz
Auto/Manual Program search, Multi-language supported
USB 2.0 for PVR,Timeshift, Software upgrade, Multimeida Playback(music,photo and HD video)				AV Output
Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK;OFDM Reception Channel:: 13CH-62CH				Video de-emphasis: CCIR REC.405-1, 1080p
Digital reception covers VHF & HUF band				Video bandwidth: 5.5 MHz
				Video output impedance:75 Ω
Tuner				Video output level: 1.0Vp-p
Input frequency: VHF 7-13 Ch(177.143MHz~213.143MHz,UHF 14-69				Audio output: Coaxial, L/R, HDMI
Ch(473.143MHz~803.143MHz)				Audio output frequency:20Hz ~ 20KHz
Input level:-90 ~ -5dBm				Audio output impedance:Low
Bandwidth:6 MHz				Audio output level: A 1.0Vrms ± 2dB into 10K
Input impedance:75 Ω
Channel Decoding				Hardware Interface
Input frequency: VHF 7-13 Ch(177.143MHz~213.143MHz,UHF 14-69				Indicators: Power, signal lock
Ch(473.143MHz~803.143MHz)				IR Receiver: 38KHz
Input level:-90 ~ -5dBm				AV output: YUV, HDMI, Composite Video
Bandwidth:6 MHz				RF Input: EC-type IEC169-2 Female
Input impedance:75 Ω				Loop Through Out: IEC-type IEC169-24 Male
Rate: 1/2, 2/3, 3/5, 3/4, 4/5, 5/6, 8/9, and 9/10				USB: 1*USB2.0
Demultiplexer				Power input Spec.: 90—260V AC 8W max
Standard: ISO/IEC13818-1, MPEG-4HE AAC
Input Max. bit stream rate: 23.420Mbps
Video Decoding				Media file supported
Standard: ISO/IEC 13818-2, MPEG-2 MP@ML, H.264				Picture: JPEG,BMP,PNG
Aspect ratio: 4:3, 16:9				Music: MP3/M4A/AAC/WMA/ASF
Video format:PAL / NTSC/ AUTO				Video: MKV,AVI,DIVX,XVID,VOB
Video resolution:1080p/1080i/720p/576p/576i(PAL),				MPEG,MPG,MP4,TS,TRP ,DAT…
1080p/1080i/720p/480p/480i(NTSC)
Packing				Loading
Unit (LxWxH)	11012038mm	Giftbox (LxWxH)	17017555mm	1x20`GP	14000pcs
Packing	32set/Carton	Carton (LxWxH)	434364420mm	1x40`GP	28000pcs
Ctn G.W.	25 KGS	Ctn G.W.	27 KGS	1x40`HQ	33000pcs
