Specification of container trailer
1. Container trailer is used for trucks and gas station.
2. Our container trailer has large loading capacity around 8000 CBM.
3. Import valves of container trailer and less joints enable safety operation.
4. Container trailer is the connection between mother and daughter filling station.
5. Seamless steel tubes and close-spinning technology are adopted to enhance air tightness.
Technical parameters of container trailer
| Working Pressure (Mpa) | 20 | Wheel base L1+L2+L3(mm) | 7505+1350+1350 | ||
| Working Temperature (°C) | -40°C—+60°C | Leg Load (full-load) (kg) | 22688 | ||
| Trailer Weight (kg) | 35591 | Front Fitting Radius (mm) | 1600 | ||
| Maximum manufacturer laden mass (kg) | 38590 | Clearance Radius mm) | 2200 | ||
| Total Vehicle Weight (kg) | 39450 |
Traction block engagement surface height (without load )(mm) |
1310 | ||
| Nominal Volume (m3) | 21.33 | Airtight Test Pressure(Mpa) | 20 | ||
| Filled Medium volume (Nm3) | 5382 |
Single cylinder size (outsidediameter×wall thickness×length) |
φ559*11580*16.5 | ||
|
Whole Trailer Outline sizes (length×width×height) (mm) |
12805*2480*3348 | Cylinder Qty | 9 | ||
|
Full of axle load distribution (kg) |
Traction Pedestal | 16538 | Outlet pipe mouth |
DN1 Fast joint, Drain outlet: 3/8'' |
|
| Rear Axle | 22912 | Safety Accessory |
Rupture disk & Fusible alloy |
||

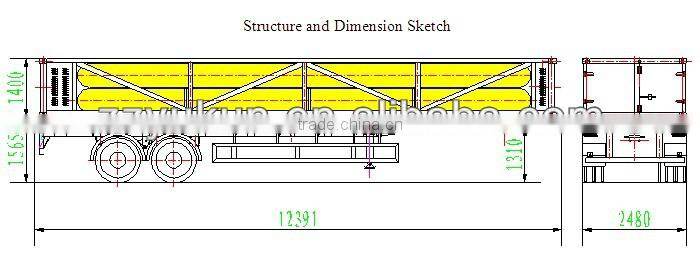

Structure and Dimension sketch of container trailer

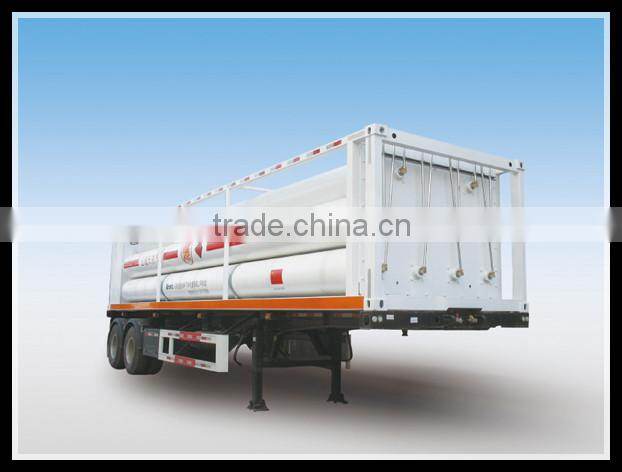

Pictures of container trailer
Why choose us?
Zhengzhou Yukun Machinery Company Ltd. is a professional CNG equipment manufacturer in China. We produce the whole CNG equipment and our products are exported to Asia, Africa, Europe etc. Our container trailer enjoy a high reputation in the International market.
