Specifications
nitrogen high pressure compressor1.Capacity: 2.5m3/min
2.Outlet pressure: 15Mpa
3.Power: 110KW
4.ISO9001

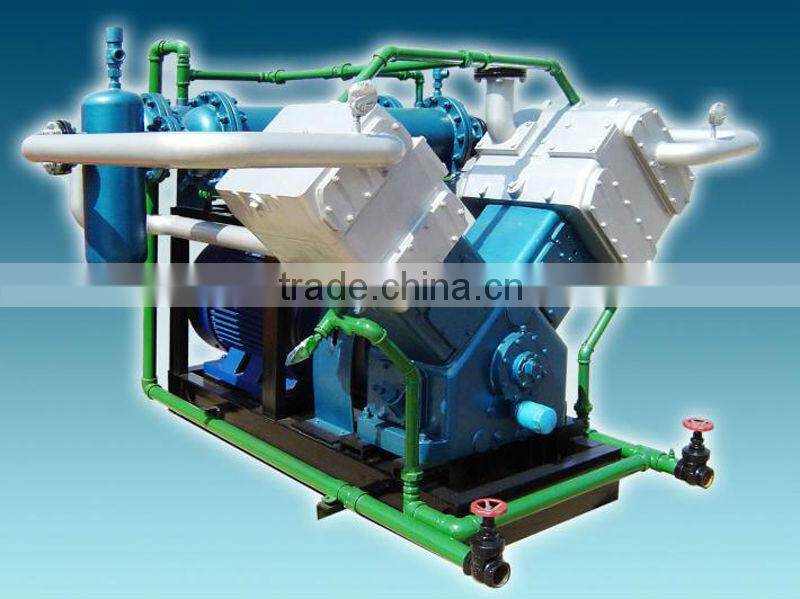

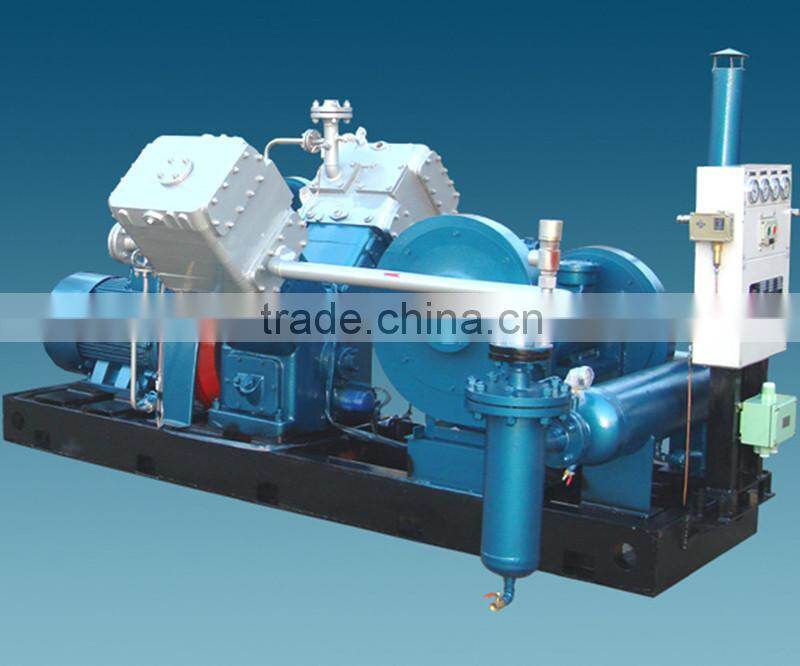

15Mpa nitrogen high pressure compressor
Nitrogen high pressure compressor
- Nitrogen high pressure compressor is a device designed specially to compress nitrogen gas for storage;

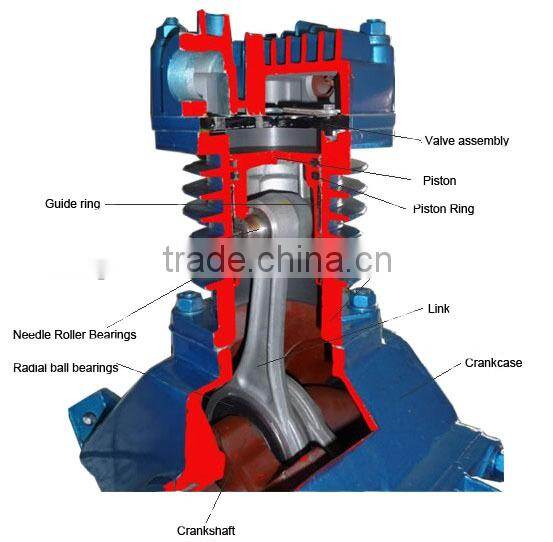

- Nitrogen high pressure compressor is generally reciprocating types with the most common being guided piston/metal diaphragm;
- Nitrogen high pressure compressor is used to compressor the gas to enormous pressures,often in excess of 40,000PSI, so that it maybe stored in usable amounts;
- The structure of nitrogen high pressure compressor includes1 stage,2 stage,3 stage,4 stage to meet the client's different demands.
Parameters of nitrogen high pressure compressor
Main Technical Parameters of nitrogen compressor for sale | |||||||
Model | Medium | Capacity (m³/min) | Inlet Pressure (Mpa) | Outlet Pressure (Mpa) | Power (kw) | Overall Dimension (mm) | Weight (kg) |
VW-10/8 | Nitrogen | 10 | Atmospheric | 0.8 | 75 | 2200x1600x1550 | 2200 |
VW-1.5/8-50 | Nitrogen | 1.5 | 0.8 | 5 | 75 | 2300x1600x1750 | 3200 |
VW-2.5/4-150 | Nitrogen | 2.5 | 0.4 | 15 | 110 | 2200x1600x1800 | 3200 |
VW-1.7/6-21 | Nitrogen | 1.7 | 0.6 | 2.1 | 37 | 1780x1450x1550 | 2250 |
VW-2/5-30 | Nitrogen | 2 | 0.5 | 3 | 55 | 2000x1500x1850 | 2150 |
VW-1.3/13-25 | Nitrogen | 1.3 | 1.3 | 2.5 | 30 | 2000x1550x1550 | 2200 |
VW-1.67/8-140 | Nitrogen | 1.67 | 0.8 | 14 | 110 | 2400x1550x1750 | 3100 |
2VW-16.7/0.5-20 | Nitrogen | 16.7 | 0.05 | 2 | 185 | 4200x1600x1600 | 6500 |
2VW-28.5/0.4-20 | Nitrogen | 28.5 | 0.04 | 2 | 280 | 4500x1650x1750 | 7500 |
2VW-6.5/5-40 | Nitrogen | 6.5 | 0.5 | 4 | 220 | 4200x1650x1550 | 6000 |
2VW-2/6-80 | Nitrogen | 5 | 0.6 | 8 | 280 | 4200x1650x1550 | 6000 |
Overview of nitrogen high pressure compressor
Packing of nitrogen high pressure compressor
Our company certificate
Why choose us?
Our company is committed to gas equipment development and production within 20 years, specially in nitrogen high pressure compressor, have a world class design team, advanced manufacturing center and focus manufacturing quality.
