Help CenterGD-120/1-200 Model Nitrogen Gas Compressor
Related Products
-
Diaphragm Gas Field CompressorUS$ 10,000 - 100,000MOQ: 1 Set -
120Nm3/h Nitrogen Diaphragm CompressorUS$ 10,000 - 100,000MOQ: 1 Set
-
1.2m3 per Min Gas Compressor Nitrogen CompressorUS$ 10,000 - 100,000MOQ: 1 Set
-
ZW-0.2/3-25 Model Oil-free Nitrogen CompressorUS$ 10,000 - 100,000MOQ: 1 Set
-
Oil Free High Pressure Nitrogen CompressorUS$ 10,000 - 100,000MOQ: 1 Set
Specifications
nitrogen gas compressor1.Medium: nitrogen
1.Capacity: 120Nm3/h
2.Discharge Pressure: 20Mpa
3.Power: 55KW

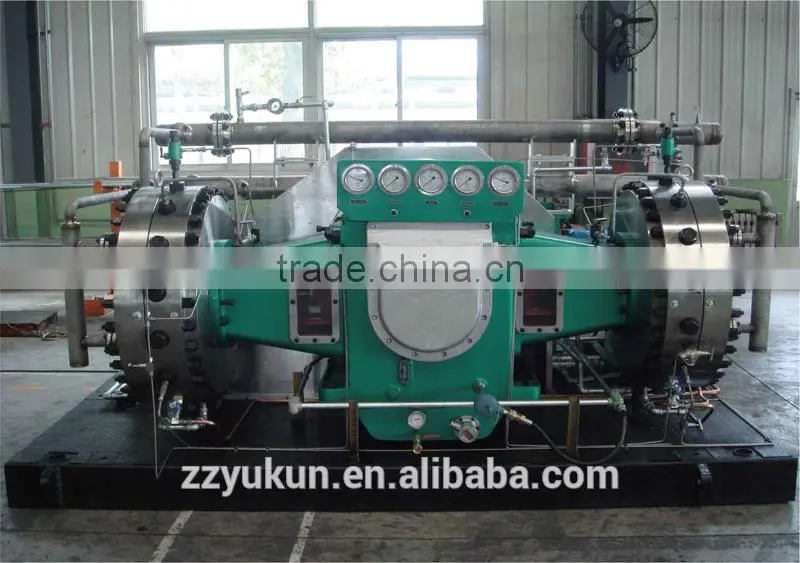

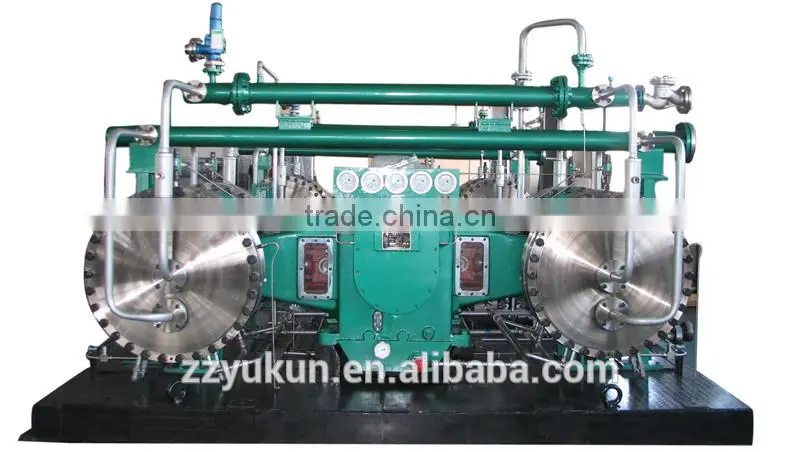

GD-120/1-200 model nitrogen gas compressor
Nitrogen gas compressor
Nitrogen gas compressor is widely used in food industry, oil industry, chemical industry. Electronic industry, nuclear power plants, aerospace, military equipment, medicine, scientific research and other fields
Nitrogen gas compressor are suitable for Hydrogen, oxygen, acetylene, argon, nitrogen, carbon dioxide, six sulfur fluoride biogas.
A nitrogen gas compressor is a kind of reciprocating compressor with backup and piston rings and rod seal.
Technical parameters of nitrogen gas compressor
| Parameters Table of GD Series nitrogen gas diaphragm compressor | ||||||||
| No. | Model | Cooling Water Dosage (t/h) |
Capacity (Nm³/h) |
Suction Pressure (Mpa) |
Discharge Pressure (Mpa) |
Compressor Size (mm) |
Weight (t) |
Power (kw) |
| 1 | GD-150/0.01-7 | 5 | 150 | 0.001 | 0.7 | 4200X3400X2000 | 13.8 | 45 |
| 2 | GD-320/0.5-13 | 5.5 | 320 | 0.05 | 1.3 | 4500X3800X2000 | 13.8 | 75 |
| 3 | GD-1450/11-25 | 7 | 1450 | 1.1 | 2.5 | 4200X3400X2000 | 13.8 | 75 |
| 4 | GD-1000/14-50 | 7 | 1000 | 1.4 | 5 | 4200X3400X2000 | 13.8 | 75 |
| 5 | GD-120/1-200 | 5.5 | 120 | 0.1 | 20 | 3500X2300X1500 | 8.5 | 55 |
| 6 | GD-300/5-150 | 6 | 300 | 0.5 | 15 | 3500X2300X1600 | 8.5 | 75 |
| 7 | GD-600/12-40 | 6 | 600 | 1.2 | 4 | 3500X2300X1550 | 8.5 | 55 |
| 8 | GD-300/6-50 | 5 | 300 | 0.6 | 5 | 3500X2300X1500 | 8.5 | 55 |
| 9 | GD-360/15-200 | 6 | 360 | 1.5 | 20 | 3500X2300X1350 | 8.5 | 75 |
Characteristics of nitrogen gas compressor
Nitrogen gas compressor is a displacement compressor of special structure, and has the following characteristics:
1. High purity of gas
2. No gas leakage
3. High pressure of gas discharge.
4. High pressure ratio
Characteristics of nitrogen gas compressor
Nitrogen gas compressor is a displacement compressor of special structure, and has the following characteristics:
1. High purity of gas
2. No gas leakage
3. High pressure of gas discharge.
4. High pressure ratio
Overview of nitrogen gas compressor
Packing and shipping of nitrogen gas compressor
Customer visit
