Specifications
high pressure nitrogen compressor1.Medium: nitrogen
1.Capacity: 360Nm3/h
2.Discharge Pressure: 20Mpa
3.Power: 75KW
3000psi high pressure nitrogen compressor
High pressure nitrogen compressor
High pressure nitrogen compressor is widely used in food industry, oil industry, chemical industry. Electronic industry, nuclear power plants, aerospace, military equipment, medicine, scientific research and other fields
Diaphragm compressor are suitable for Hydrogen, oxygen, acetylene, argon, nitrogen, carbon dioxide, six sulfur fluoride biogas.
A gas field compressor is a kind of reciprocating compressor with backup and piston rings and rod seal.
Technical parameters of high pressure nitrogen compressor
| Parameters Table of GD Series nitrogen gas diaphragm compressor | ||||||||
| No. | Model | Cooling Water Dosage (t/h) |
Capacity (Nm³/h) |
Suction Pressure (Mpa) |
Discharge Pressure (Mpa) |
Compressor Size (mm) |
Weight (t) |
Power (kw) |
| 1 | GD-150/0.01-7 | 5 | 150 | 0.001 | 0.7 | 4200X3400X2000 | 13.8 | 45 |
| 2 | GD-320/0.5-13 | 5.5 | 320 | 0.05 | 1.3 | 4500X3800X2000 | 13.8 | 75 |
| 3 | GD-1450/11-25 | 7 | 1450 | 1.1 | 2.5 | 4200X3400X2000 | 13.8 | 75 |
| 4 | GD-1000/14-50 | 7 | 1000 | 1.4 | 5 | 4200X3400X2000 | 13.8 | 75 |
| 5 | GD-120/1-200 | 5.5 | 120 | 0.1 | 20 | 3500X2300X1500 | 8.5 | 55 |
| 6 | GD-300/5-150 | 6 | 300 | 0.5 | 15 | 3500X2300X1600 | 8.5 | 75 |
| 7 | GD-600/12-40 | 6 | 600 | 1.2 | 4 | 3500X2300X1550 | 8.5 | 55 |
| 8 | GD-300/6-50 | 5 | 300 | 0.6 | 5 | 3500X2300X1500 | 8.5 | 55 |
| 9 | GD-360/15-200 | 6 | 360 | 1.5 | 20 | 3500X2300X1350 | 8.5 | 75 |
Characteristics of high pressure nitrogen compressor
Nitrogen compressor is a displacement compressor of special structure, and has the following characteristics:
1. High purity of gas
2. No gas leakage
3. High pressure of gas discharge.
4. High pressure ratio

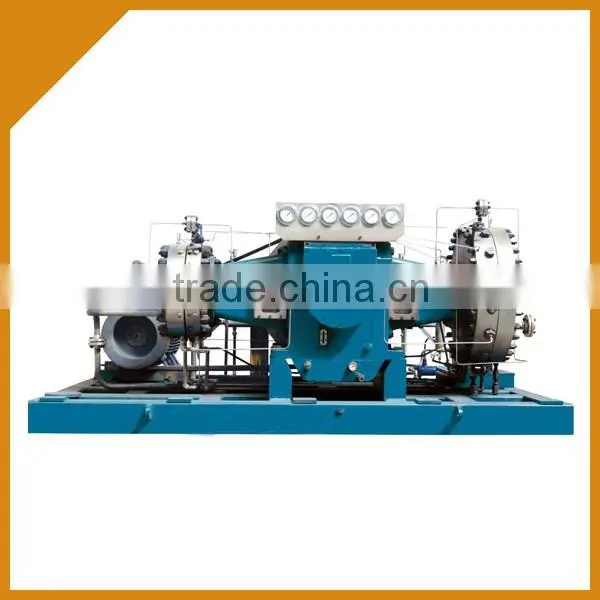

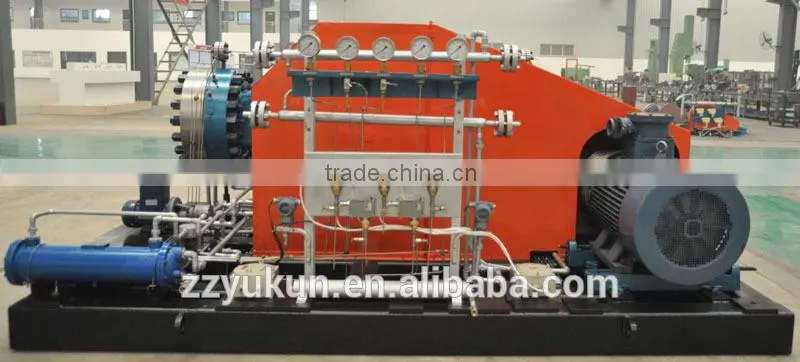

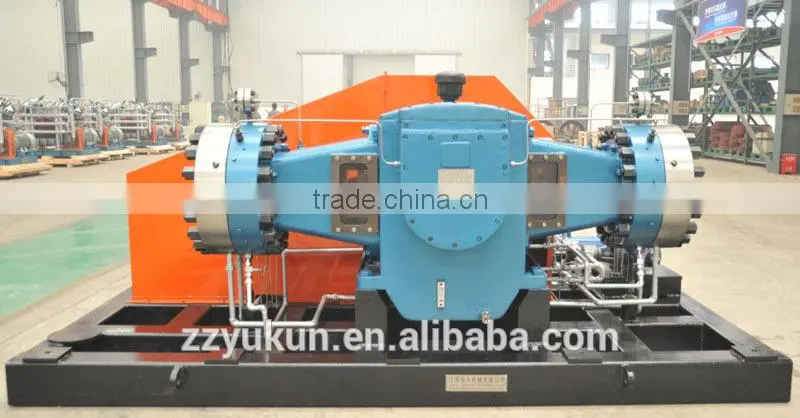

Overview of high pressure nitrogen compressor
Packing of high pressure nitrogen compressor
Customer visit
