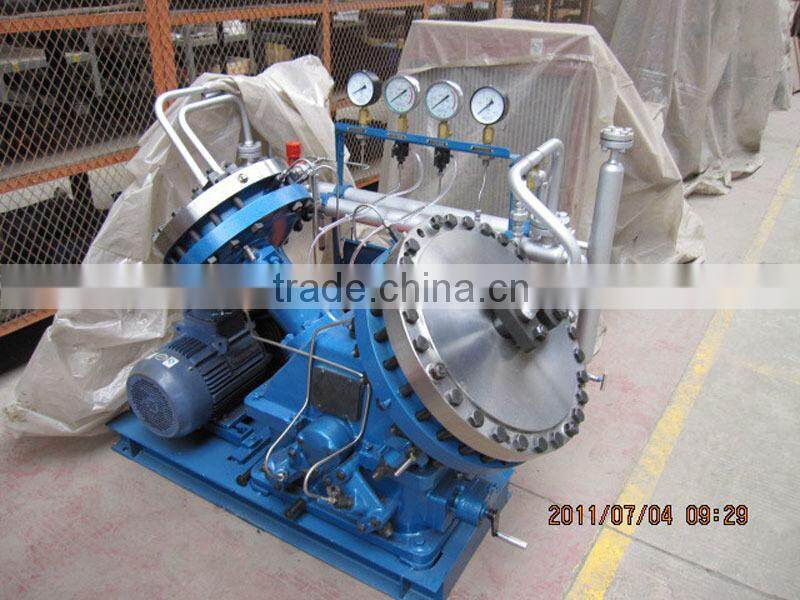

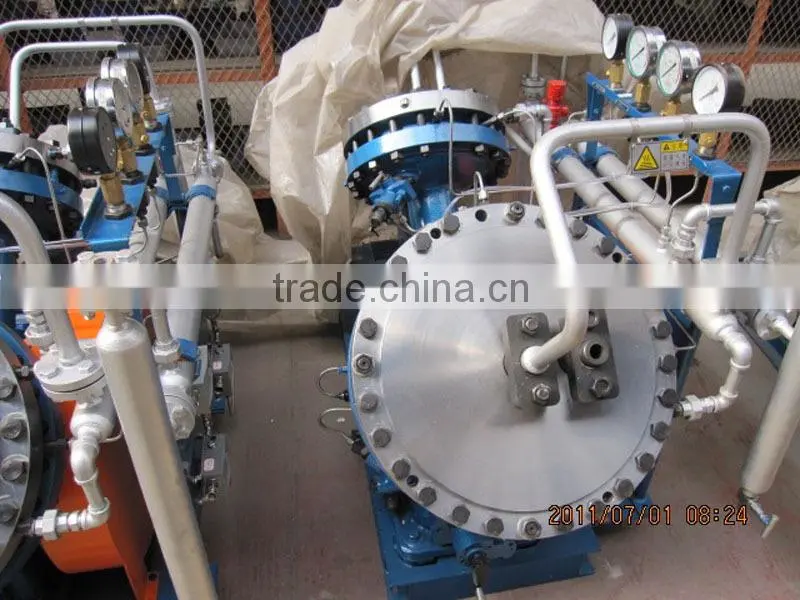

Oil-free diaphragm compressor
Oil-free diaphragm compressor
Oil-free diaphragm compressor is widely used in food industry, oil industry, chemical industry. Electronic industry, nuclear power plants, aerospace, military equipment, medicine, scientific research and other fields
Oil-free diaphragm compressor is suitable for Hydrogen, oxygen, acetylene, argon, nitrogen, carbon dioxide, six sulfur fluoride biogas.
A diaphragm compressor is a kind of reciprocating compressor with backup and piston rings and rod seal.
Technical parameters oil-free diaphragm compressor
| Parameters Table of GV Series oxygen diaphragm compressor | ||||||||
| No. | Model | Cooling Water Dosage (t/h) | Capacity (Nm³/h) | Suction Pressure (Mpa) | Discharge Pressure (Mpa) | Compressor Size (mm) | Weight (t) | Moter Power (KW) |
| The piston stroke of the following models is 70mm | ||||||||
| 1 | GV-8/8-160 | 0.5 | 8 | 0.8 | 16 | 1310x686x980 | 0.65 | 3 |
| 2 | GV-10/6-160 | 0.8 | 10 | 0.6-0.7 | 16 | 1200x600x1100 | 0.5 | 4 |
| 3 | GV-10/8-160 | 0.8 | 10 | 0.8 | 16 | 1330x740x1080 | 0.65 | 4 |
| 4 | GV-10/4-160 | 0.8 | 10 | 0.4 | 16 | 1330x740x1000 | 0.65 | 4 |
| 5 | GV-7/8-350 | 0.8 | 7 | 0.8 | 16 | 1300x610x920 | 0.8 | 4 |
| 6 | GV-15/5-160 | 0.8 | 15 | 0.5 | 16 | 1330x740x920 | 0.7 | 5.5 |
| 7 | GV-5/7-350 | 1 | 5 | 0.7 | 35 | 1400x845x1100 | 0.8 | 5.5 |
| The piston stroke of the following models is 95mm | ||||||||
| 8 | GV-5/200 | 0.4 | 5 | Ordinary Pressure | 20 | 1500x780x1080 | 0.75 | 3 |
| 9 | GV-5/200-1 | 0.3 | 5 | 20 | 0.1 | 1520x800x1050 | 0.75 | 3 |
| 10 | GV-11/1-25 | 0.6 | 11 | 0.1 | 2.5 | 1500x780x1080 | 0.85 | 4 |
| 11 | GV-12/2-150 | 1 | 12 | 0.2 | 15 | 1600x776x1080 | 0.75 | 5.5 |
| 12 | GV-20/10-160 | 0.8 | 20 | 1 | 16 | 1500x800x1200 | 0.8 | 5.5 |
| 13 | GV-30/5-30 | 0.8 | 30 | 0.5 | 1 | 1588x768x1185 | 0.98 | 5.5 |
| 14 | GV-10/1-40 | 0.4 | 10 | 0.1 | 4 | 1475x580x1000 | 1 | 5.5 |
| 15 | GV-20/4 | 0.6 | 20 | Ordinary Pressure | 0.4 | 1500x900x1100 | 1 | 5.5 |
| 16 | GV-70/5-10 | 1.5 | 70 | 0.5 | 1 | 1595x795x1220 | 1 | 5.5 |
| 17 | GV-8/5-210 | 0.4 | 8 | 0.5 | 21 | 1600x880x1160 | 1.02 | 5.5 |
| 18 | GV-20/1-25 | 0.4 | 20 | 0.1 | 2.5 | 1450x840x1120 | 1.05 | 5.5 |
| 19 | GV-20/10-350 | 1.2 | 20 | 1 | 35 | 1500x750x1140 | 0.8 | 7.5 |
| 20 | GV-15/5-350 | 1.05 | 15 | 0.5 | 35 | 1600x835x1200 | 1 | 7.5 |
| 21 | GV-20/8-250 | 1.2 | 20 | 0.8 | 25 | 1520x825x1126 | 1 | 7.5 |
| 22 | GV-12/5-320 | 1.2 | 12 | 0.5 | 32 | 1600x835x1130 | 1 | 7.5 |
| 23 | GV-15/8-350 | 1.1 | 15 | 0.8 | 35 | 1520x820x1160 | 1.02 | 7.5 |
| 24 | GV-18/10-350 | 1.2 | 18 | 1 | 35 | 1255x800x1480 | 1.2 | 7.5 |
| 25 | GV-35/4-25 | 0.3 | 35 | 0.4 | 2.5 | 1500x810x1100 | 1 | 7.5 |
| 26 | GV-50/6.5-36 | 2.25 | 50 | 0.65 | 3.6 | 1450x850x1120 | 1.048 | 7.5 |
| 27 | GV-20/5-200 | 1.2 | 20 | 0.5 | 20 | 1500x780x1080 | 0.8 | 7.5 |
Characteristics of oil-free diaphragm compressor
Oil-free diaphragm compressor is a displacement compressor of special structure, and has the following characteristics:
1. High purity of gas
2. No gas leakage
3. High pressure of gas discharge.
4. High pressure ratio

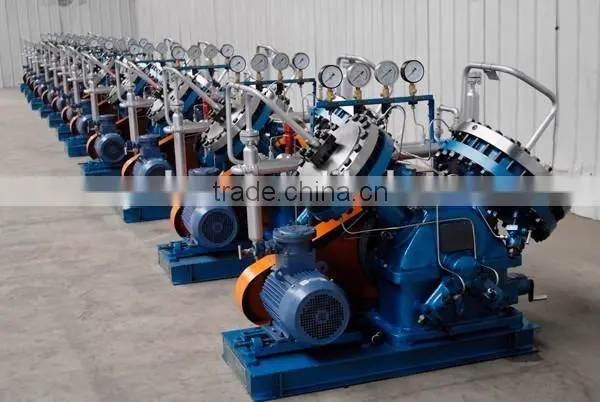

Overview of oil-free diaphragm compressor
Customer visit
