Help CenterBattery Charger for 60v 120ah Electric Car Lithium Battery 60V24A Charger
Related Products
-
48V60V72V96V High Standard Waterproof Electric Motor Boat Battery ChargerNegotiableMOQ: 12 Pieces -
72V Battery Charger Lifepo4 20A for Electric Digger Trucks for WholesaleNegotiableMOQ: 12 Pieces
-
Automatic Car Battery Charger 12V 24V 50A/Lead Acid Battery Car ChargerNegotiableMOQ: 12 Pieces
-
Waterproof Battery Charger for Lifeboat/Lifeboat Waterproof Lead Acid Battery ChargerNegotiableMOQ: 12 Pieces
-
110V or 220V AC Electric Car Intelligent Battery Chargers DC 48Volt 60Volt 72VoltNegotiableMOQ: 12 Pieces
Specifications
1.SMPS battery charger2.Multi protections
3.Life Expectancy: 50,000H at 25 Degree
4.elegant,reliable
5. CE ROHS
Specifications:
size |
344*165*120mm |
net weight |
6.5kg |
max output power |
1500W |
certfication |
CE RoHS |
Features:
1. Full automatic,predict,CC,CV,CP,Segmented timing, A variety of charging mode selection. Communication with BMS. .
2. Precise limit of voltage¤t,guarantee full charged and avoid over charger.
3. Over current, over voltage, short circuit, reverse connect protection, overheating protection, safe and reliable
4. LED display, Aluminum shell, beautiful and strong, Vehicle shock, waterproof grade:IP46
5. Active power factor correction PFC, conversion efficiency > 99%, can realize zero pollution to power network, avoid big current impact on power grid.
6. Intelligent temperature compensation, can avoid lead-acid battery charging process appear overcharge or owe charge causes damage. Can greatly prolong the life of battery.
7.all kinds of production has passed the CE certification. 8.Efficiency: ≥88 %( full capacity)
Looking for a good quality charger with reasonable price ?
contact Alisa Han Now !!!
Jinan E-Shine Electronics Co., Ltd.
Tel:+86 15624552285
Skype:e-shinealisa
Operate Condition:
1.Temperature: -10~45 Degree
2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
3.Life Expectancy: 50,000H at 25 Degree
Apply to:
1. Electrical forklift
2. Electrical motorcycle
3. Electrical tourist-car
Battery Charger for 60v 120ah Electric Car Lithium Battery 60V24A Charger
ESF-1800W(waterproof)Battery charger datasheet | |||||||||
|
No. |
ESF |
Constant voltage |
Constant Current |
Conversion/Cut off |
Weight |
Size |
|||
LA |
Li-Mn |
LiFePo4 |
(Max)A |
LA (A) |
Li(A) |
(kg) |
(mm) |
||
1 |
ESF24 |
29.4V |
29.4V |
29.2V |
50 |
10.0 |
5.0 |
6.5 |
344*165*120 |
2 |
ESF36 |
44.1V |
42.0V |
43.8V |
40 |
80. |
4.0 |
||
3 |
ESF48 |
58.8V |
54.6V |
58.4V |
30 |
6.0 |
3.0 |
||
4 |
ESF60 |
73.5V |
67.2V |
73.0V |
25 |
5.0 |
2.5 |
||
5 |
ESF72 |
88.2V |
84V |
87.6V |
20 |
4.0 |
2.0 |
||
1 |
Full automatic,predict,CC,CV,CP,Segmented timing, A variety of charging mode selection. Communication with BMS. |
||||||||
2 |
Precise limit of voltage¤t,guarantee full charged and avoid over charger. |
||||||||
3 |
Over current, over voltage, short circuit, reverse connect protection, overheating protection, safe and reliable |
||||||||
4 |
LED display, Aluminum shell, beautiful and strong, Vehicle shock, waterproof grade:IP46 |
||||||||
5 |
Active power factor correction PFC, conversion efficiency > 99%, can realize zero pollution to power network, avoid big current impact on power grid. |
||||||||
6 |
Intelligent temperature compensation, can avoid lead-acid battery charging process appear overcharge or owe charge causes damage. Can greatly prolong the life of battery. |
||||||||
7 |
CE&RoHS certified,Safety and Hige Quanlity |
||||||||
Cut-off point Li battery is 5% of CC,and it can be set between 3%-10%. | |||||||||
Battery Charger for 60v 120ah Electric Car Lithium Battery 60V24A Charger

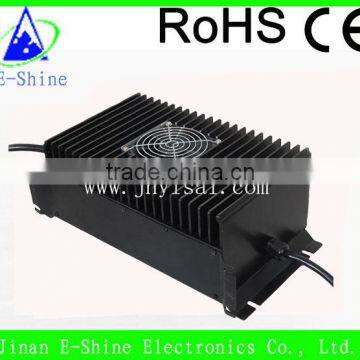

Detail show
