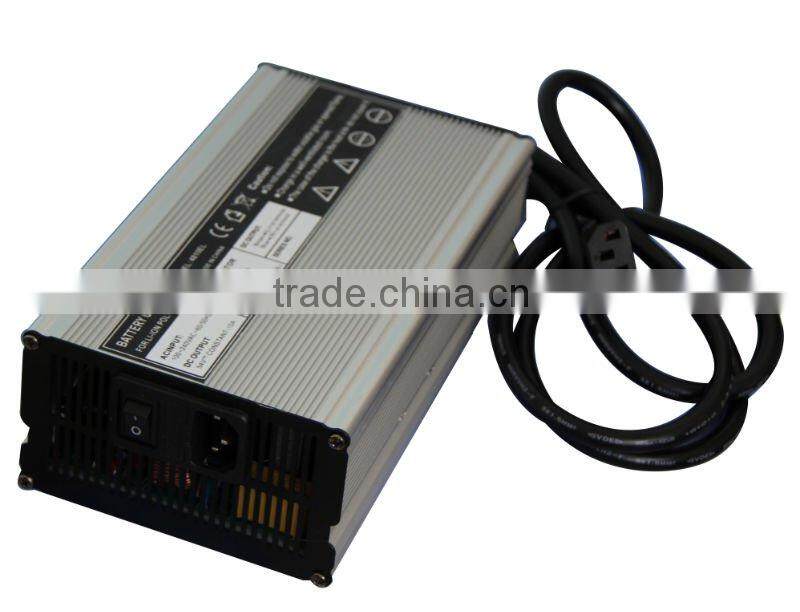

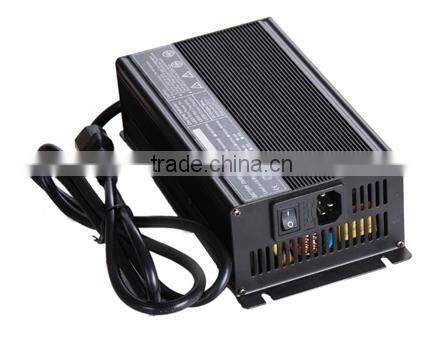

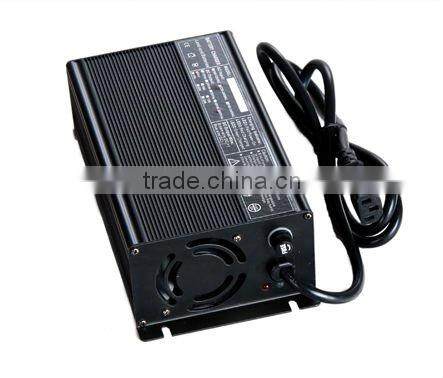

24V15A e-cleaner battery charger(lead-acid/lithium)

Specifications

1.SMPS battery charger
2.small, light,aluminium shell
3.reliable,elegant
4.Efficiency: > 88 %( full capacity)
5.CE ROHS

Specifications:

size	170*90*63mm
net weight	1.2kg
max output power	360W
certfication	CE

    Features:

    1.short-circuit protection,charger current automatically when short-circuit.

    2.overload protection:charger current limited automatically when overload.

    3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse  or remove the fault.

   4.Charge Methods: Constant Current, Constant Voltage( Lithium battery)

                                  CC, CV, Float changing( lead acid battery)

                                  smart control,auto-transition,auto-shut off, no over charge

    5.charging state:two LED display

    oling method:12V fan cooling,temperature control

    7.all kinds of production has passed the CE certification.

    8.Input Votage: 90-264V

    9.Efficiency: ≥88 %( full capacity)

Apply to:

      electric motorcycle,electric stacker, electric washing machine

Output voltage and current:
    12V25A 24V18A  36V12A 48V10A 60V8A
