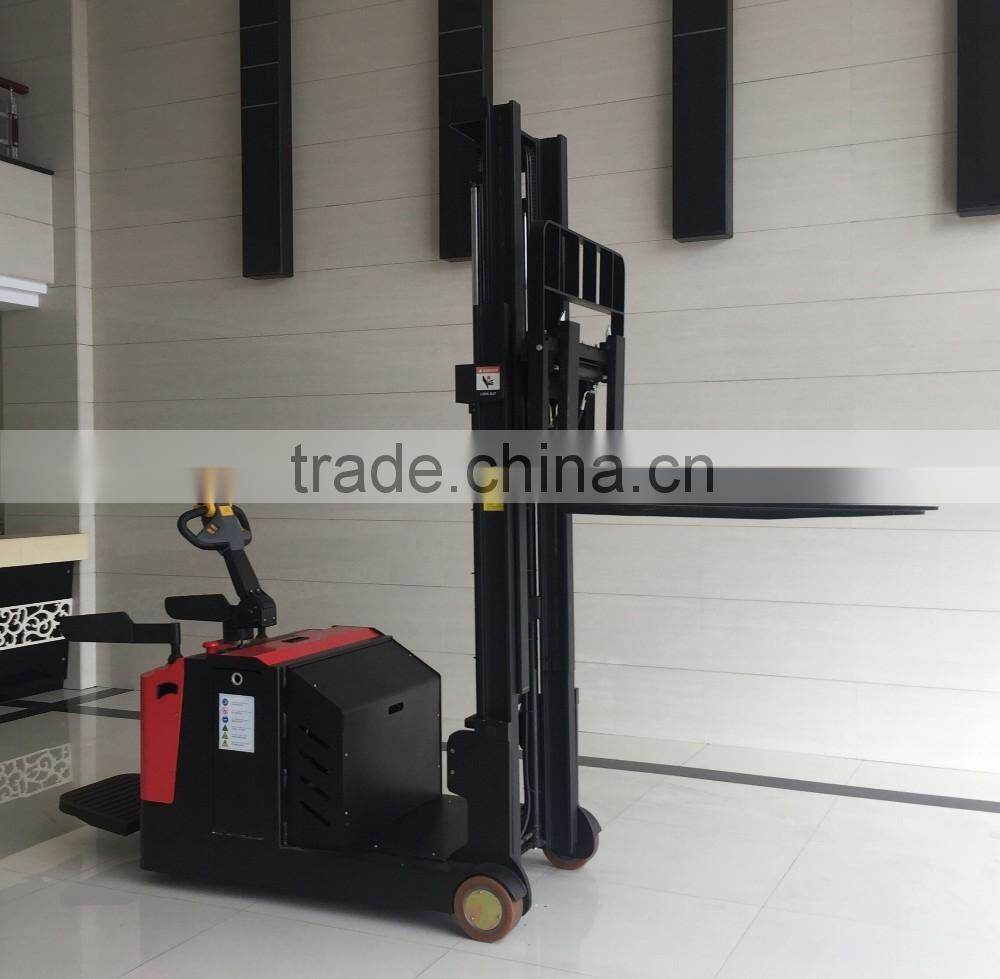

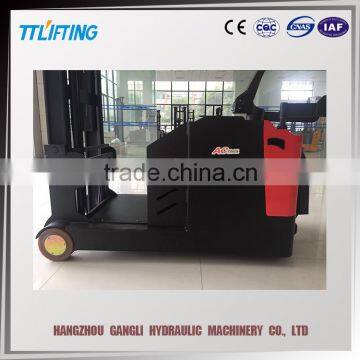

Help CenterCounter Balance Stacker With CE for Sale
Related Products
-
Counter Balance Truck,Counter Balance StackerUS$ 5,100 - 5,500MOQ: 1 Set -
Full Electric Stacker 0.5 Ton With Best PriceUS$ 3,200 - 3,400MOQ: 1 Set
-
Balancing Machine Truck ESB-T05M16US$ 2,860 - 3,000MOQ: 1 Set
-
New Condition Lift Power Stacker With CE 1.6m 2.5m 3mUS$ 3,100 - 3,300MOQ: 1 Set
-
New Model Competitive Price Battery StackerUS$ 3,100 - 3,300MOQ: 1 Set
FEATURE:

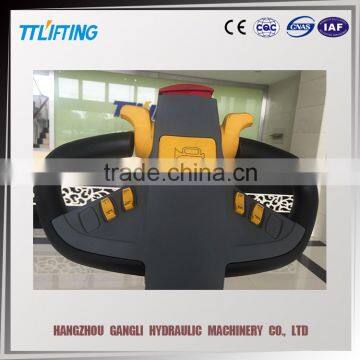

♦ Set up emergency reverse switch operating handles, greatly enhance the safety in the process of driving.
♦ Safe explosionproof valve equipped with the system, can make the goods won't be down rapidly.
♦ Adopt by the large volume battery and vertical driving wheel (or electronic steering drive wheels) drive system.
♦ Imported electronic control system, regenerative braking, counter braking and stepless speed regulation.
♦ Excellent driving wheels, reliable disc braking system, has powerful, stable performance.

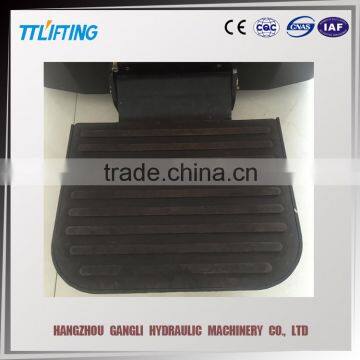

♦ Broad protection arm and stand type nonslip pedal, provide more humanized security protection and comfortable operation.
CONFIGURATION:

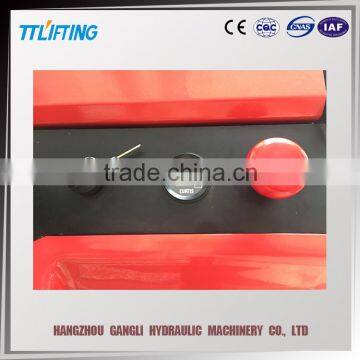

♦ Curtis electric control
♦ Vertical driving wheel (1.5 KW / 2.0 KW ac motor)
♦ With the pedal arm guard
♦ Electronic steering
♦ 24 v / 210 ah battery (optional 270 ah)
♦ 2.2 KW / 3 KW hydraulic pump
♦ Double oil cylinders mast system (three oil cylinders tripe mast system)
♦ With forward and backward (optional sidesway mast )
| Model | ESB1M1.6 | ESB1M2.5 | ESB1M3 | ESB1M3.3 | ESB1M3.5 | ESB1M4 | ESB1M4.5 | |
| Operator Type |
Walkie/ Standing on |
Walkie/ Standing on |
Walkie/ Standing on |
Walkie/ Standing on |
Walkie/ Standing on |
Walkie/ Standing on |
Walkie/ Standing on |
|
| Load Capacity | Q(Kg) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Load Center | C(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Service Weight | kg | 1530 | 1630 | 1730 | 1790 | 1830 | 1900 | 1935 |
| Wheel Material | PU | PU | PU | PU | PU | PU | PU | |
| Front Wheel Size | b2(mm) | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
| Rear Wheel Size | b3(mm) | 124 | 124 | 124 | 124 | 124 | 124 | 124 |
| Lifting Height | h1(mm) | 70-1600 | 70-2500 | 70-3000 | 70-3300 | 70-3500 | 70-4000 | 70-4500 |
| Overall Length | l1(mm) | 3120 | 3140 | 3140 | 3140 | 3140 | 3140 | 32140 |
| Overall Width | b1b2(mm) | 850 | 850 | 850 | 850 | 850 | 850 | 850 |
| Overall height | b11(mm) | 2140 | 1805 | 2055 | 2205 | 2305 | 1880 | 2045 |
| Fork Dimension |
Slell*b5 (mm) |
1070* 200-900 |
1070* 200-900 |
1070* 200-900 |
1070* 200-900 |
1070* 200-900 |
1070* 200-900 |
1070* 200-900 |
| Turn Radius | Wa(mm) | 1430 | 1430 | 1430 | 1430 | 1430 | 1430 | 1430 |
| Body Height | b8(mm) | 860 | 860 | 860 | 860 | 860 | 860 | 860 |
Mast Max Height |
h4(mm) | 2495 | 3425 | 3925 | 4225 | 4425 | 4960 | 5460 |
Aisle Width for Pallet800×1200 |
(mm) |
3070 | 3090 | 3090 | 3090 | 3090 | 3090 | 3090 |
Aisle Width for Pallet1100×1200 |
(mm) |
3120 | 3140 | 3140 | 3140 | 3140 | 3140 | 3140 |
| Driving Speed | km/h | 5/5.3 | 5/5.3 | 5/5.3 | 5/5.3 | 5/5.3 |
5/5.3 |
5/5.3 |
| Lifting Speed | mm/s | 108/147 | 108/147 | 108/147 | 108/147 | 108/147 | 108/147 |
108/147 |
| Lowing Speed | mm/s | 145/80 | 145/80 | 145/80 | 145/80 | 145/80 | 145/80 | 145/80 |
| Driving Motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Lifting Motor | kw | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Battery | v/ah | 24/210 | 24/210 | 24/210 | 24/210 | 24/210 | 24/210 | 24/210 |
| Battery Weight | kg | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
| Battery Dimension | mm | 790*210*576 | 790*210*576 | 790*210*576 | 790*210*576 | 790*210*576 | 790*210*576 | 790*210*576 |
Q:Could you offer more information about the production , and quote a best price?
A: Yes, certainly, we can give some product catalogues, and company profile for your reference. You can
choose one or some models, or let me know the stacker operational environment, and I will advice suitable
model for you, enclosed the price list.
Q: Why don’t you quote immediately?
A: Some customers need non-standard model, we can customize, and need to take some time to
calculate the cost.
Q: The price is a little higher than my target. Can you offer a better price?
A: Yes, we will do our best to calculate a best price,or change quantity,replaced model,other payments,etc.
We can discuss ,and put forward a win-win solution, hope to establish a long term cooperation relationship
with you.
Q:May I purchase one stacker, or place mix order?
A:Yes, of course, one is accepted, and you also can mix different models as you wish.
