Economic Counter Balance Electric Stacker Battery Charger

Economic Counter Balance Electric Stacker Battery Charger thumbnail-1
Economic Counter Balance Electric Stacker Battery Charger thumbnail-2
Economic Counter Balance Electric Stacker Battery Charger thumbnail-3
Economic Counter Balance Electric Stacker Battery Charger thumbnail-4
Economic Counter Balance Electric Stacker Battery Charger thumbnail-5
Economic Counter Balance Electric Stacker Battery Charger thumbnail-6
Economic Counter Balance Electric Stacker Battery Charger photo-1

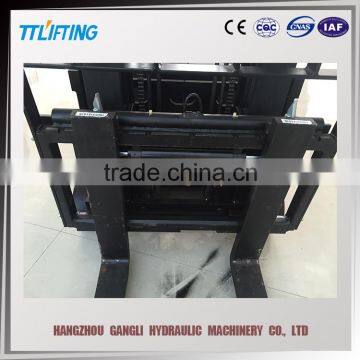

Economic Counter Balance Electric Stacker Battery Charger photo-2

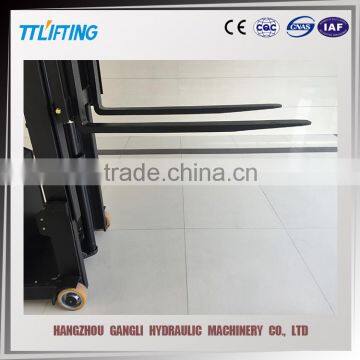

Economic Counter Balance Electric Stacker Battery Charger photo-3
Economic Counter Balance Electric Stacker Battery Charger photo-4
Economic Counter Balance Electric Stacker Battery Charger photo-5
Economic Counter Balance Electric Stacker Battery Charger photo-6
US$ 2,860 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
TTLIFTING
Contact Supplier Request Quote Chat Now
Hangzhou Gangli Hydraulic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name TTLIFTING
Model Number ESB-T05M16
Type Powered Pallet Truck
Power Souce DC Motor
Rated Loading Capacity 500kg
Max. Lifting Height 1600mm
Min. Lifting Height 70mm
Fork Length 800mm
Fork Width 160-650mm
Overall Dimensions 1875*700*2090mm
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Economic Counter Balance Electric Stacker Battery ChargerEconomic Counter Balance Electric Stacker Battery Charger

FEATURE:



♦  Set up emergency reverse switch operating handles, greatly enhance the safety in the process of driving.

♦ Double mast adopts composite mast (forklift channel steel and H type steel), strong and security.

♦ Cylinder adopts high precision and wearproof honing tubes, imported seal, convenient disassembly.

♦  Adopt AC drive system.

♦ High speed, strong carrying capacity, greatly improve work efficiency.

♦ Forks use the standard stacker design fork, adjust freely,can be applied to all kinds of standard or non-standard tray.





 CONFIGURATION:



♦  Curtis electric control

♦  Horizontal permanent magnet motor drive wheels (0.65 KW motor)

♦ 12 v / 80 ah) * 2 colloid power battery

♦  2.2 KW hydraulic pump

♦  Without forward and backward (optional forward and backward)

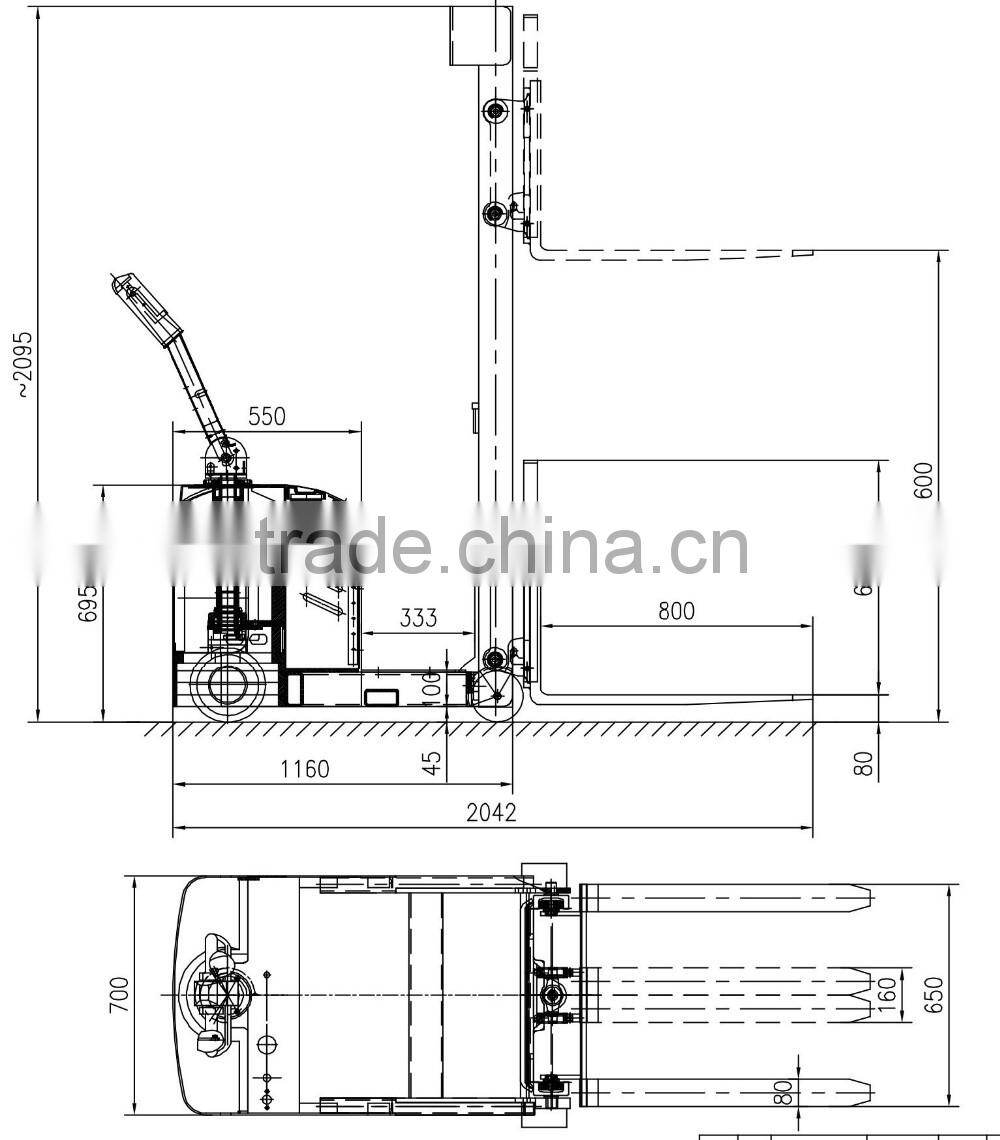

Model   ESB-T05M16 ESB-T05M25 ESB-T05M30 ESB-T075M16 ESB-T075M25 ESB-T075M30
Operator Type

Walkie



Walkie



Walkie



Walkie



Walkie



Walkie


Load Capacity Q(Kg) 500 500 500 750 750 750
Load Center C(mm) 400 400 400 400 400 400
Service Weight kg 900 1100 1200 950 1150 1250
Wheel Material   PU PU PU PU PU PU
Front Wheel Size b2(mm) 150 150 150 150 150 150
Lifting Height h1(mm) 70-1600 70-2500 70-3000 70-1600  70-2500 70-3000
Overall Length  l1(mm) 1875 1895 1895 1975 1995 1995
Overall Width b1b2(mm) 700 700 700 700 700 700
Overall height b11(mm) 2090 1750 2000 2090 1750 2000
Fork Dimension

Slell*b5

(mm)

800*

160-650

800*

160-650

800*

160-650

800*

160-650

 800*

160-650

800*

160-650
Turn Radius Wa(mm) 980 980 980 980 980 980
Body Height b8(mm) 695 695 695 695 695 695

Mast Max Height

 h4(mm) 2285 3200 3700 2285 3200 3700
Driving Speed km/h 2.5/3.0 2.5/3.0 2.5/3.0 2.5/3.0 2.5/3.0
 2.5/3.0
Lifting Speed mm/s 95/110 95/110 95/110 95/110 95/110 95/110
Lowing Speed mm/s 145/80 145/80 145/80 145/80 145/80 145/80
Driving Motor kw 0.65 0.65 0.65 0.65 0.65 0.65
Lifting Motor kw 2.2 2.2 2.2 2.2 2.2 2.2
Battery v/ah 12/80*2 12/80*2 12/80*2 12/80*2 12/80*2 12/80*2
Battery Dimension mm (260*169*215)*2 (260*169*215)*2 (260*169*215)*2 (260*169*215)*2 (260*169*215)*2 (260*169*215)*2



 Economic Counter Balance Electric Stacker Battery Charger

Economic Counter Balance Electric Stacker Battery Charger





Economic Counter Balance Electric Stacker Battery Charger



Economic Counter Balance Electric Stacker Battery ChargerEconomic Counter Balance Electric Stacker Battery ChargerEconomic Counter Balance Electric Stacker Battery Charger

Economic Counter Balance Electric Stacker Battery ChargerEconomic Counter Balance Electric Stacker Battery ChargerEconomic Counter Balance Electric Stacker Battery Charger

Economic Counter Balance Electric Stacker Battery Charger

Q:Could you offer more information about the production , and quote a best price?

A: Yes, certainly, we can give some product catalogues, and company profile for your reference. You can

choose one or some models, or let me know the stacker operational environment, and I will advice suitable

model for you, enclosed the price list.

Q: Why don’t you quote immediately?

A: Some customers need non-standard model, we can customize, and need to take some time to

calculate the cost.

Q: The price is a little higher than my target. Can you offer a better price?

A: Yes, we will do our best to calculate a best price,or change quantity,replaced model,other payments,etc.

We can discuss ,and put forward a win-win solution, hope to establish a long term cooperation relationship

with you.

Q:May I purchase one stacker, or place mix order?

A:Yes, of course, one is accepted, and you also can mix different models as you wish.



Economic Counter Balance Electric Stacker Battery Charger
