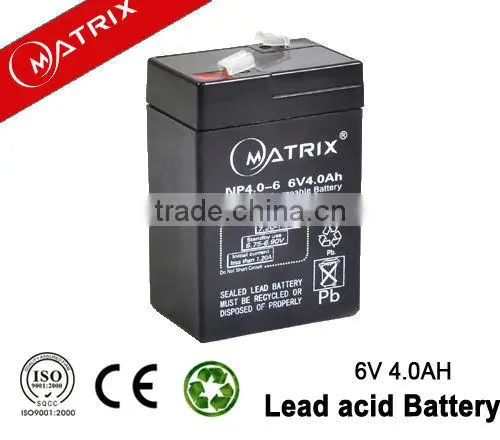

6V 4AH power storage battery for 5W solar light system
Detail Specifications:
* Model: NP4-6
* Nominal Voltage: 6V
* Rated Capacity: 4Ah(20Hr)
* Dimension: 70(L)*47(W)*101(H)*101(TH)mm
* Approx Weight: 0.7Kg/pcs
* Packing Detail: 25PCS/CTN
* Loading Quantities: 20'FT=28000PCS
Main Features:
1.Low selfdischarge: lower than 3% of rated capacity per month under normal operating temperature
2.ABS case (can be made with flame retardant V0)
3.No memory effect after repetitious usage or discharges
4.Maintenance-free operation
5.Sealed construction and leak proof
6.Safety valve regulated system
7.Operating in any position
8.Deep discharge recovery
9.Wide operating temperature range
Applications:
1.Power transmission and transformer station, switch control
2.Fire fighting, safety device and alarm monitoring
3.Aviation, spaceflight and power storage
4.Automatic office system
5.Radio communication system
6.Emergency lighting and car and ship starting system
7.Portable electric appliances and mining system
Our advantages :
1.Competitive prices with reliable quality.
2.Adopting high quality PP plastic for battery case, stronger and heatproof.
3.Plates made of high purity lead 99.994-99.996% dry charged battery
4.High quality AGM separator, pure acid
Specification:
| Nominal Voltage | 6V | |
| Rated capacity(20 hour rate) | 4.0AH | |
| Dimensions | Length | 70±1mm(2.76inches) |
| Width | 47±1mm(1.89inches) | |
| Height | 101±1mm(3.98inches) | |
| Total Hight | 107±1mm(4.21inches) | |
| Weight Approx | 0.7Kg(1.54lbs) | |
| Capacity 25°C(77°F) | 20 hour rate(0.20A, 5.25V) | 4.00AH | |
| 10 hour rate(0.37A, 5.25V) | 3.70AH | ||
| 5 hour rate(0.68A, 5.25V) | 3.40AH | ||
| 1 hour rate(2.40A, 4.80V) | 2.40AH | ||
| Internal Resistance | Full charged Battery at 25 °C (77°F) |
25mΩ | |
| Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Charge (constant voltage) |
Cycle | Initial Charging Current less than 1.20A Voltage Charge 7.20~7.50V |
|
| Float | Voltage 6.75~6.90V | ||
| Terminal | T1 | ||
Advantages :
1.Competitive prices with reliable quality.
2.Adopting high quality PP plastic for battery case, stronger and heatproof.
3.Plates made of high purity lead 99.994-99.996% dry charged battery
4.High quality AGM separator, pure acid
