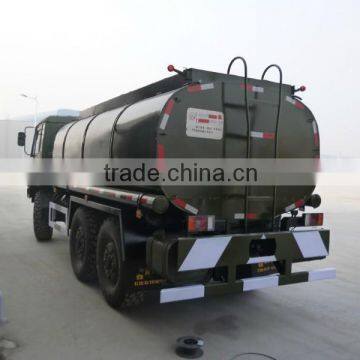

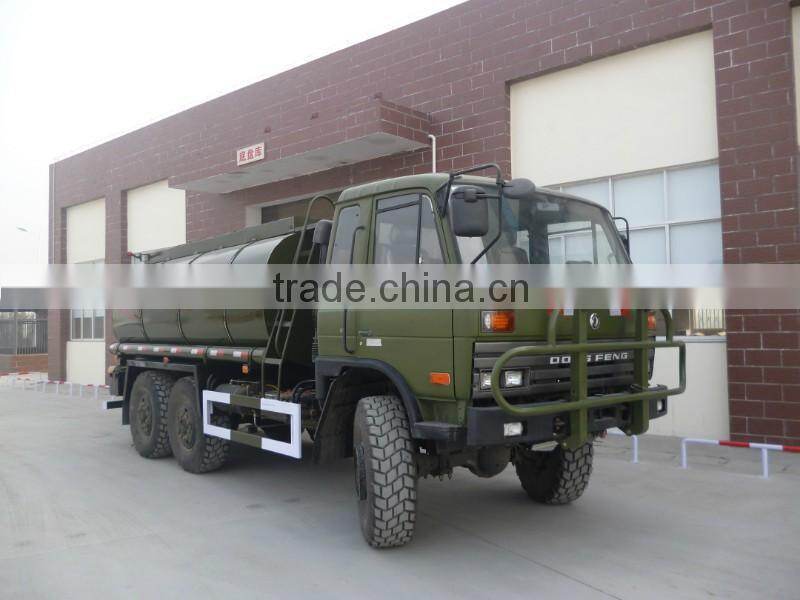

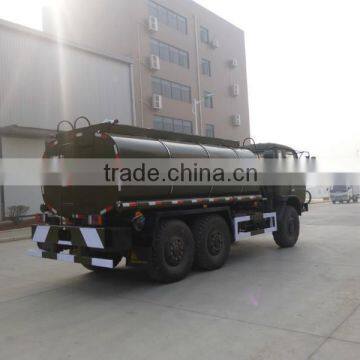

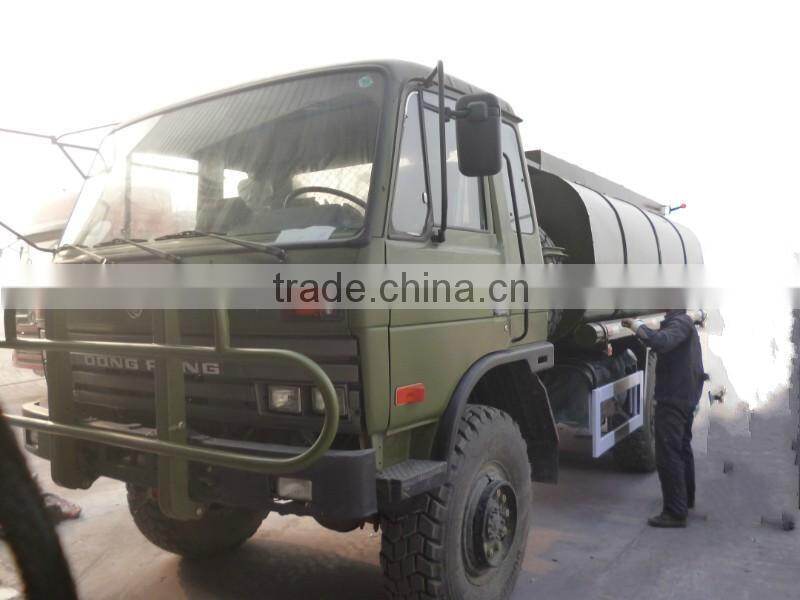

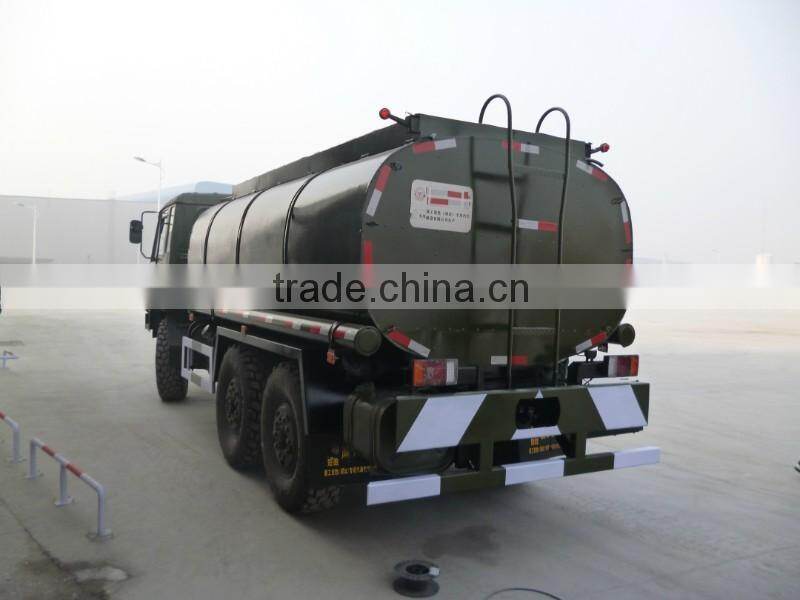

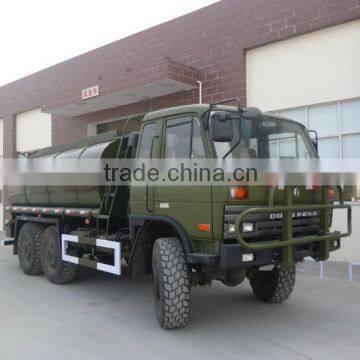

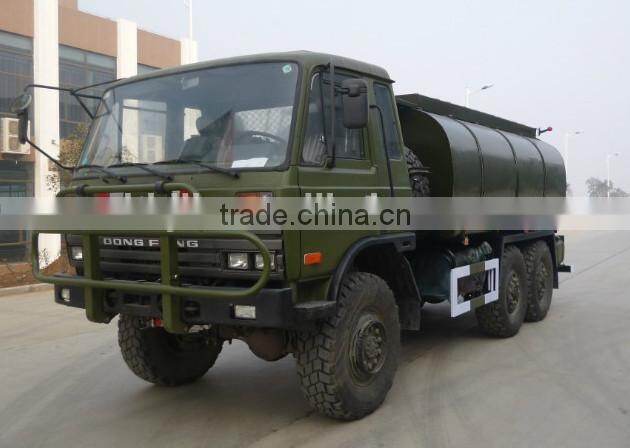

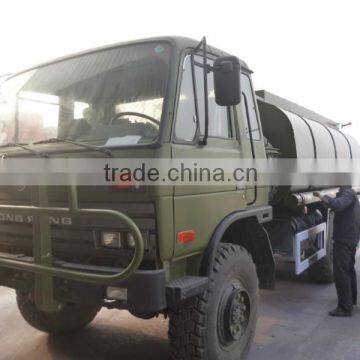

EQ5120G Dongfeng 6x6 off road fuel tank truck lwu

Model

EQ5102G Dongfeng 6x6 fuel tank truck

Chassis Model /Manufacturer

EQ2102GJ

Dimension

Overall Dimension

L×W×H  mm

7760*2490*2990

tank size

L×W×H  mm

4800*2300*1330

Weight

Total Mass

Kg

17,130

load capacity

Kg

10,000

Kerb Weight

Kg

6,905

Chaissis

Weight parameter(kg)

Loading capacity

off-road driving

3500

Highway driving

5000

Max. Towed mass (off road driving)

4800

curb weight

6725

total mass

off-road driving

10435

Highway driving

11935

Empty

front axle-load

3145

front axle-load

3580

Full load

(off road driving)

front axle-load

3565

Rear axle-load

6870

performance parameter

Max speed (full load without trailer)(km/h)

90

max gradeability((full load without trailer)(%))

<60

Min turning diameter(m)

every hundred kilometers oil consumptions (L)

26.5

braking length (full load,30km/h)

>8

driving distance (km)

700

Engine

Model

6BT5.9

Rated Power

Kw/hp

118kw/160hp

Manufactuer

Dongfeng

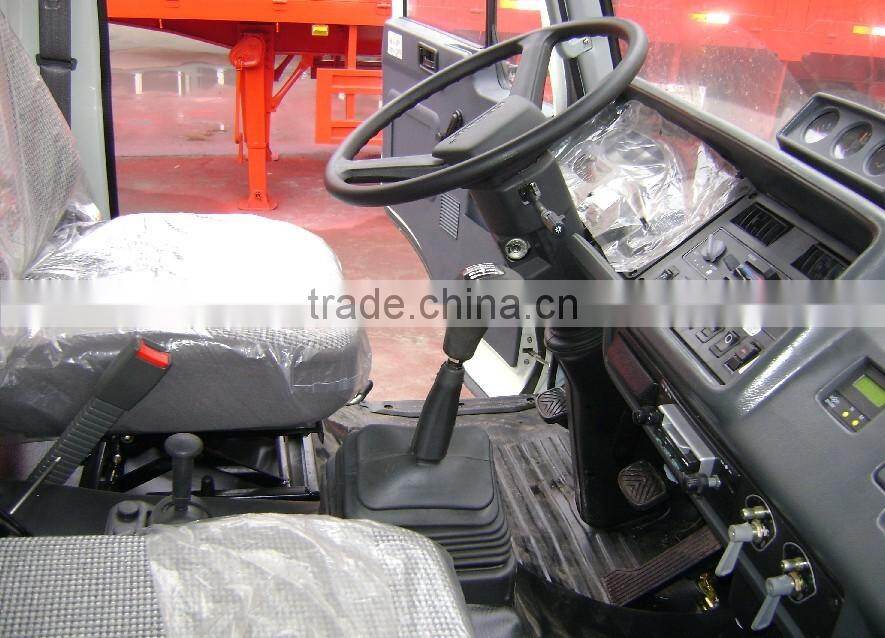

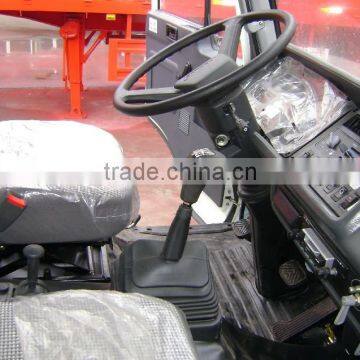

Cab

Manual operated door windows

With A/C

AM/FM radio

Transmission box

Manual

Driving type

6*6

Type & Size of Tyre

9.00-20

Number of type

6+1(spare wheel )

Wheel Base

mm

4100

Approach/departure angle

°

42.5/26

Front/Rear suspension

mm

1065/1590

Number of leaf spring of suspension

piece

9/11+8

Front/Rear track

mm

1876/1870

Tank body

10cbm

5mm thinckess of tank body carbon steel plate

Equip separators (baffle) to prevent surging of liquid towards head

With famous gear pumps
