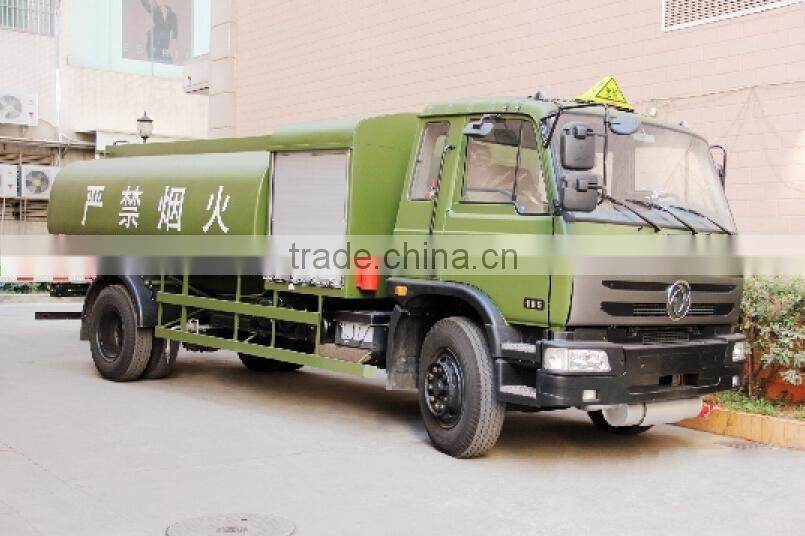

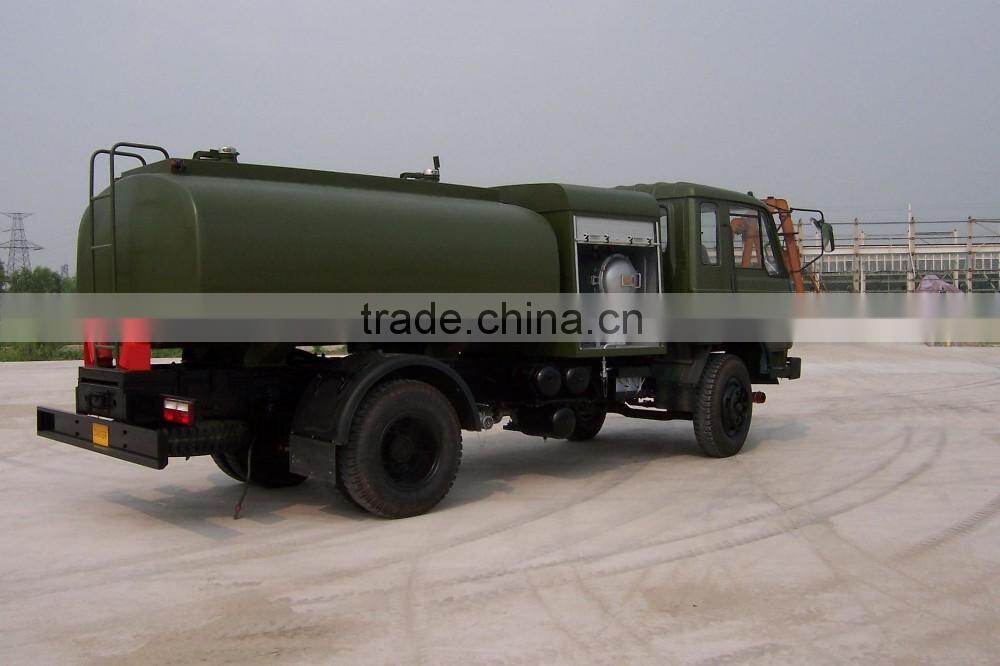

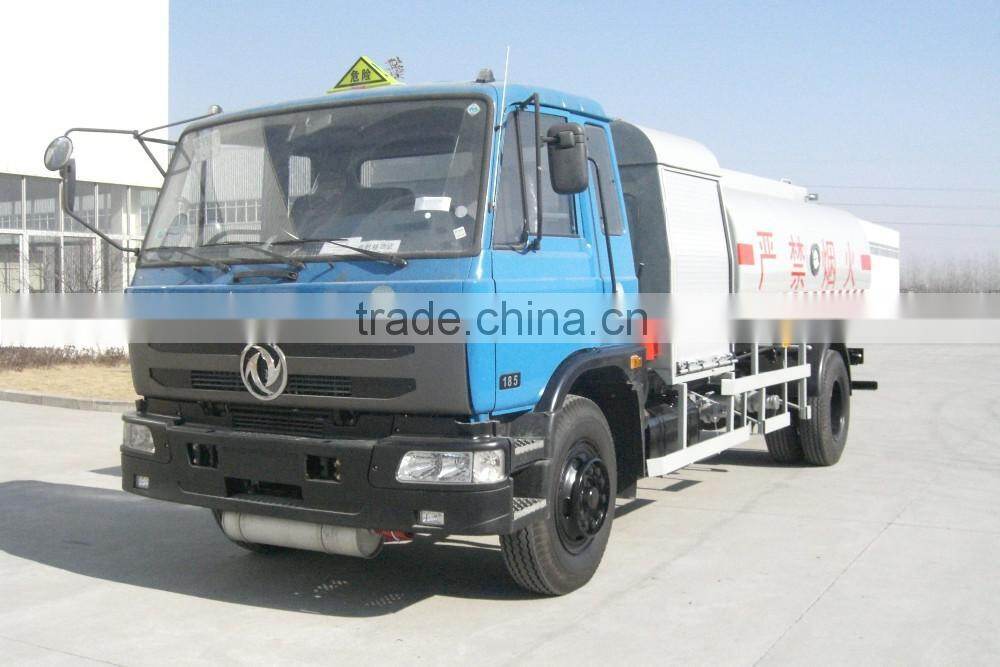

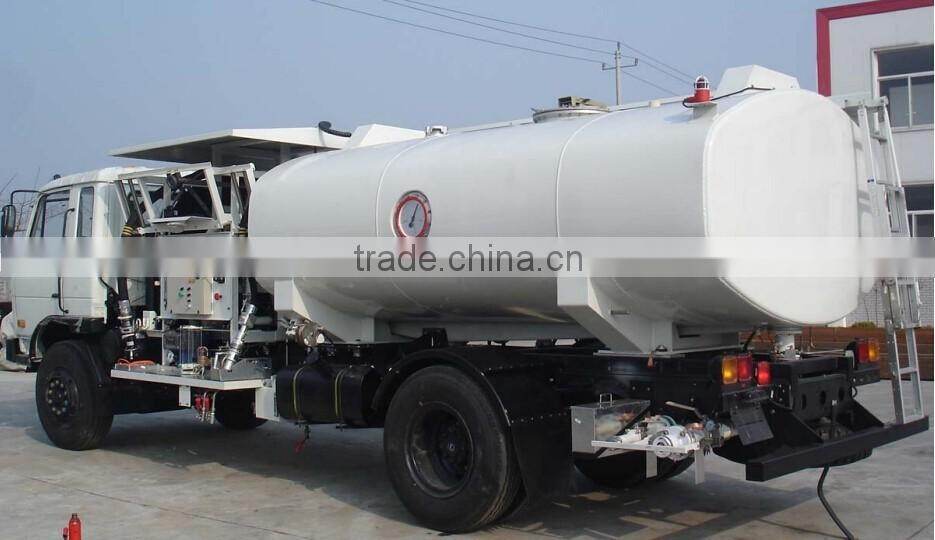

Dongfeng EQ5141G 4x2 aircraft fuel tank truck
Valves in the control surfaces, easy manipulation
Gravity refueling reel, Φ38 grease guns, automatic spring winding
3 with a differential pressure gauge monitors filter use state
4 static grounding reel with spring winding
Pump oil system and a pressure relief valve, automatic pressure release tube, to prevent damage to components
The bottom of the oil loading and high level control
Set the float level gauge for easy observation tank fuel reservoir
Pipe flange connection with conductive copper wire, to prevent the buildup of static electricity
Product main parameters:
Dimensions (L x W x H, mm) 9380 × 2470 × 2760
Maximum total mass (KG) 18020
Rated contained mass (KG) 9600
Curb weight (KG) 8225
The Chassis Type Dongfeng 4 × 2 chassis
Wheelbase (mm) 5000
Minimum turning diameter (m) 20
Tank rated capacity (L) 12000
Tank material stainless steel
Meter Accuracy ± 0.2%
The pressure refueling largest flow (L / min) 800
The gravity refueling largest flow (L / min) 300
Pumping the maximum flow rate (L / min) 200
Maximum flow (L / min) 1500 oil loading
The pressure refueling hose length (m) 20
The gravity refueling hose length (m) 12
Filter separator filter fuel performance in line with API / IP 1581 5th requirements
The refueling pressure control end
Operating brake interlock
DedaMan control
Civil Aviation production license
High-level control
Remarks : import flowmeter or domestic flowmeter
More detail information please contact us.
