Shenhu Automatic pasta dentifricia box packing machine(manufacturer)
- 50 Piece / Pieces per Month
- shanghai
- Credit Card PayPal
- Shenhu Automatic children's toothpaste box packing machine (best quality)
- Shenhu Automatic Orajel box packing machine(factory supply)
- Shenhu Automatic toothpaste box packing machine (made in China)
- Shenhu Automatic Tooth-paste box packing machine
- Shenhu Automatic kinder-zahngel box packing machine (made in China)
- Shenhu Automatic dental cream box packing machine(0086 13524508515)
Product Details
Condition: | New | Application: | Beverage, Chemical, Commodity, Medical | Packaging Type: | Other, Box |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V/380V 50HZ | Power: | 1.5kw | Place of Origin: | Shanghai, China |
Brand Name: | SH | Model Number: | SH-100 | Dimension(L*W*H): | 3500*1350*1650mm |
Weight: | 1200kg | Certification: | CE SGS ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden cases for export
Product Description
Shenhu Automatic pasta dentifricia box packing machine
This machine is a high-tech product which adopts integration of light, electricity, and air.

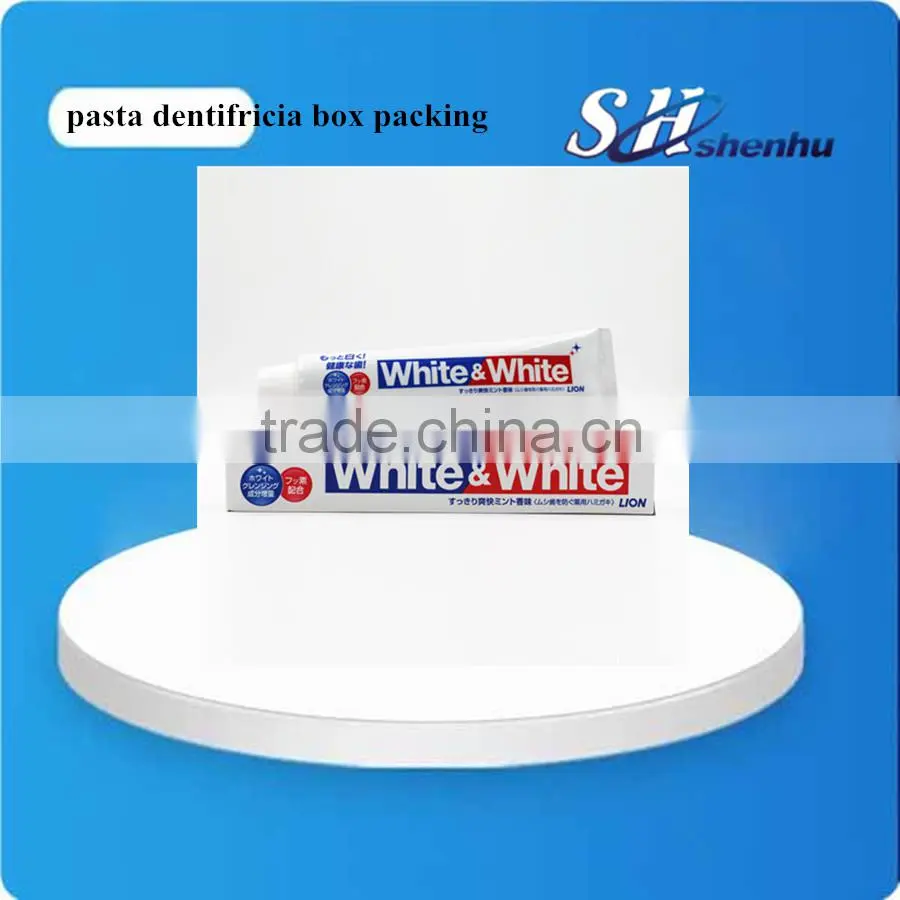

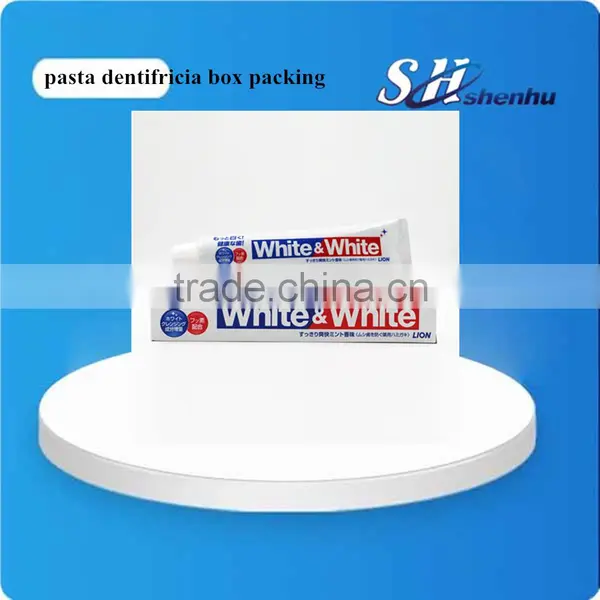

It is Maiy used for Comestic Industry:Comestic tubes,tooth-paste, Shoe polish ,hand protect cream
andother comestic products and so on .

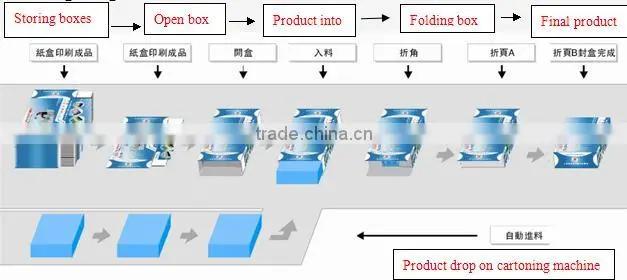

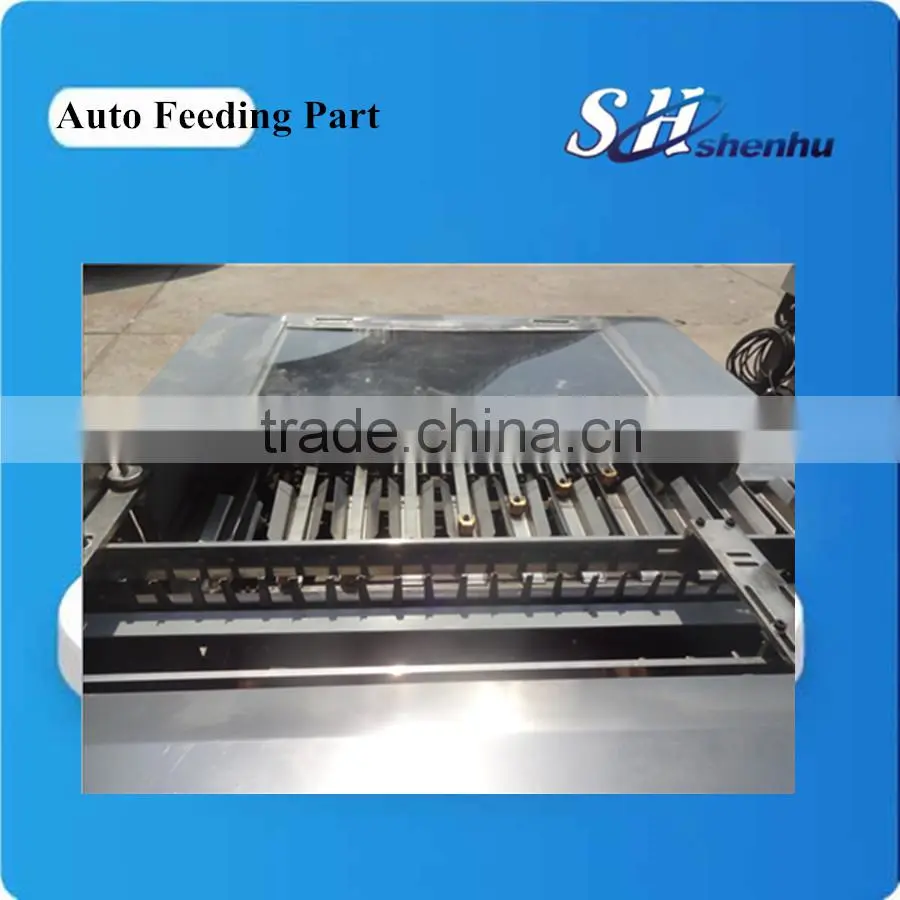

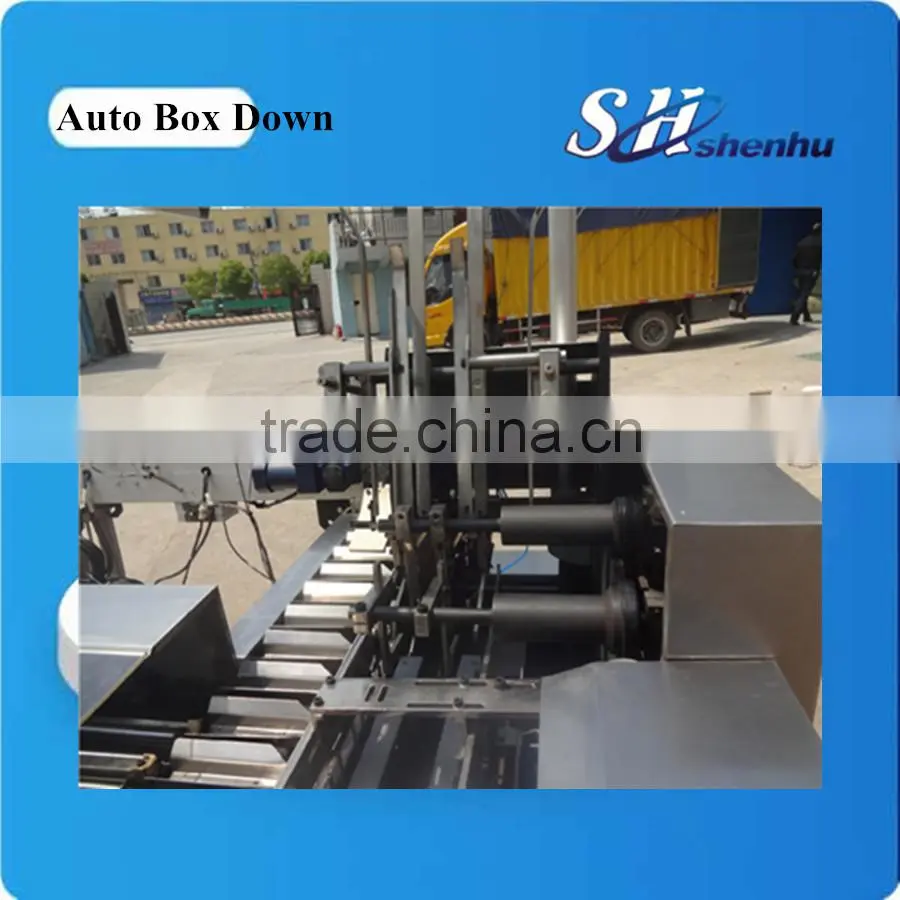

Manual put the tubes,.automatic boxes forming and convey, feed the pen into box, batch number printing,
sealing of box tongues at both ends etc. The whole encasing process is finished automatically.
It can be added to hot-glue machine.and ink-jet printing machine, hot shrink packing machine.

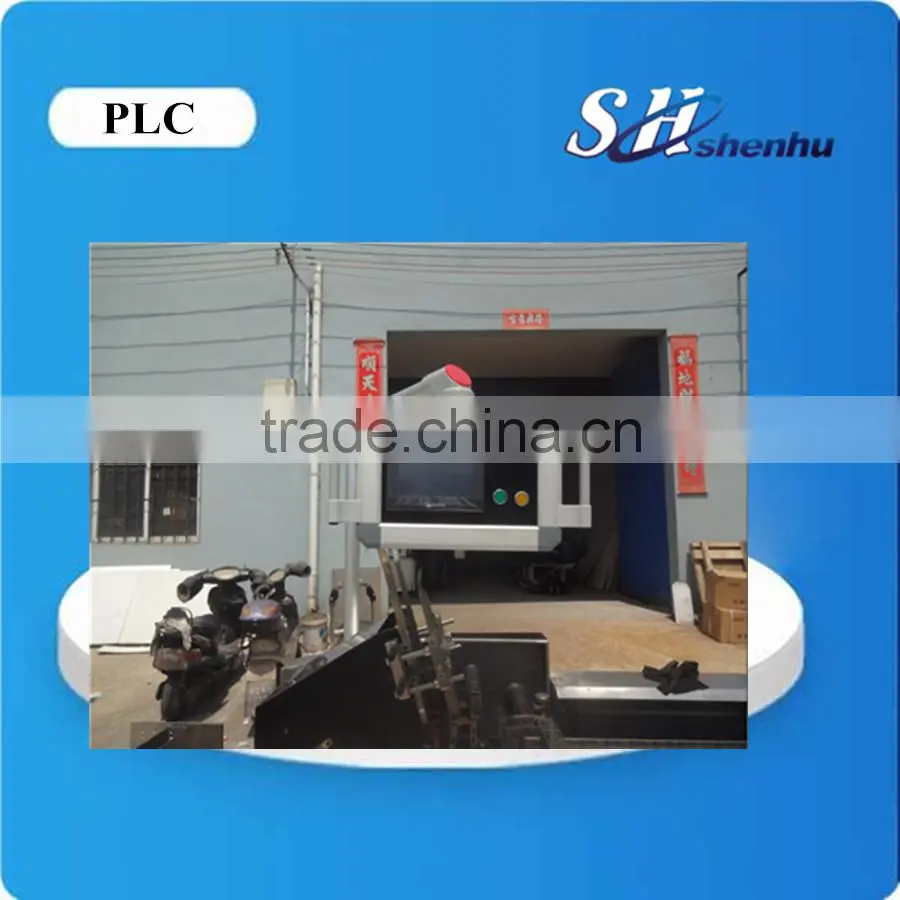

1. PLC automatically control,frequency control speed,touch screen exactly showing theoperation and production,operators can change parameters in time
according the packing requirement for products;
2.It can alarm automatically,if mistake operate,the machine stop running automatically,if the value exceed or under setting parameter,the machine will alarm automatically,besides,
it can automatically display malfunction, cartoning speed and finished products counting;
3.Automatically check the neglected cartoning and waste picked out for products and leaflet;
4.It is easy to understand and operate, work stably.
5.It doesn’t inhale leaflet without products and dosen’t inhale box without leaflet.
6.It idles and doesn’t push products if there is no products or products supplydoes not reach the designated position. Machine will work automatically with reinstatement of
products supply
7.It stops automatically if there is no box or continuous no leaflet.
8.It is easy to replace different products.
9.There is overload protection device for main drive.
10.The machine can be used alone,besides,it can be linked to work with blister packing machine,
bottle filling machine and heat shrink packing machine.

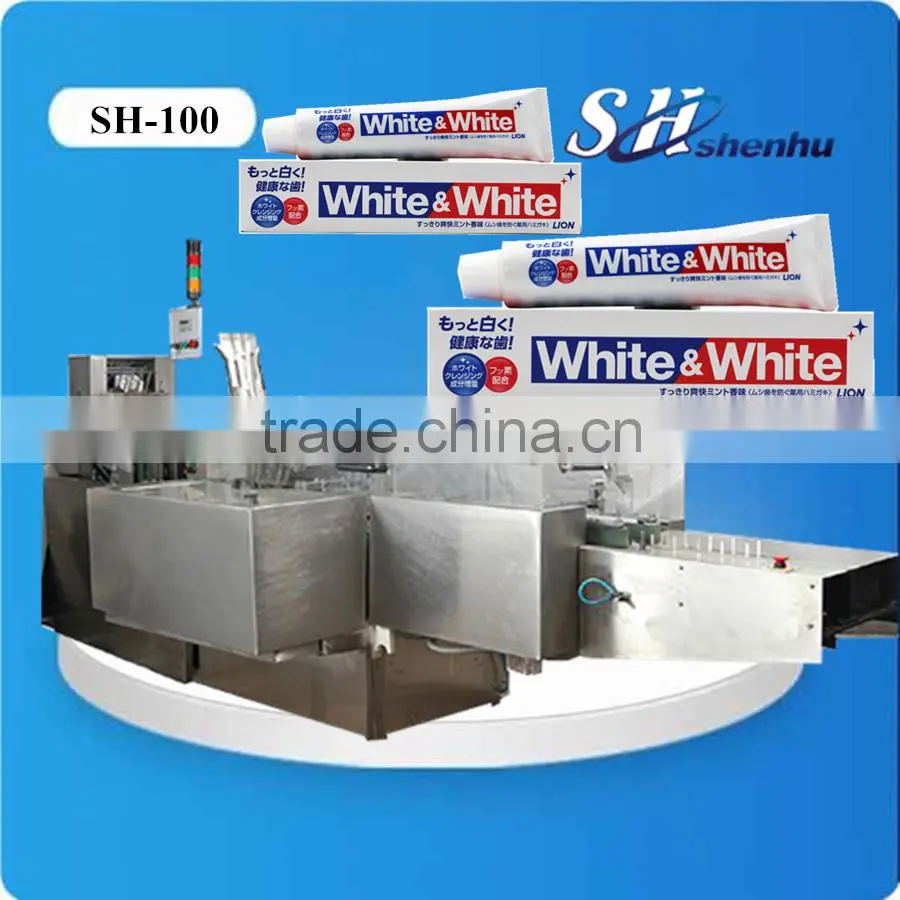

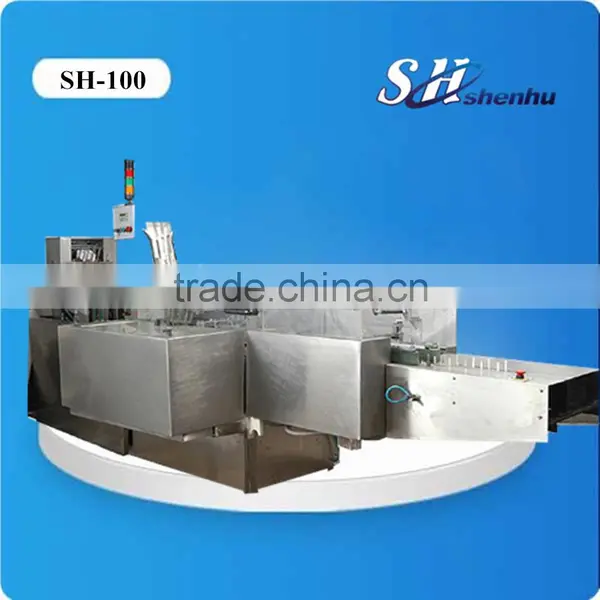

Model | SH-100 |
Packing speed | 50-120cartons/min |
Machine size | 3000*1550*1560mm |
The size of carton | Min.50*20*14mm Max.250*150*80mm |
The material of carton | white card 250-350g/m2 gray card 300-400g/m2 |
Compressed air pressure | >=0.6Mpa/<=0.3Mpa |
Totall power | 2.0kw |
Main motor power | 1.5kw |
Machine weight | about 1200kg |
Code | Name | Type and Specification | Made in | Quantity |
PLC | VH20MR | TaiWan Vigor | 1 | |
Touch screen | TK6070IQ | TaiWan WEINVIEW | 1 | |
Frequency transformer | 3G3JZ-A4015 |
| 1 | |
light sensor | E3Z-D61 |
| 1 | |
Motor | CH-1500-10S 1.5KW | Taiwan Taiqi | 1 | |
Button | XB2 | France Schneider | 3 | |
Emergency stop | ZB2 BC4D | 1 | ||
relays | MY2 NJ24V | Japan Omron | 4 | |
Solenoid valves | 4V210-08 | STNC | 2 | |
air vent valve | AR-2000 | 1 | ||
Proximity switches
| LJ12A3-BZ | Made in China | 2 | |
vacuum chuck | HT-40 | Homemade | 2 | |
vacuum generator | XQ181150C | SMC | 1 | |
AC contactor | CJX2-0910M | Schneider | 1 | |
switching power supply | NES-50-24 | TaiWan Mean Well | 1 | |
Air switch
|
| SMC | each1 | |
Encoder | E6B2-CWZ6C | Shanghai | 1 | |
Out shell | Stainless steel | Shanghai | 1 set | |
Bearing |
| ShanDong | 200 |
Company Profile
Profile
Incorporated in the year 2008, Shanghai Shenhu Packaging Machinery Equipment Co.,Ldt is a small and medium size manufacturer and exporter with a wide range of precision machineries. Our range of products includes tube(cream) filling machines, bottle(liquid) filling machines, cup filling machines,food packing machines, carton machine, vacuum packing machine, sealers and cappers etc.
Our company has achieved notable growth and has become a progressive supplier of new generation packaging machines in China. Steered by a futuristic vision, we invest judiciously in building resources and execute day to day business operations with higher level of professionalism and efficiency.
We are a market savvy company, with a customeroriented quality deliverance approach that guides us to provide customized packaging machinery for specific packaging processes. Our prime focus is to create maximum utility and offer value for money to our customers. Hence, we make every effort to understand client's business and accordingly procure machines that meet their specific requirement to the fullest. Our prime motive is to play a crucial role in assisting clients to expand their business profits.
Combining years of experience, we have made a strong presence in domestic market. In our endeavor to achieve complete customer satisfaction, we offer our clients products and services of quality that is second to none in the industry.
Industries We Serve
Our machines meet with the packaging requirement of industries such as Pharmaceutical,Cosmetics,Chemicals,Food and so on,
Quality
We are a quality concerned company with a sole objective to deliver best packaging machinery.These are quality certified manufacturing units, which follow industry defined standards in product engineering. Thus, the different types of packaging machines offered by us are in accordance with international standards of functionality and reliability. The machines are supplied to clients along with the warranty papers and operational and maintenance manuals. We ensure to deliver machines in absolute factory condition.
After Sale Service
In order to keep our machines working smoothly, we offer timely after sales services. For our after sales services, we have a team of servicing engineers and experts. Our effective and prompt after sales service keeps our machines working effectively for longer duration.
Why Us
Some of the prime advantages that we have in the industry are Wide range of product catering to various industries Modernized infrastructure equipped with state of the art machinery Regular improvement in our product range High end client satisfaction Qualified and well trained team of workforce Widespread client are all over the world.
We are not the best,but we want to be better!
